• Model NO.：GYRC-60
• Weight Kgs(Lbs)：300(660)
• Dimension(L*W*H)：1.31m*0.82m*1.12m
• Drum Diameter：60*38cm,23*15inch
• Frequency：4100vpm,70Hz
• Water Tank Capacity：25L
• Transport Package：Wooden Carton
• Trademark：GEYO
• Origin：China
• HS Code：8479102100
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GYRC-60 Weight Kgs(Lbs) 300(660) Dimension(L*W*H) 1.31m*0.82m*1.12m Drum Diameter 60*38cm/23*15inch Frequency 4100vpm/70Hz Water Tank Capacity 25L Transport Package Wooden Carton Trademark GEYO Origin China HS Code 8479102100 Production Capacity 1000PCS/Month

Product Description

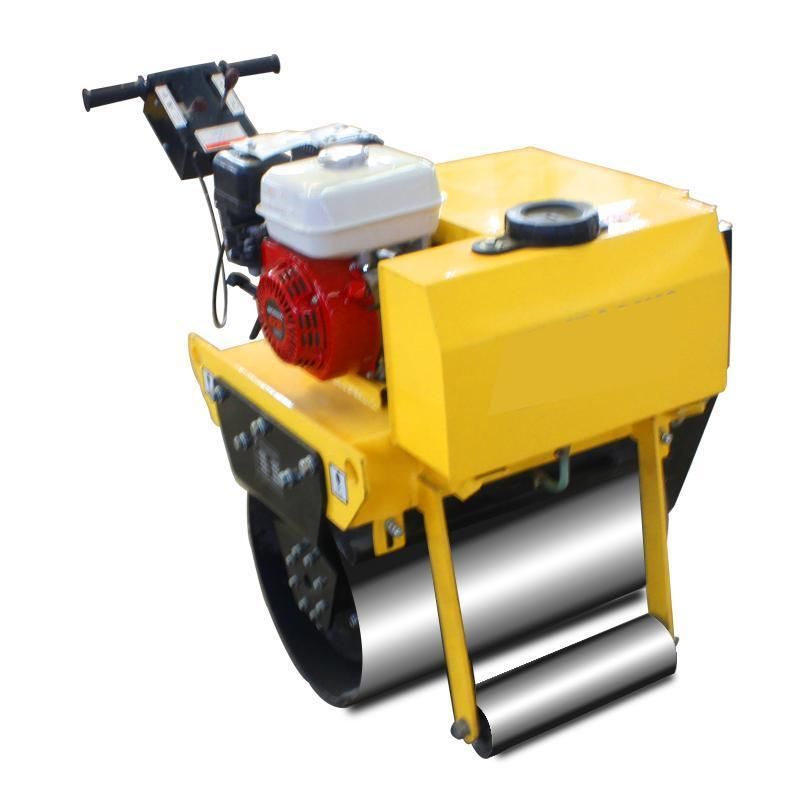

4.0kw/5.5hp Honda GX160 Engine Single Drum Road Roller GYRC-60


Features:
1)Honda 4-stroke GX160 Engine(or Robin EX17) is easy to start,assuring quality and superior performance.
2)Easy reach controls for operator comfort
3)Ergonomically designed height-adjustable handle adopts plane gear mechanism,provides maximum comfort and easy transport for operators of different heights
4)Self-cleaning scrapers prevent the build-up of dirt
5)Beveled drum edge eliminates markings on surface
6)Side and curb clearance allow for a closet approach to pavement, wall, curb and other obstacle
7)Compact design for easy handling in confined areas
8)Thick drum shells for longer drum life
9)Large corrosion-free water tank makes it possible for filling,disassembly and cleaning without tool
10)Fully hydraulic system provides infinitely variable working speed for travel and vibration, eliminating the need for regular periodic adjustments and changes compared to chain driven rollers require.
11)Built-in cooling fan is designed for longer life and continuous operation
12)The sprayed surface is beautiful,rust-proof and corrosion resistant.

Specification:

Model	GYRC-60
Engine Type	Honda GX160
Power kw(hp)	4.0(5.5)
Weight kg(lbs)	300(660)
Drum Diameter cm(in)	60*38(23*15)
Centrifugal Force kN	15
Frequency vpm/hz	4100(70)
Travel Speed km/hr	2.5
Water tank Capacity L	25
