• Model NO.：XN12
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.025cbm
• Size：Small-Scale
• Certification：CE
• Condition：New
• Engine Power：10kw
• Transport Package：2770*896*1490 Mmmm
• Specification：1040kg
• Trademark：sinomada
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. XN12 Drive Type Internal Combustion Drive Bucket Capacity 0.025cbm Size Small-Scale Certification CE Condition New Engine Power 10kw Transport Package 2770*896*1490 Mmmm Specification 1040kg Trademark sinomada Origin China Production Capacity 50000PCS/Year

Product Description

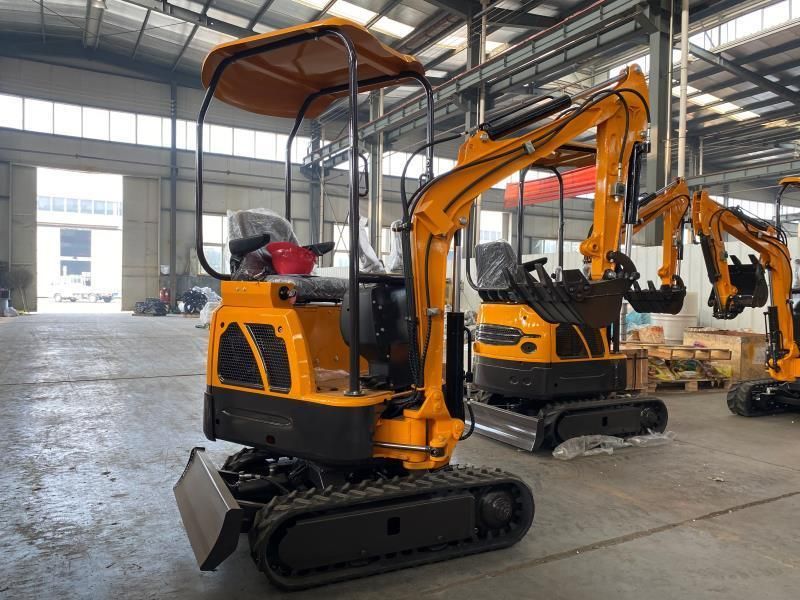

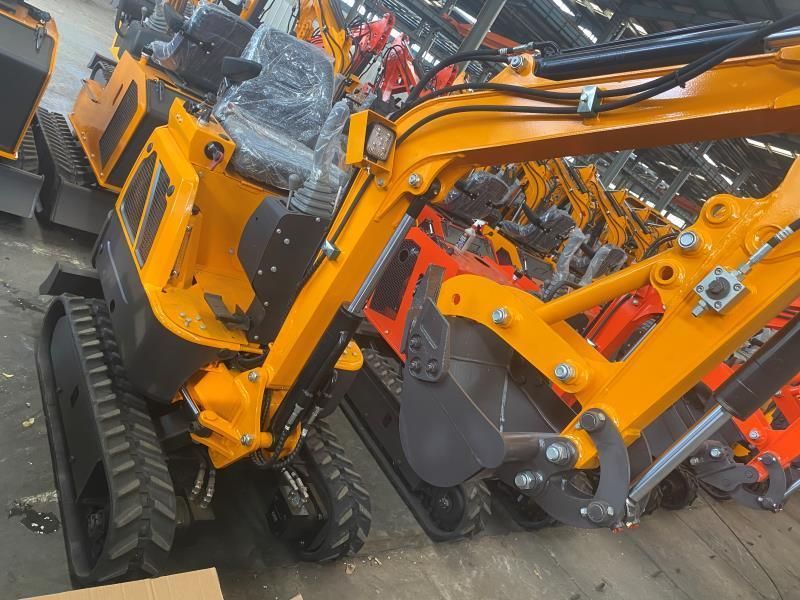

XN12 Mining Excavator Mini Excavator XN12: 15HP, 1150kg, 0.025 cbm bucket, digging deapth:1500mm. The engine can meet USA EPA Tier 4 and Europe EURO V emission standard. Also can equip with Auger, Wood Grab, Roof, Ripper, Rake,200mm Narrow Bucket, 380mm Standard Bucket, 500mm Leveling Bucket

Model	XN12	MAIN DEMENSIONS
Manufacturer		Overall dimension( LxWxH)	2770x896x1490 mm
Brand	RHINOCEROS	Total length of track	1230mm
Operating Weight	1040kg	Platform ground clearance	380 mm
Digging bucket capacity	0.025cbm	Platform back turning radius	784 mm
Bucket width	380mm	Chassis width	896 mm
Engine	Yanmar engine 3 cylinders	Track width	180 mm
Rated power	10 kw/2200r/min	Chassis ground clearance	132 mm
Displacement	0.211 L	Track height	320 mm
Bore stroke	70x55	Diesel tank capacity	10 L
Main pump	ZANEDA	Hydraulic oil tank capacity	16L
Displacement	6.8ml/r	OPERATING RANGE	16L
Hydraulic system pressure	16 Mpa	Max. Digging depth	1650 mm
Swing motor	SJ-TECH (MP-1-160)	Max. Digging height	2610 mm
Traveling motor	KERSEN (OMS-2450)	Max. Dumping height	1850 mm
Travel speed	1.5km/h	Max. Digging radius on ground	2850 mm
		Min. Rotation radius	1330 mm
		Max. Upgrade height of bulldozer blade	345 mm
		Max. Digging depth of bulldozer blade	255 mm
