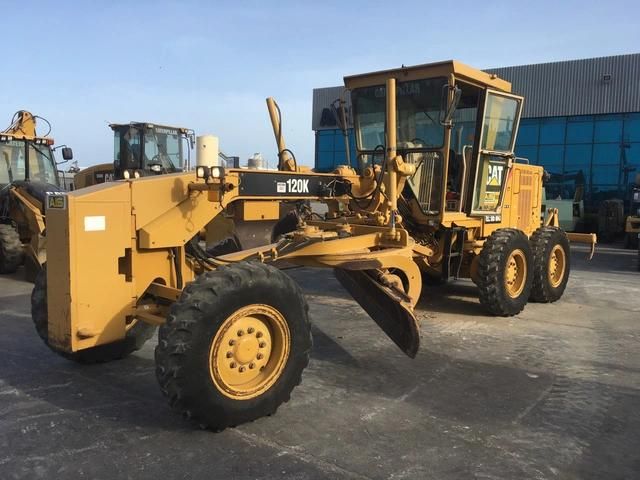

• Model NO.：120k
• Specification：6900x1950x3200MM
• Trademark：Caterpillar
• Origin：Jiangsu, China
• Production Capacity：500

PRODUCT SPECIFICATION

Overall dimension

LxWxH

mm

6900x1950x3200

Min.ground clearance of front axle

mm

450

Ground clearance of rear axle

mm

410

Wheel tread

mm

1590

Wheelbase (front/rear)

mm

4950

Engine

Band

Yuchai

Model

YCD4J22T-115

Type

In-line, water-cooled, four-stroke, direct injection

Rated power/speed

kw/rpm

85/2400

Certified capacity

L

4.33

Minimum fuel consumption rate

g/(kw.h)

≤220

Overall parameters

Overall working weight

kg

6110

Max.swinging angle of front axle

°

±16

Max.steering angle of front whee

°

±45

Steering angle of articulated frame

°

±23

Cutter diameter

mm

1250

Cutter size (length×height×thickness)

mm

3000×480×18

Swing angle of blade

°

360

Ground clearance of blade

mm

450

Cutting depth of blade

mm

260

Incination angle of blade

°

Forward 47/backward 5

Sliding range of blade

mm

Left 550/right 550

Transmission system

Transmission type

Fixed shaft power stage

Torque converter

Slingle-stage single-phase three-element

Gears

Four shifts in front & rear

Tire specification

16/70-24

Hydraulic system

Type

Open-type system

System pressure

Mpa

16

Refueling capacity

Fuel

L

90

Hydraulic oil

L

70
