• Model NO.：SWL70K
• Type：Large Loader
• Brand：Sinoway
• Product Name：Front Wheel Loader
• Model：Swl70K
• Engine Power：220HP
• Bucket Capacity：4.0 M3
• Dump Clearance：3.2 M
• Tire：26.5-25
• Color：Yellow
• Warranty：One Year
• Transport Package：Nude
• Specification：Operating weight 25.3 ton
• Trademark：Sinoway
• Origin：China
• HS Code：84294990
• Production Capacity：50PCS,Month

Basic Info.

Model NO. SWL70K Type Large Loader Brand Sinoway Product Name Front Wheel Loader Model Swl70K Engine Power 220HP Bucket Capacity 4.0 M3 Dump Clearance 3.2 M Tire 26.5-25 Color Yellow Warranty One Year Transport Package Nude Specification Operating weight 25.3 ton Trademark Sinoway Origin China HS Code 84294990 Production Capacity 50PCS/Month

Product Description

Highlights

Heavy duty powerful engine
At the heart of our exceptional powertrain lies the latest Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.

Heavyweight Combination
Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.

The long life of capability of lifting
Our new buckets load heavy materials easier and faster; saving you time, lowering fuel consumption and reducing damage. In tests, our new buckets increase production by14% and lower fuel consumption by 15% per hour. In addition, damage to the bucket and teeth can be greatly reduced thanks to the stronger anti-wear blade.

German ZF axle performance
Stability, traction and weight loading capability are the 3 key essentials for axles in heavy applications. The new ZF axles with limited-slip differentials excel in handling heavy loads up to 44T static and 25T dynamic in tough terrain. The intelligent, responsive power combined with excellent traction and stability give operators a real feeling of confidence on any ground - soft and shifting or hard and unforgiving.

New Z-Bar enhancements
Careful distribution of stress loads increases the Z-bar's tolerance significantly. Hinge pins and lift arm
mounting plates have been strengthened, while optimized Z-Bar geometry improves bucket breakout
force, operator visibility, loading stability and speed.

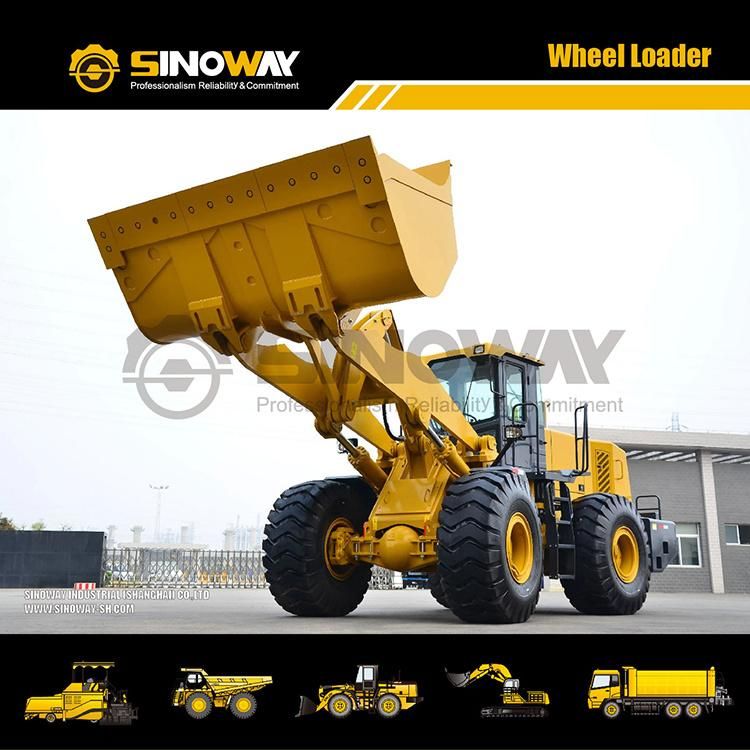

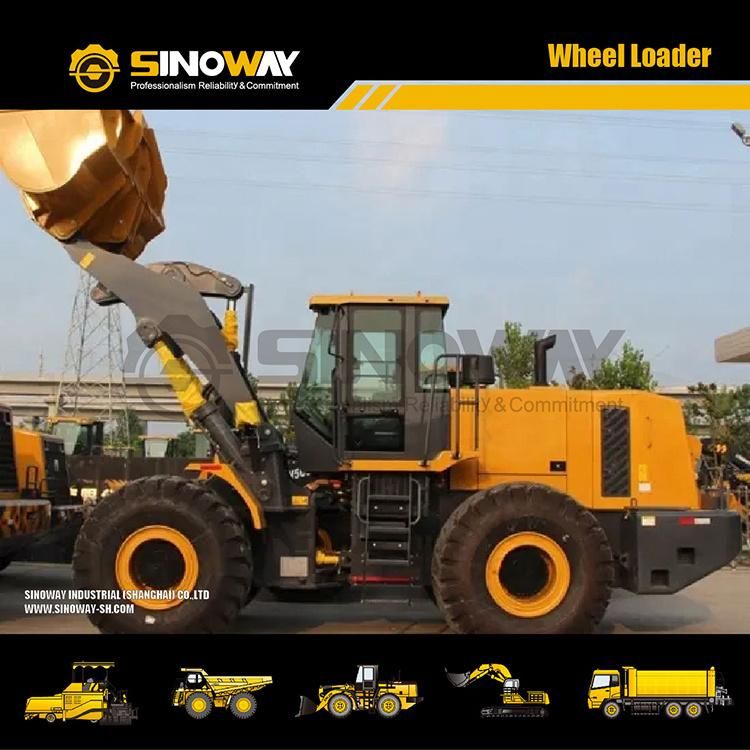

Machine Show



Specifications

Engine
Model	CUMMINS
Type	Six-cylinder,water-cooled,air to air, intercooled,turbocharged,mechanical injection
Rated power	220KW
Rated speed	2100rpm
Main Technical Specification
Rated load	7000Kg
Operating weight	24800Kg
Rated bucket capacity	4.2m3
Max. breakout force	218KN
Max. dump clearance	3200mm
Dump reach	1300mm
Dump angle at any position	45o
Digging depth(with bucket bottom horizontal)	198mm
Min. turning radius(outside of bucket)	7260mm
Oscillating angle of rear axle	±12o
Lifting time of bucket	≤6.6s
Lowering time of bucket	≤3.6s
Dumping time	≤1.4s
Implement Hydraulic System
Model of oil pump	Gear
System pressure	20.7MPa
Model of multi-way directional valve	Imported
Priority valve	Imported
Axle And Tyre
Type of main reducer	Single stage
Gear ratio of main reducer	4.777
Type of final reducer	Single stage planetary
Gear of ratio of final reducer	5.167
Total ratio	24.685
Max. tractive force	215KN
Tyre size	26.5-25
Steering System
Type	Hydraulic articulated steering
Model of steering pump	Gear
System pressure	19.0MPa
Articulated steering angle	38±1o(L/R)
Transmission System
Torque Converter
Type	3 elements, single stage
Torque ratio	2.985
Cooling type	Pressure oil circulating
Gear box
Type	Power shift
Gear shifts(Forward/Reverse)	F4/R3
Travelling speed(km/h)
Forward/Reverse I	6.5/6.5
Forward/Reverse II	11.5/11.5
Forward/Reverse III	27/27
Forward IV	37
Dimensions
Overall length(with bucket on ground)	9305mm
Overall width(to outside of wheels)	2966mm
Overall height(to the top of the cab)	3580mm
Bucket width	3157mm
Wheel base	3450mm
Tread	2270mm
Ground clearance	458mm
Service Capacities
Fuel tank	425L
Engine crank case	38L
Converter and gear box	62L
Hydraulic tank	250L
Braking System
Service brake type	Wet multi disc
Service brake actuation	Hydraulic
Parking brake type	Auto and manual electronic controlled
Parking brake actuation	Hydraulic

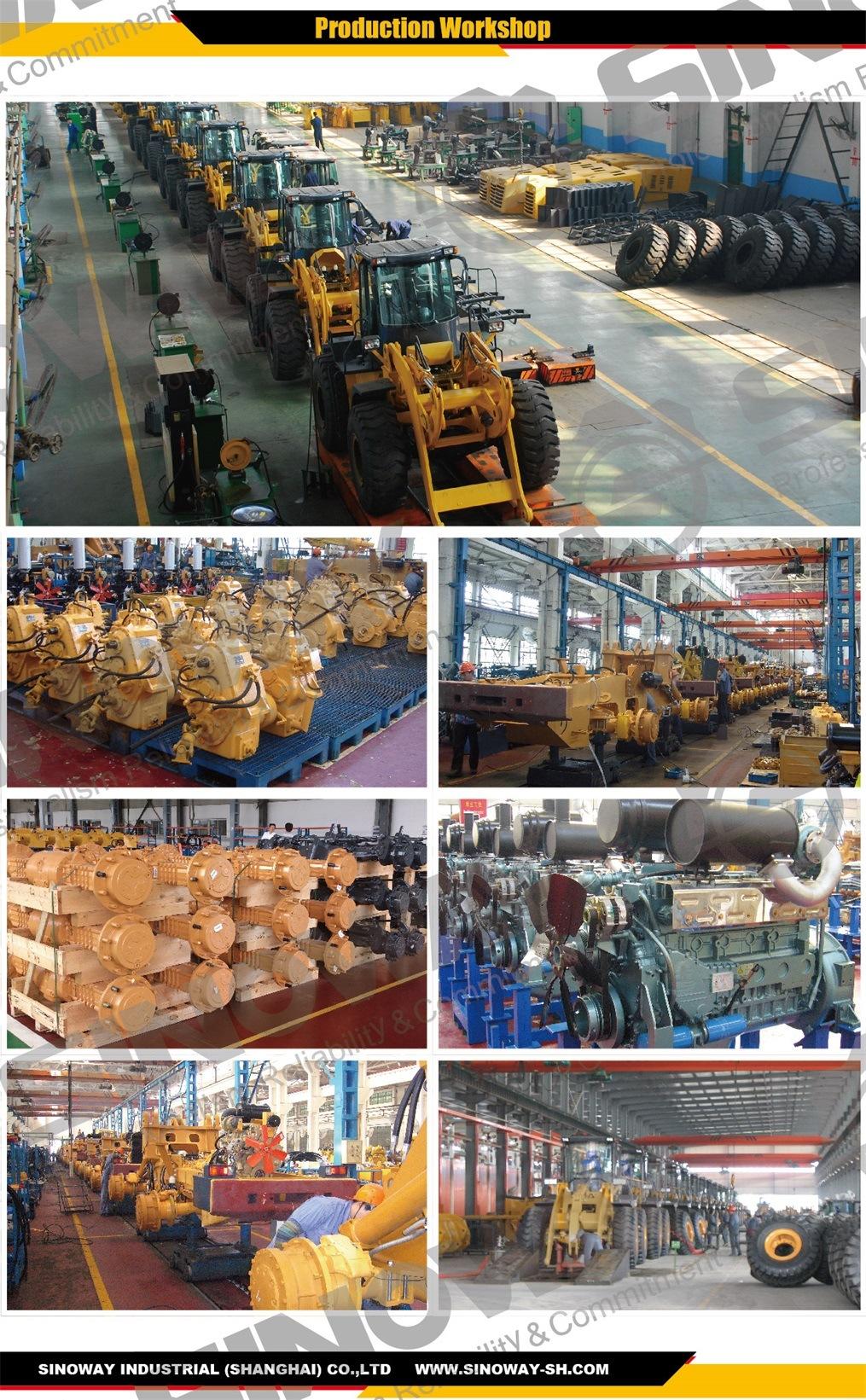

Assembly Line
