1.5ton 2ton 3 Ton 5ton Four-Cycle  Diesel  Engine Wheel Loaders

Henan Haiheng Import and Export Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Transmission：Hydraulic - Mechanical Transmission
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Loader：910m

Base Info

  • Model NO.：910M
  • Mini Loader：910m
  • Usage：Universal Type
  • Scraper Type：Pull Scraper
  • Load and Unload Method：Front Discharge
  • Engine Power：<74kw
  • Color：Colour as Our Customer Required
  • Transport Package：Naked
  • Specification：A
  • Trademark：CHHGC
  • Origin：Henan
  • HS Code：84295100
  • Production Capacity：100 Per Month

Description

Basic Info.

Model NO. 910M Mini Loader 910m Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Colour as Our Customer Required Transport Package Naked Specification A Trademark CHHGC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

Product Description

1.0 Engine Details
    (1) Model :                                       Changchai ZN485Q
    (2) Engine type:   In-line arrangement, water cooled, four-cycle diesel Engine
    (3) Rated Power :                                   26KW ( 36 H.P. )
    (4) Rated Speed :                                   2200 r/min(rpm)
    (5) Fuel Consumption ratio in standard working condition :    269g/kw.h
2.0 Steering System
    (1) Cycloid full hydraulic steering system :                    BZZ-125
    (2) System Pressure                  :                       10MPa
    (3) Steering Cylinder                 :                Φ76x Φ63x180
    (4) Speed

3.0 BUCKET
    (1) Bucket Capacity     :                                    0.5 m3
    (2) Bucket width       :                                    1400mm
    (3) Bucket type        :                        Heavy duty bolt on teeth
    (4) Max. Breakout Force :                                       32KN
    (5) Rated Load        :                                      1000kg
    (6) Operating Weight   :                                      2880kg
4.0 OVERALL DIMENSION
    (1) Overall Length ( Bucket on ground position )  :                4900mm
    (2) Overall Height
            (a) Ground to Cab Top :                              2520mm
            (b) Ground to exhaust pipe :        It is below from the top of cabin
            (c) Dumping Height  :                               2545mm
    (3) Overall Width            :                               1685mm
5.0 OPERATING SPECIFICATIONS
    (1) Drive Means             :                        Four-wheel drive
    (2) Min Turning Radius       :                               4200mm
(3) Driving System           :                             mechanical
(4) Dumping Height          :                               2545mm
(5) Min Base to the ground     :                               240mm
(6) Time of raise             :                               3.05sec.
(7) Hydraulic cycle time       :                                  9sec.
6.0 Brake System
    (1) Service Brake :                Four Wheel Hydraulic spread-shoed brake
    (2) Parking Brake :                                      Hand operated
7.0 Wheelbase :                                               2040mm
8.0 Track :                                                   1320mm
9.0 Machine speed
  1. Low speed  (km/h)    4             (2) High speed (km/h)    25

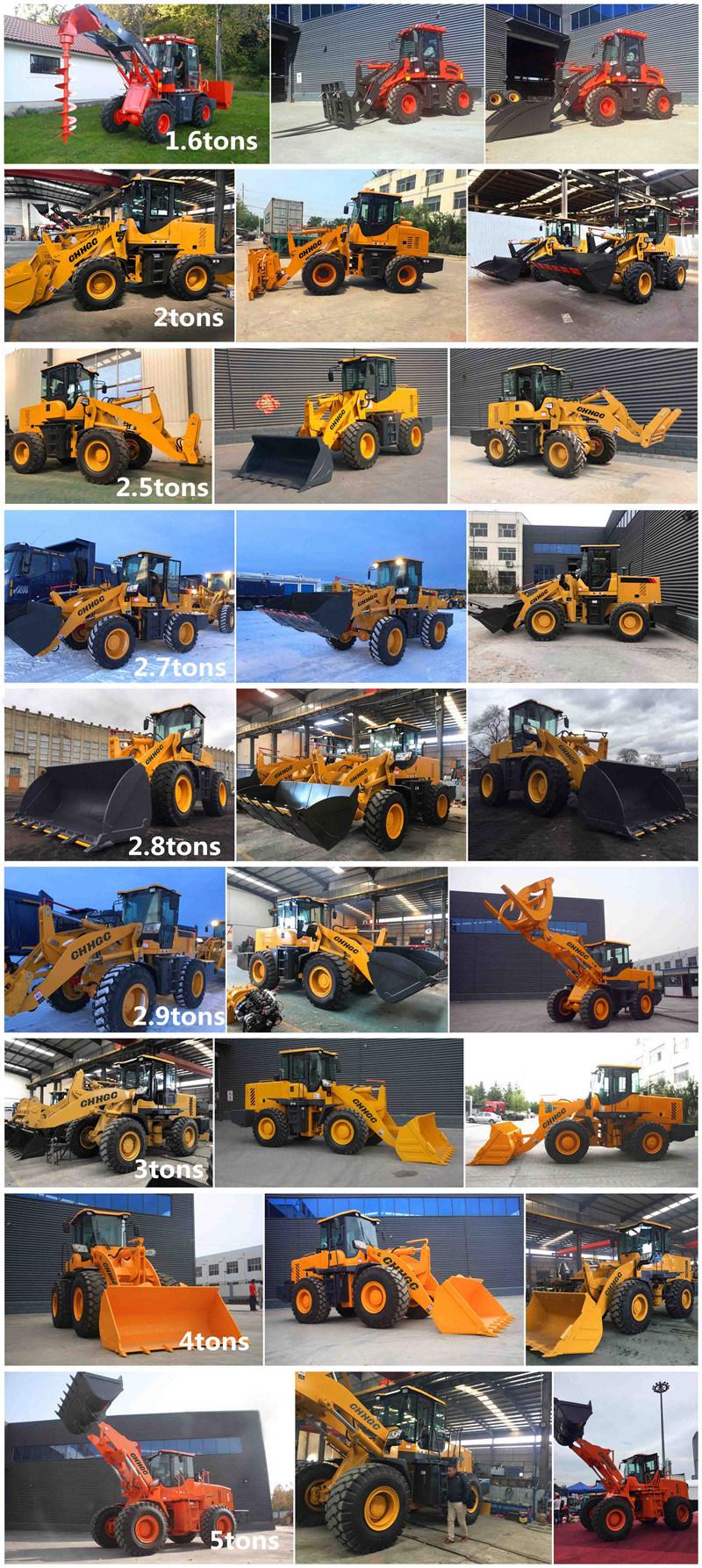

  2. Products series
    1.5ton 2ton 3 Ton 5ton Four-Cycle  Diesel  Engine Wheel Loaders

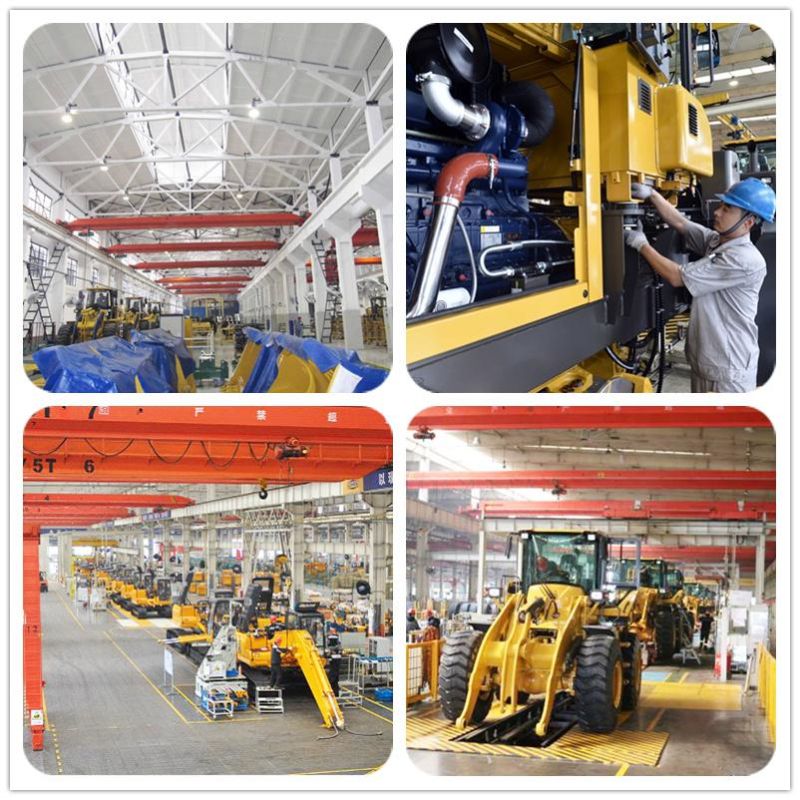

    Production Workshop
    1.5ton 2ton 3 Ton 5ton Four-Cycle  Diesel  Engine Wheel Loaders

    Certificate
    1.5ton 2ton 3 Ton 5ton Four-Cycle  Diesel  Engine Wheel Loaders
    1.5ton 2ton 3 Ton 5ton Four-Cycle  Diesel  Engine Wheel Loaders
    Business Partners
    1.5ton 2ton 3 Ton 5ton Four-Cycle  Diesel  Engine Wheel Loaders
    FAQ

    Q1. How to ship the loader?
    A:    By container, bulk ship, RORO.

    Q2. Do you have different loader?
    A:   Yes,we supply different model loaders and exported to many countries.

    Q3. What is your payment term?
    A: We usually accept T/T or L/C depends on the quantity.
         T/T, deposit in advance, and balance paid before delivery from factory.

    Q4. Which type loader do you supply?
    A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

    Q5. What is your terms of delivery?
    A:    FOB, CIF.

    Q6. How about your delivery time?
    A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q7. Do you test all your goods before delivery?
    A:   Yes, we have 100% test before delivery

    Q8: What can you guarantee to your business partner?
    A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
