• Model NO.：SD32
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Transport Package：Nude Package
• Specification：40200Kg
• Trademark：SHANTUI
• Origin：China
• HS Code：84291190
• Production Capacity：500unit,Month

Basic Info.

Model NO. SD32 Engine Power 147~515kw Certification CE, ISO9001: 2000 Condition New Color Yellow Transport Package Nude Package Specification 40200Kg Trademark SHANTUI Origin China HS Code 84291190 Production Capacity 500unit/Month

Product Description

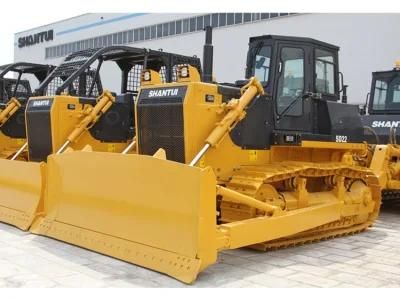

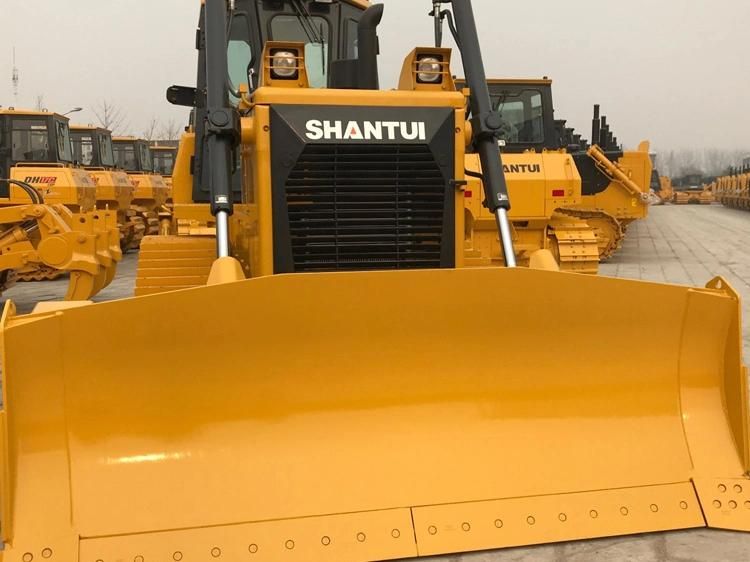

SHANTUI SD32 Crawler Bulldozer
Product Description


1.The installed WP12/QSNT-C345 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

2.The rated power reaches 257kW, featuring high torque reserve coefficient.

3. The radially sealed intake system is applied to effectively prolong the engine life.


4.The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

5. Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.


6. The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

7. The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

8. The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.


9. Shantui's stable and reliable chassis system is applicable to diversified severe working conditions.

10.The product features long ground length, high ground clearance, stable driving, and good trafficability.

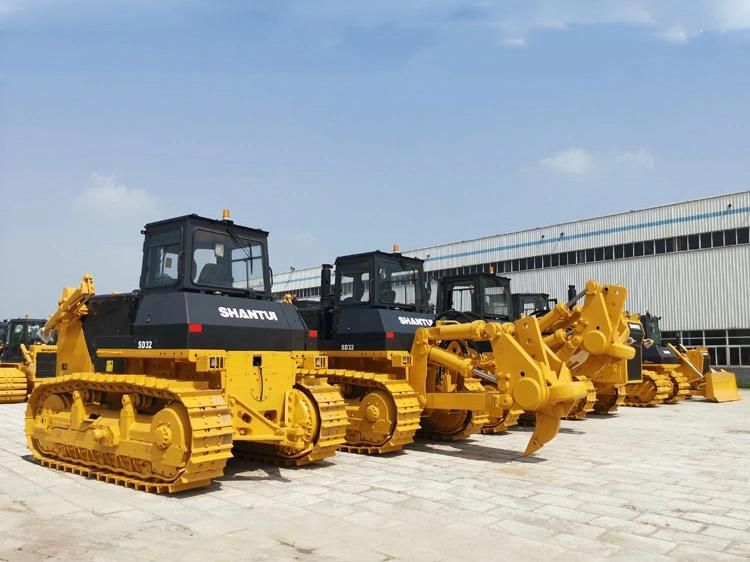

11. The straight tilting blade, semi-U blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The standard LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Parameters


Parameter name	SD32 (Standard version)	SD32C (Coal version)	SD32W (Rock version)	SD32D (Desert version)	SD32R (Environmental sanitation version)
Performance parameters
Operating weight (Kg)	40200	40500	40900	39500	37100
Ground pressure (kPa)	97.7	98.4	99.4	96	90.2
Engine
Engine model	WP12/QSNT-C345	QSNT-C345	WP12/QSNT-C345	QSNT-C345	QSNT-C345
Rated power/rated speed (kW/rpm)	257/2000,258/2000	257/2000	258/2000,257/2000	257/2000	257/2000
Overall dimensions
Overall dimensions of machine (mm)	8650*4130*3760	8650*4755*3760	8650*4130*3760	8650*4130*3760	8650*4332*3760
Driving performance
Forward speed (km/h)	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5
Reversing speed (km/h)	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5
Chassis System
Center distance of track (mm)	2140	2140	2140	2140	2140
Width of track shoes (mm)	560/610/660/710	560/610/660/710	560/610/660/710	560/610/660/710	560/610/660/710
Ground length(mm)	3150	3150	3150	3150	3150
Tank capacity
Fuel tank (L)	640	640	640	640	640
Working device
Blade type	Straight tilting blade , Angle Blade and Semi-U blade	Semi-U coal blade and coal U-blade	Rock straight tilting blade, rock angle blade and rock semi-U blade	Straight tilting blade , Angle Blade and Semi-U blade	Sanitation blade
Digging depth (mm)	560/630/560	560	560/630/560	560/630/560	560
Ripper type	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	--
Ripping depth (mm)	1,250 (Single-shank) and 842 (Three-shank)	1,250 (Single-shank) and 842 (Three-shank)	1,250 (Single-shank) and 842 (Three-shank)	1,250 (Single-shank) and 842 (Three-shank)	--
