Concrete Mixing Small Self Loading Cement Mixer Truck
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：2.4m3
- Productivity：16cbm,H
- Feeding Height：2500mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White and Blue
- Actual Mixing Capacity：2.4cbm
- Rotary Drum Capacity：2.6cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:24
- Rated Power：78kw
- Max Torque：380,1500-1800
- Max Running Speed：24km,H
- Min Steering Radius：4500mm
- Climbing Capacity：26
- Tire：16,70-20
- Driving Way：4*4
- Weight：5550kg
- Maximum Load Capacity：5600kg
- Whole Machinery Weight：11150kg
- Transport Package：Nude Package
- Specification：6700*2300*2900
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement
L
CF4C100T-Z-13B2
model
Straight injection type four stroke water cooled supercharged diesel engine
Rated power
kw/r/min
78KW/2400
Max torque
N.m/r/min
380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4500
Climbing capacity
%
26
Tire
16/70-20
Driving way
4×4
Weight
kg
5550
Maximum load capacity
kg
5600
Whole machinery weight
kg
11150
Overall size(L*W*H)
mm
6350*2510*2850
The wheelbase
mm
2300
Bucket capacity
m³
0.5
ADVANTAGES for Mixing 4 wheels 2.4cubic concrete mixing truck

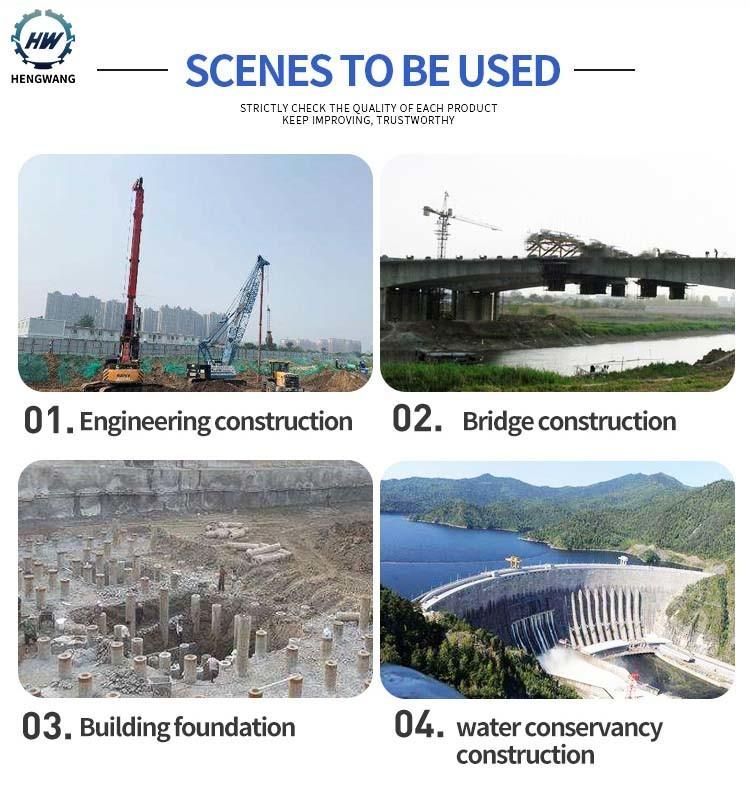

Product Application

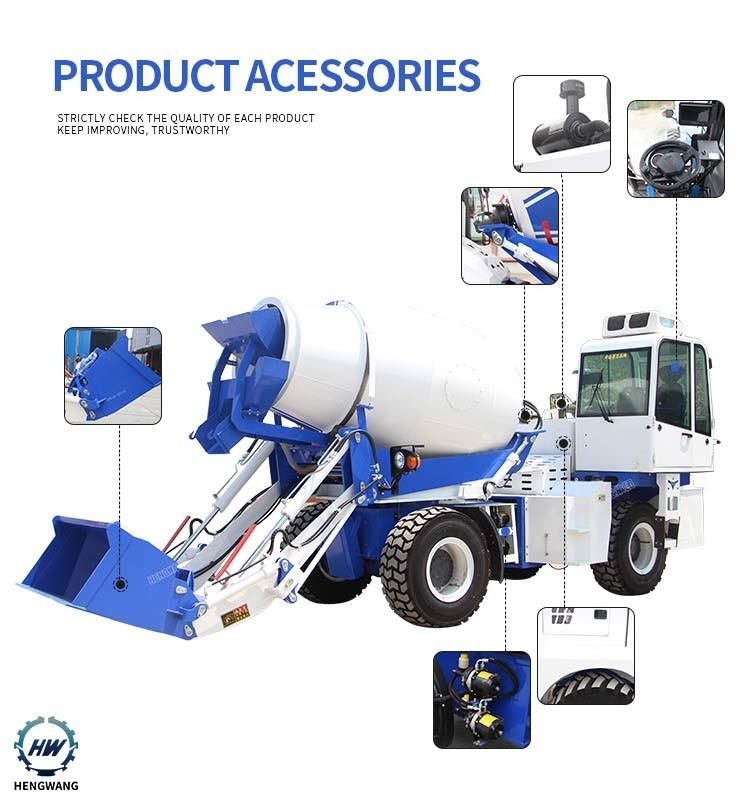

Product acessories

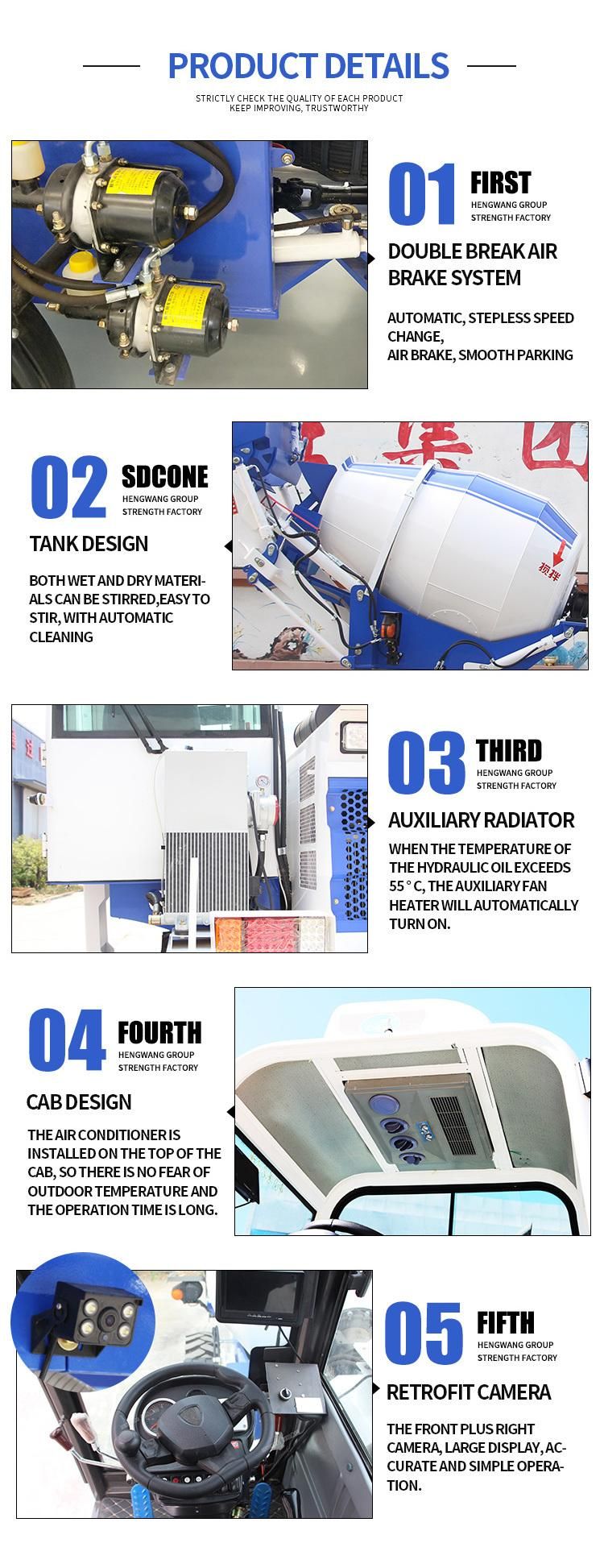

Product DetailsProduct Details
Customer use feedback
SHIPPING
Mixer truck adapted air brake, more safety.

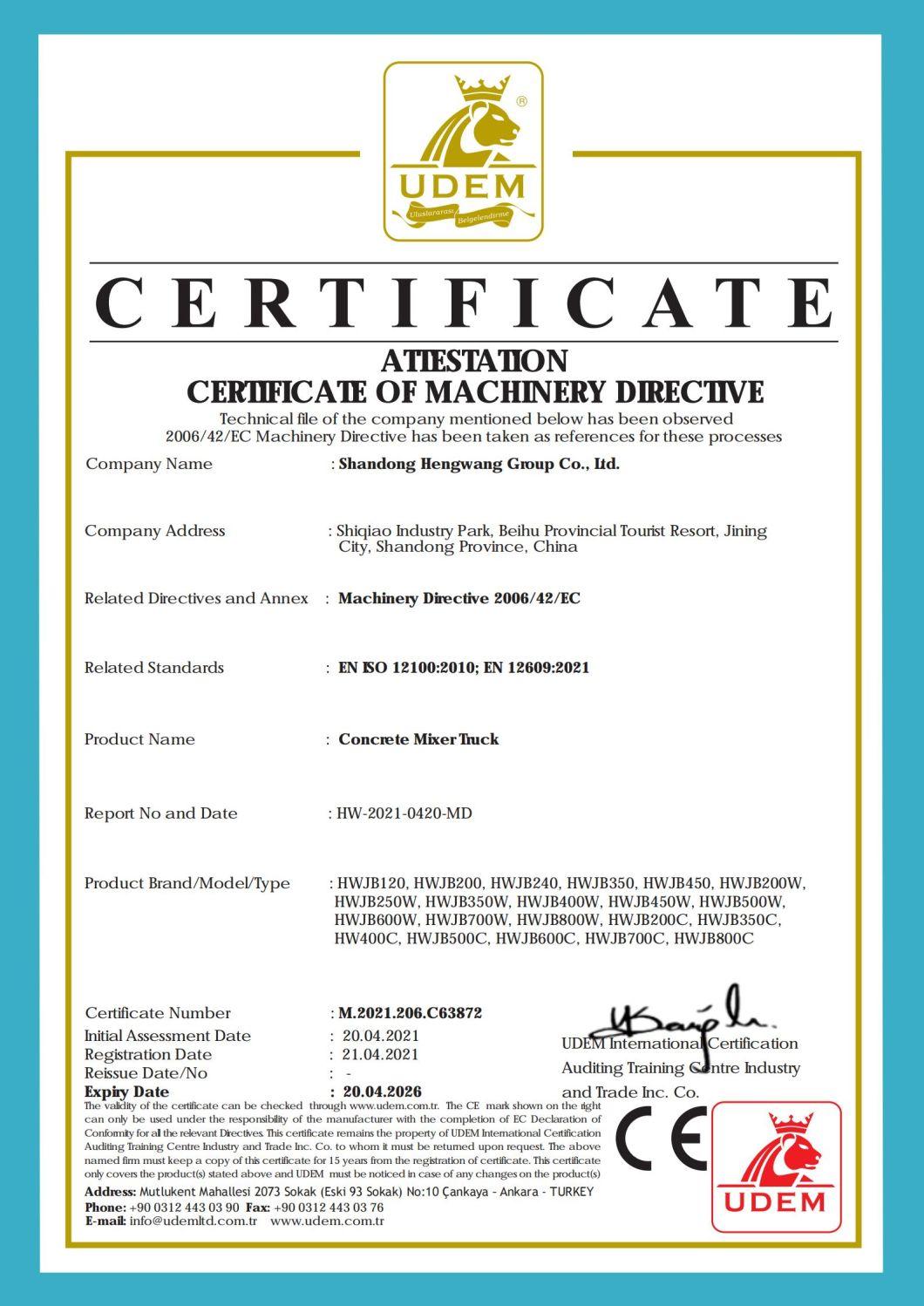

Construction SiteCompany ProfileCertifications
FAQ
Q:Are you manufacturer? Concrete Mixing Small Self Loading Cement Mixer Truck
A: Yes, we are factory with more than 20 years of manufacturing experience.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packagesbefore you pay the balance.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed
for anew one.And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine? Concrete Mixing Small Self Loading Cement Mixer Truck
A: All of our products coming with the certificates of CE, IS09001.
