• Model NO.：GR5505
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Operating Weight(Kg)：63000 Kg
• Drawbar Pull(Kn)：82
• Rated Power(Kw/Rpm)：399,2100
• Travelling Speed ,Forward：4.7,6.2,9.1,11.9,17.3,22.5,33,42.7
• Tractive Force(F=0.75)：380kn
• Max. Gradeability：25%
• Working Hydraulic Pressure：16 MPa
• Maximum Lift Above Ground：450 mm
• Maximum Blade Position Angle：90
• Circle Reversing Rotation：360
• Moldboard Width X Height：7300 1607 mm
• Transport Package：Nude
• Specification：14300*4200*4600mm
• Origin：Jiangsu, China
• HS Code：8429209000
• Production Capacity：100,Month

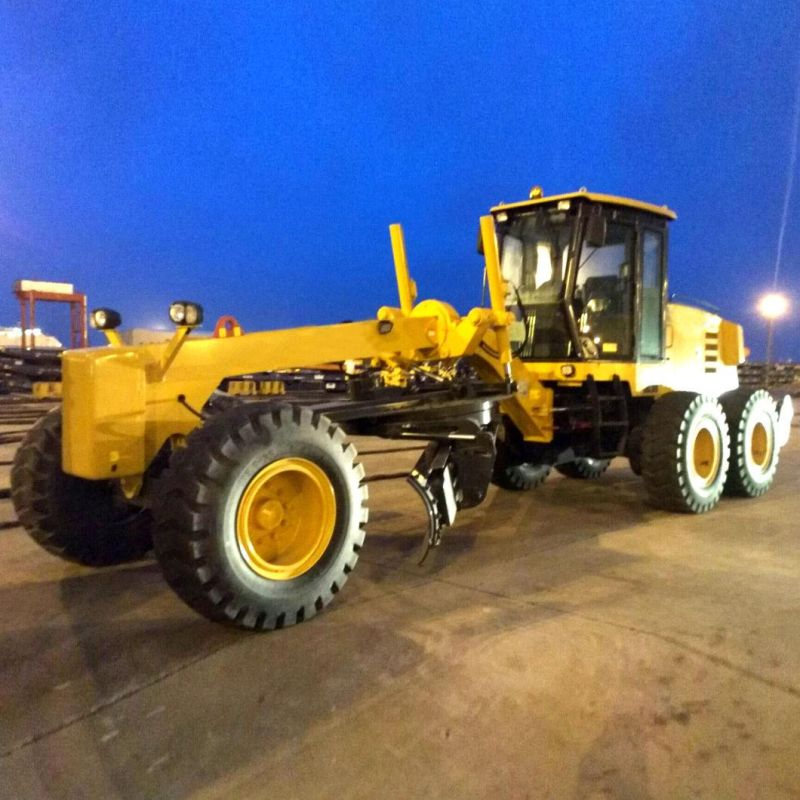

550HP GR5505 motor graders equipment.

•The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
•The adopted international matched hydraulic parts ensure the reliable operation.
• The blade movement is hydraulic controlled fully.
•The rear axle is three-way drive axle with NO-SPIN self -locking differential.
•The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
•The luxury and beautiful cab features wide visibility and good sealing.
•The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

  PARAMETERModel  GR5505EngineEnginemodel QSX15Ratedpower/speedkw/rpm399/2100Travelingspeedforwardkm/h4.7/6.2/9.1/11.9/17.3/22.5/33/42.7Performance spexificationTravelingspeedreversekm/h4.7/0.1/17.3/33(f=0.75)TracliveforcekN380Max.gradeability%25Min.turning radius using articulationm7.3Maximum lift above groundmm450OperatingspecificationMaximum depth of cuttingmm500Maximum blade position angle90Blade cutting angle 28~70BladeCircle reversing rotation 360Molo board width x heightmm7300 1607Dimension(LxWxH)mm14300*4200*4600Operating weight(Standard)kg63000Pictures

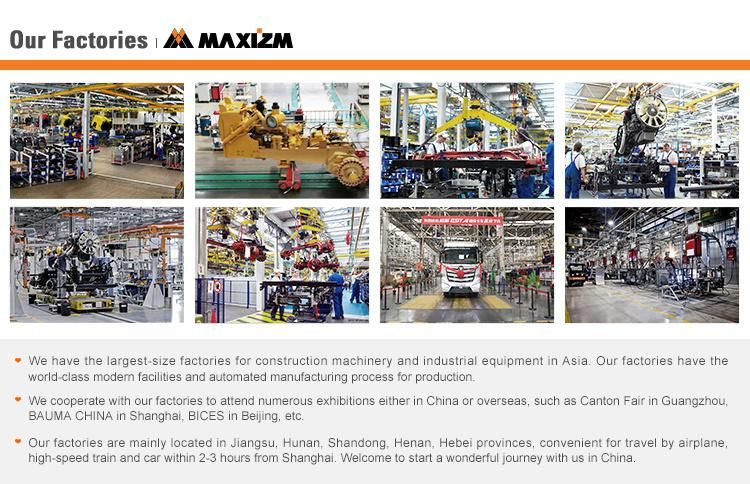

Service & Company Overview
