• Model NO.：142J
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow (Other Color Can Be Optional)
• Engine：Shangchai
• Operating Weight：14 000kg
• Final Drive：Gear
• Brake System：Hydraulic, Mechanical Pin Lock
• Weight on Front Drum：10000 Kg
• Static Linear Load：470n,Cm
• Min. External Turning Radius：6500mm
• Vibration Frequency (High/Low)：33,28 Hz
• Drum Diameter：1600mm
• Transport Package：Nude Packing
• Specification：6690*3500*3698
• Origin：China
• HS Code：8401200000
• Production Capacity：1000,Per

Basic Info.

Model NO. 142J Certification ISO9001: 2000, CE Condition New Color Yellow (Other Color Can Be Optional) Engine Shangchai Operating Weight 14 000kg Final Drive Gear Brake System Hydraulic, Mechanical Pin Lock Weight on Front Drum 10000 Kg Static Linear Load 470n/Cm Min. External Turning Radius 6500mm Vibration Frequency (High/Low) 33/28 Hz Drum Diameter 1600mm Transport Package Nude Packing Specification 6690*3500*3698 Origin China HS Code 8401200000 Production Capacity 1000/Per

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang



Product Description

      2020 14ton new road roller compactor for sale

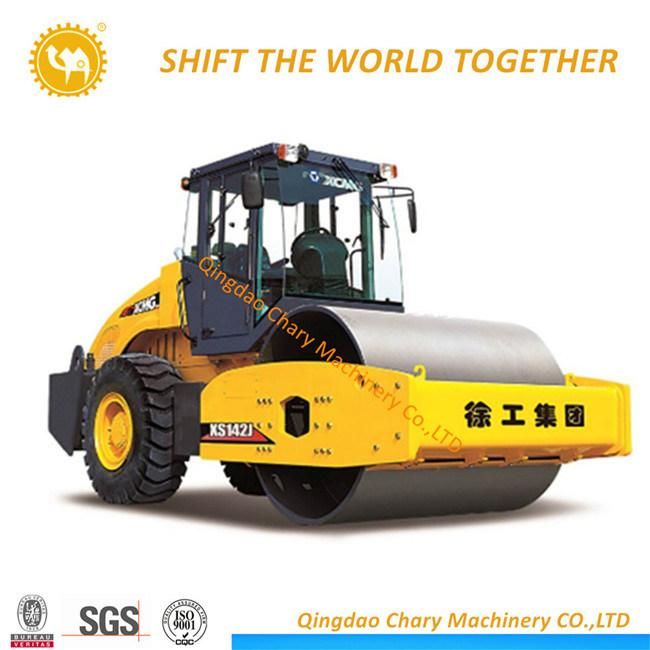

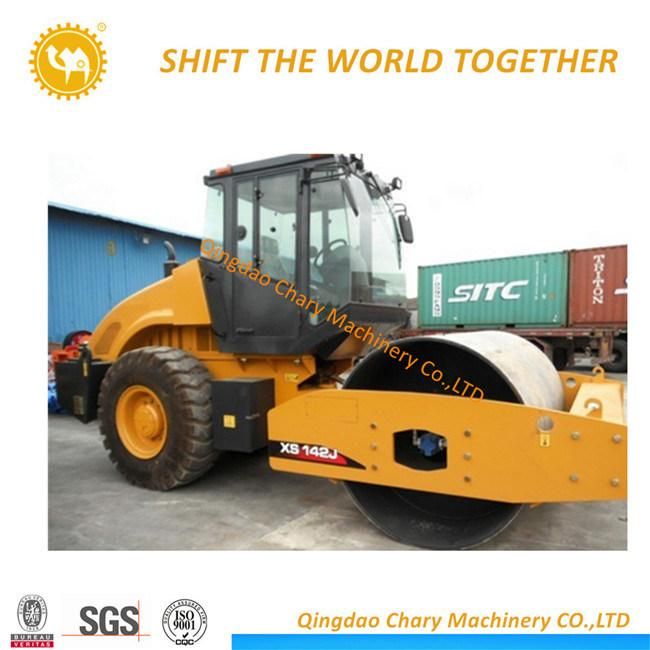

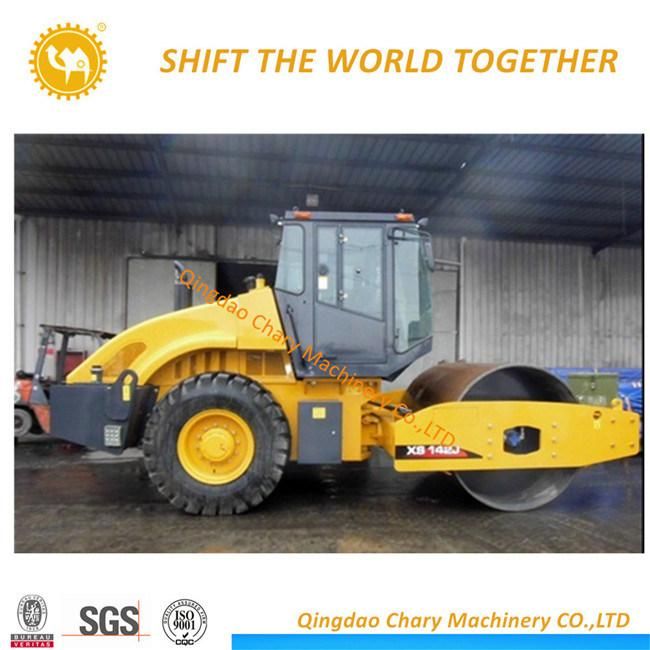

XS142J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.

Performance feature
The spacious and bright cab features wide view and comfort.

Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.

Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.

Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.

Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.

Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.


Model	Unit	142J
Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		SC5D125G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180

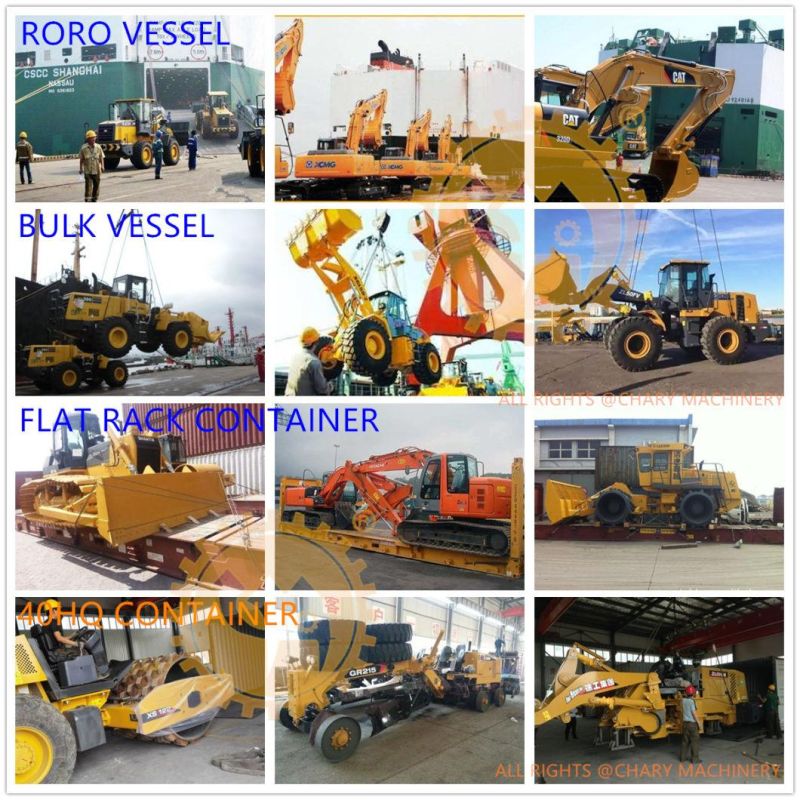

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU



WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

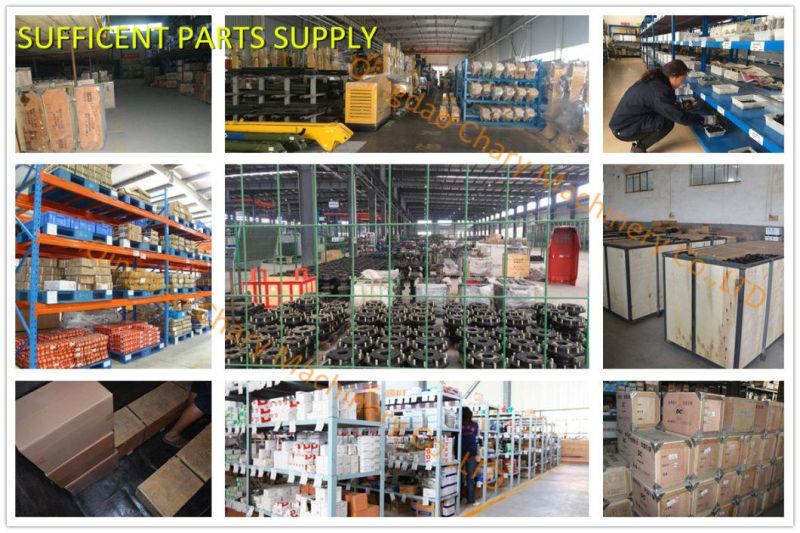

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.



WELCOME TO CONTACT US

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
