China Zoomlion Zd320-3 11.6m3 Small Bulldozer with A/C
Sinomada Heavy Industry (Changsha) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：ZD320-3
- Condition：New
- Color：Green
- Working Mass：23870kg
- Blade Capacity：4.8m3
- Max. Torque：1078,1251
- Blade Type：Straight Tilt Blade
- Transport Package：Nude Packing
- Specification：9570*2800*3140mm
- Trademark：Zoomlion
- Origin：China
- HS Code：84291190
- Production Capacity：1000 Units, Month
Description
Item
ZD320-3
Blade type
Small Semi-U Blade
Working mass
35044kg
Blade capacity
11.6m³
Engine model
NTA855-C360
Rated power/Slewing speed
257kW/rpm
Max. torque
1509/1400N.m/rpm
Min. fuel consumption
242g/kW.h
Max. Drawbar pull
302Kn
Ground pressure
106kPa
Gradeability°
30°
Traveling speed of forward
3.6/6.6/11.5km/h
Traveling speed of Reverse
4.4/7.8/13.5km/h
Height of cab
3600mm
Height of ROPS
3687mm
Ground contact length
3150mm
Height of blade
1705mm
Track center distance
2140mm
Height of grouser
80mm
Track shoe width
560mm
Max. lift height of dozer
1560mm
Max. drop depth
560mm
Max. lift height of ripper
single-shank 960mm
multi-shank 890mm
Max. ripping depth of ripper
single-shank 1235mm
multi-shank835mm

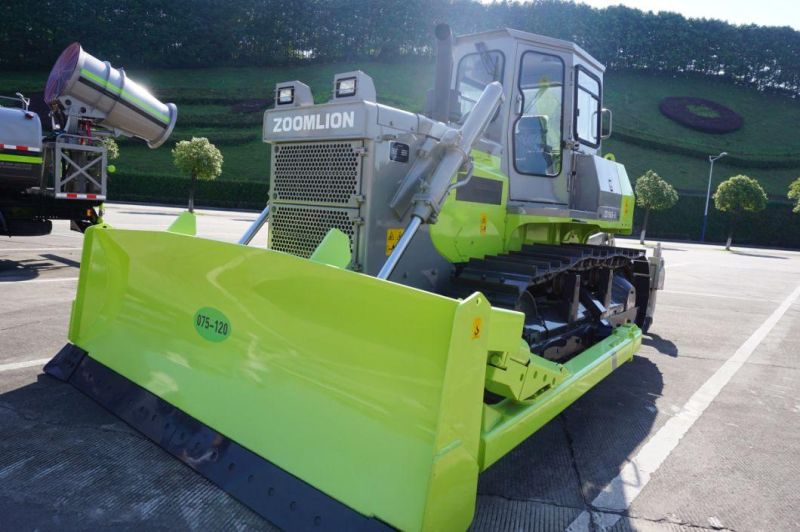

Photoes
