• Model NO.：DP-SD-250
• Length：1700mm
• Width：1340mm
• Height：440mm

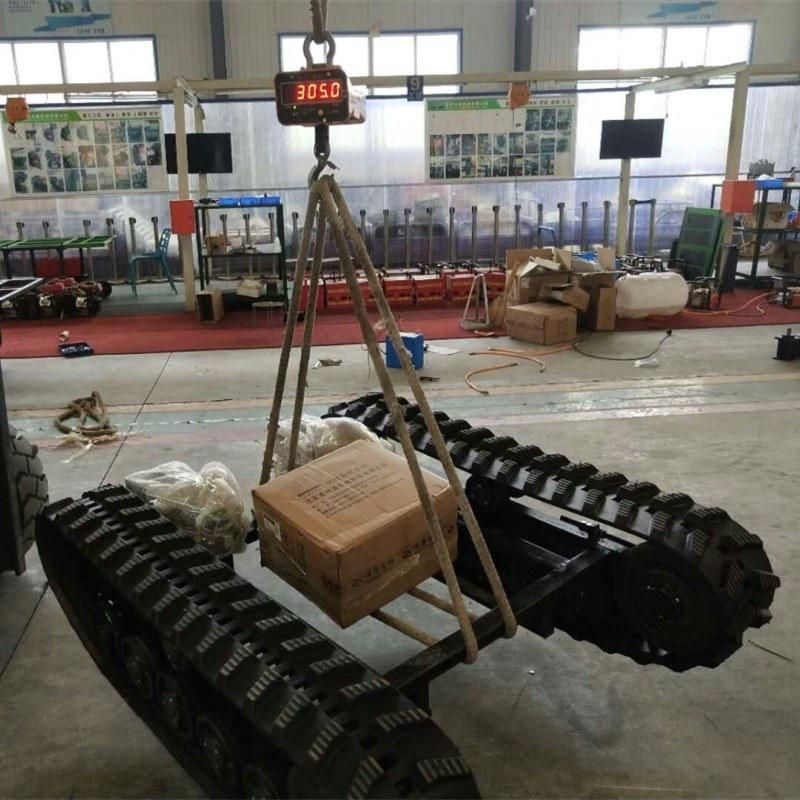

• Net Weight：305kg
• Carry Capacity：1 Ton
• Sprocket Diameter：243mm
• Track Width：250mm
• Transport Package：Bare Packing or Wooden Pallet
• Specification：DP-SD-250
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China (Mainland)
• HS Code：8431499900
• Production Capacity：100 Sets,Month

LengthWidthHeightSprocket DiameterRubber Track Model/WidthRubber Track LinkWeightLoad-bearing weight1700mm1340mm440mm243mmLP-250/250mm74305kg800kg- 1 Ton

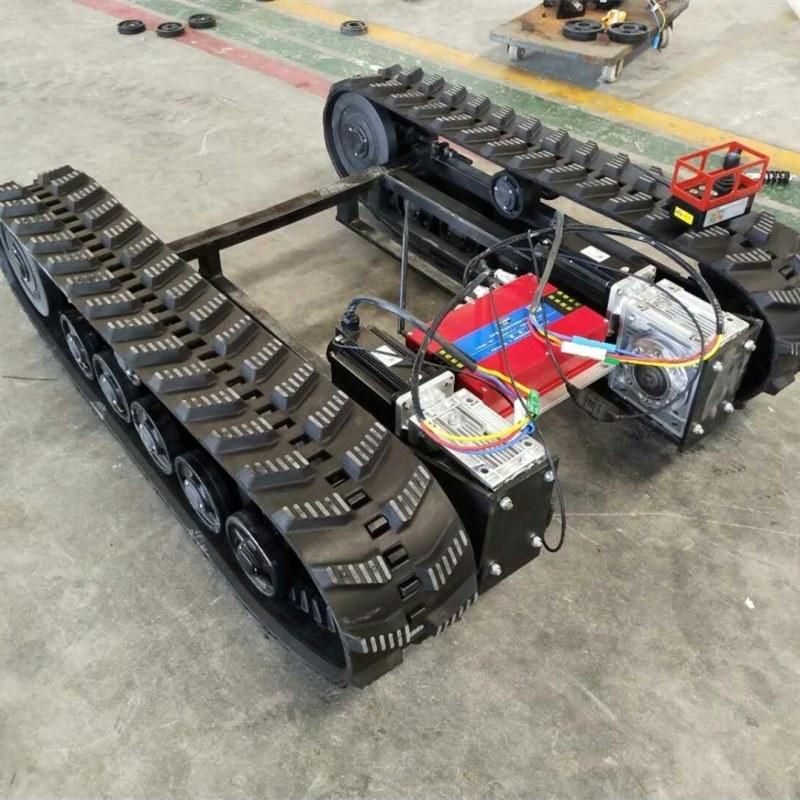

Customers need specifications:

The track type - Rubber tracks
Max speed required - 4 Km/hr
Driving power source - Electrical power (DC)
Driving motor power - 2 x 1/1.5/2 Kw BLDC motor.
Voltage - 24 / 48 / 72 Volts DC
Max angle should climb - 30-35 degree
Motor protection class - IP66 / IP67 /IP68
Max weight of chassis - 350 kg
Max load bearing capacity - 1000 kg
Max length of chassis - 1700mm
Max width of chassis - 1200mm
BLDC Motor controller required- YES (2 Numbers)

But we can provide specificatons:

1. Motor power - 2KW.
2. Number of motors - 2PCS.
3. Rated voltage of motor - 48V.
4. Rated speed of the motor - 1500rpm-3000rpm
5. Rated output speed of gearbox of motor - 30rpm
6. Gear Ratio of gearbox - 50
7. Motor type - Brushless DC motor.
8. Protection class(IP RATING) - IP65
9. Motor controller details - Pls confirm attached drawings.
10. Sprocket diameter - 322mm
11. Weight - 277.5kg
12. Rubber track width - 250mm
13. Load bearing weight - 800kg
14. Length - 1610mm (can be adjusted)
15. Width - 1200mm (can be adjusted)
16. Minimum ground clearance - 190mm

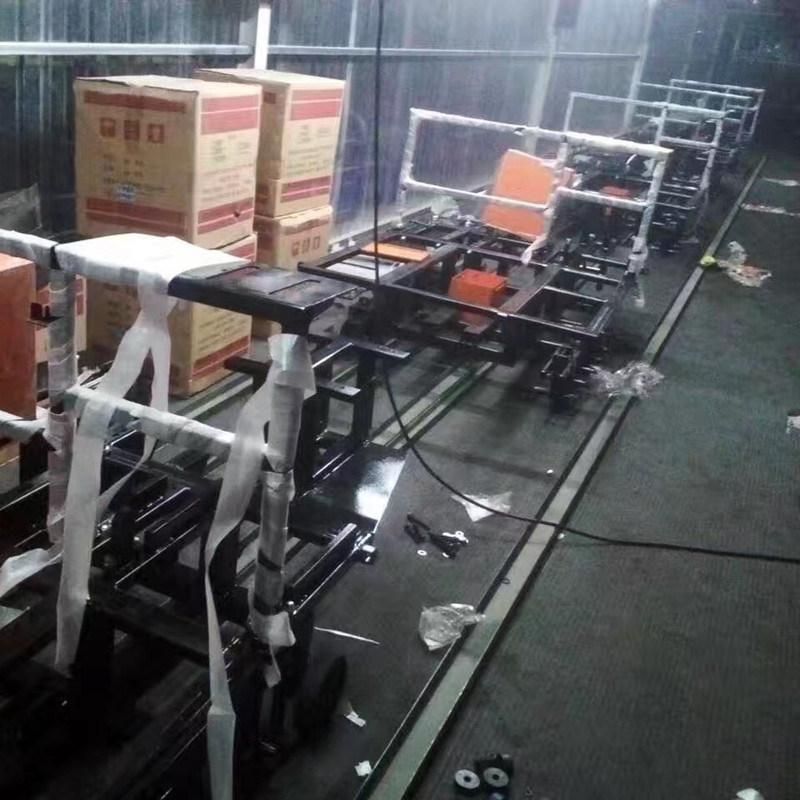

Package Photos:




Application and Features:

1. Suitable for the small wheelchair.

2. Can load weight about500-800KG

3. Length can be adjusted.

4. Sprocket is available.

Characteristics of rubber track:

1). Less damage to the ground surface

2). Low noise

3). High running speed

4). Less vibration;

5). Low ground contack specific pressure

6). High tractive force

7). Light weight

8). Easy to change


More Models of Rubber Track Chassis,welcome to enquire about us by email or telephone:

Rubber Tracks Specification Type:PY-50AType:PY-50BType:PY-60AType:PY-60BLink No.54Link No.46Link No.66Link No.50Pitch:19mmPitch:20mmPitch:12.7mmPitch:18.5mmWidth:50mmWidth:50mmWidth:60mmWidth:60mmTotal length:1026mmTotal length:920mmTotal length:838.2mmTotal length:925mmWeight:0.5KgWeight:0.5KgWeight:1.2KgWeight:0.44Kg    Type:PY-76Type:PY-80Type:PY-85Type:PY-100ALink No.120Link No.108Link No.24Link No.50Pitch:12.7mmPitch:15mmPitch:59.4mmPitch:40mmWidth:76mmWidth:80mmWidth:85mmWidth:100mmTotal length:1524mmTotal length:1620mmTotal length:1425.6mmTotal length:2000mmWeight:1.92KgWeight:1.2KgWeight:1.92KgWeight:4Kg    Type:PY-100BType:PY-110Type:PY-115Type:PY-118ALink No.76Link No.32Link No.32Link No.18Pitch:20mmPitch:42mmPitch:65mmPitch:61mmWidth:100mmWidth:110mmWidth:115mmWidth:118mmTotal length:1520mmTotal length:1344mmTotal length:2080mmTotal length:1098mmWeight:1.84KgWeight:2.12KgWeight:KgWeight:2.32Kg    Type:PY-118BType:PY-118CType:PY-123Type:PY-130Link No.20Link No.24Link No.60Link No.28Pitch:60mmPitch:61mmPitch:40mmPitch:72mmWidth:118mmWidth:118mmWidth:123mmWidth:130mmTotal length:1200mmTotal length:1464mmTotal length:2400mmTotal length:2016mmWeight:2.44KgWeight:3.9KgWeight:8KgWeight:11.2Kg    Type:PY-135Type:PY-136Type:PY-140Type:PY-148Link No.72Link No.41Link No.24Link No.36Pitch:18.5mmPitch:45mmPitch:80mmPitch:60mmWidth:135mmWidth:136mmWidth:140mmWidth:148mmTotal length:1332mmTotal length:1845mmTotal length:1920mmTotal length:2160mmWeight:1.66KgWeight:3.56KgWeight:5KgWeight:16Kg    Type:PY-150Type:PY-180Type:PY-200Type:PY-255ALink No.22Link No.42Link No.60Link No.30Pitch:63.4mmPitch:65mmPitch:61.5mmPitch:72mmWidth:150mmWidth:180mmWidth:200mmWidth:255mmTotal length:1394.8mmTotal length:2730mmTotal length:3690mmTotal length:2160mmWeight:3.6Kg Weight:20KgWeight:12Kg    Type:PY-255BType:PY-300Type:PY-320Type:PY-350Link No.35Link No.58Link No.33Link No.53Pitch:65mmPitch:109mmPitch:87mmPitch:100mmWidth:255mmWidth:300mmWidth:320mmWidth:350mmTotal length:2275mmTotal length:6322mmTotal length:2871mmTotal length:5300mmWeight:10Kg Weight:22Kg     Type:PY-382Type:PY-400Type:PY-420Type:PY-500Link No.54Link No.46Link No.58Link No.48Pitch:64mmPitch:90mmPitch:100mmPitch:63.5mmWidth:382mmWidth:400mmWidth:420mmWidth:500mmTotal length:3456mmTotal length:4140mmTotal length:5800mmTotal length:3048mmWeight:29Kg  Weight:43.2Kg

Product Application

Our Rubber Track System can be used on many engineering machinery machine,such as:

Drilling machine: Anchor drilling rig, water well drilling rig,, core drilling rig, Jet drilling rig, down-hole
drilling rig, hydraulic crawler drilling rig,, forpoling rig, multipurpose drilling rig, no-dig drilling rig, etc.
Construction machinery machine: mini excavator, mini pilling machine, Aerial work platform, Small
transport loading equipment, etc.
Coaling machine: slag-raking machine, tunnel drilling rig, hydraulic drilling machine,, rock loader, etc
Mining machine: mobile crusher, heading machine, conveying equipment, etc.

Agriculture machine: Sugar cane harvester, lawn mower, compost turner, ditching machine, etc

And the loading capacity of the rubber track system range from 0.5-15 ton.You can choose the loading

capacity you want.We can customized the rubber crawler track according to your needs,like the rubber

track system length, rubber track system total width, rubber track system width, rubber track system

height, rubber track system speed and rubber track system application.


This model of rubber track system is KRT2000,with the 1.5 ton loading capacity and 1200mm width(that can be wider as you want),and this rubber track system is used on many kind of machine.
