• Model NO.：SWSC100
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Max. Cutting Height：12190mm
• Max. Dumping Height：9800mm
• Max. Reach：15100mm
• Operating Weight：36 Ton
• Deck Dimension：8 X 6 M
• Cabin：as Optional
• Transport Package：Naked
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：20 PCS,Month

Basic Info.

Model NO. SWSC100 Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Max. Cutting Height 12190mm Max. Dumping Height 9800mm Max. Reach 15100mm Operating Weight 36 Ton Deck Dimension 8 X 6 M Cabin as Optional Transport Package Naked Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 20 PCS/Month

Product Description

Main Features

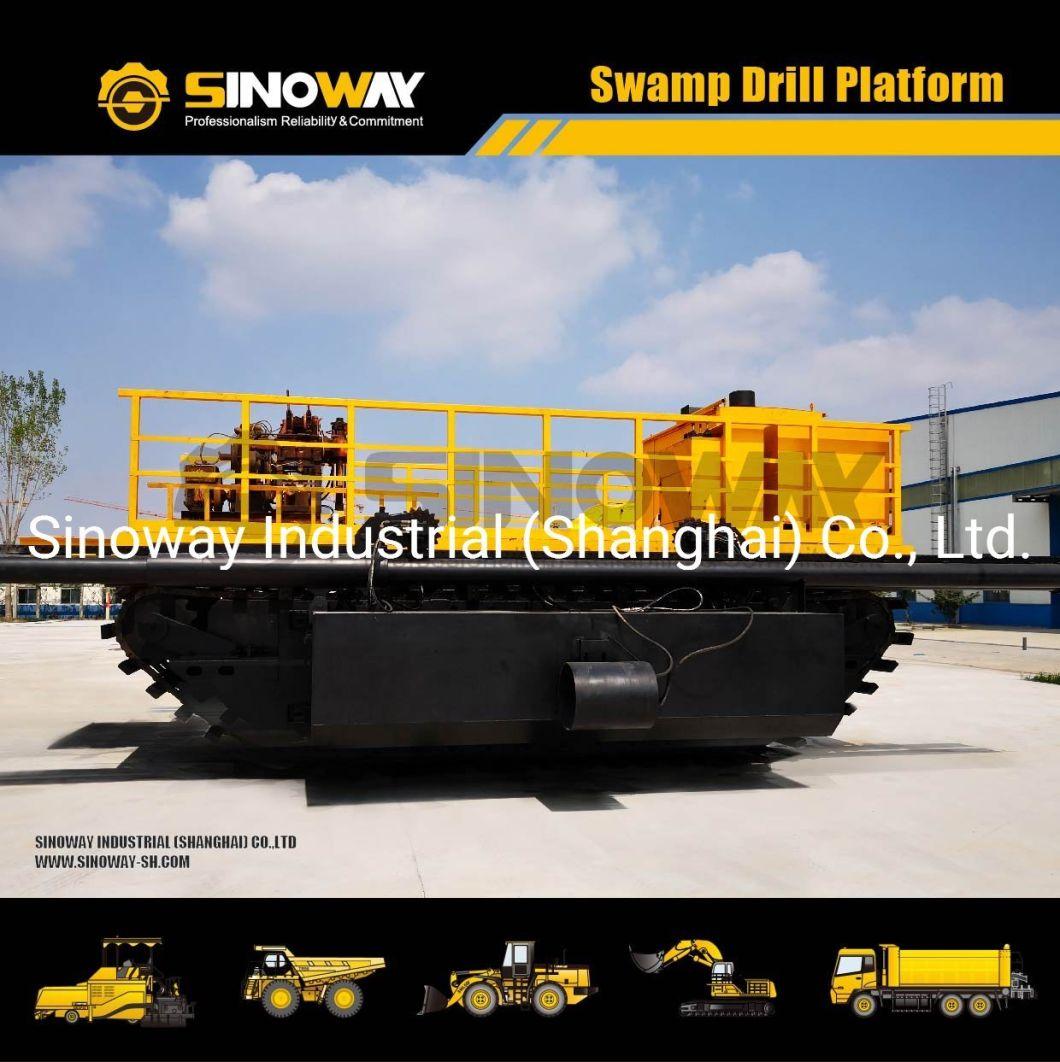

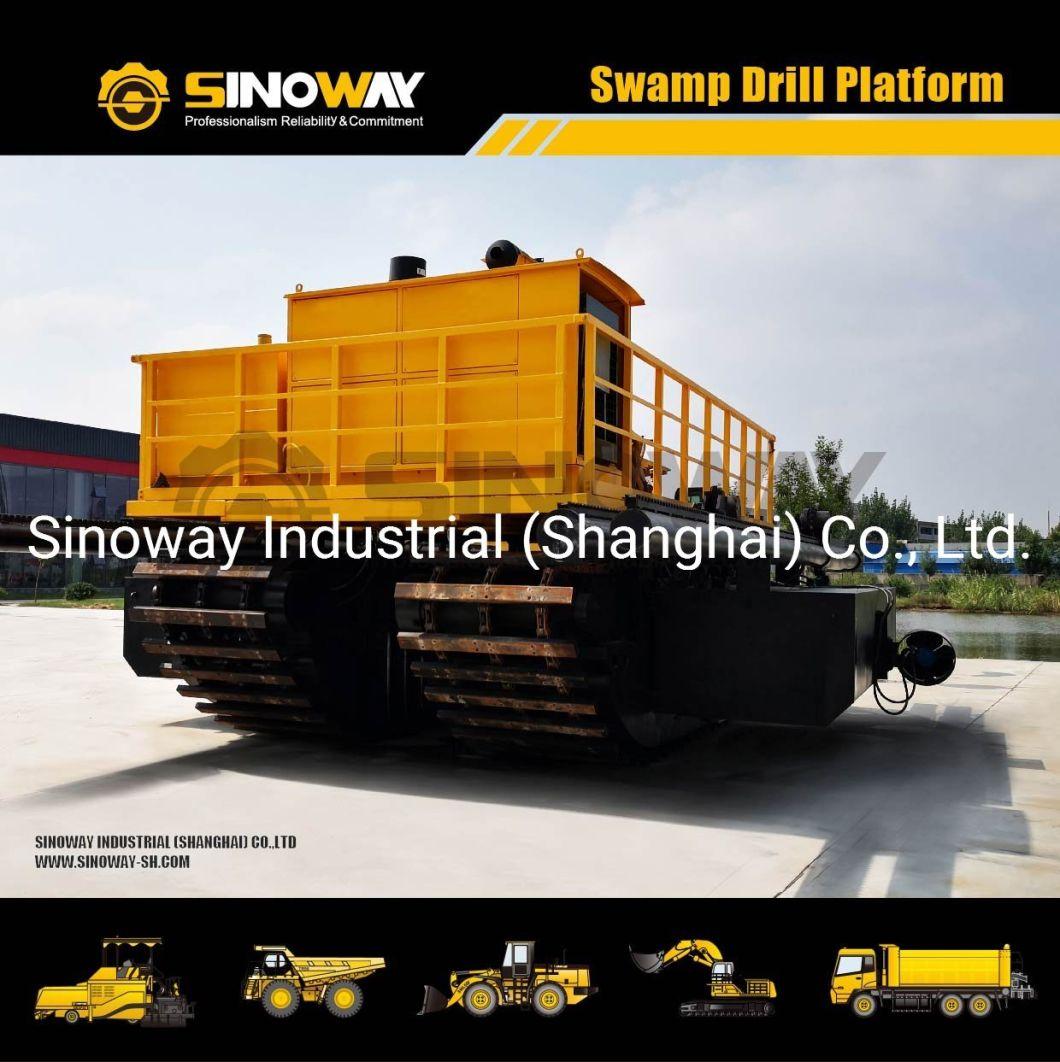

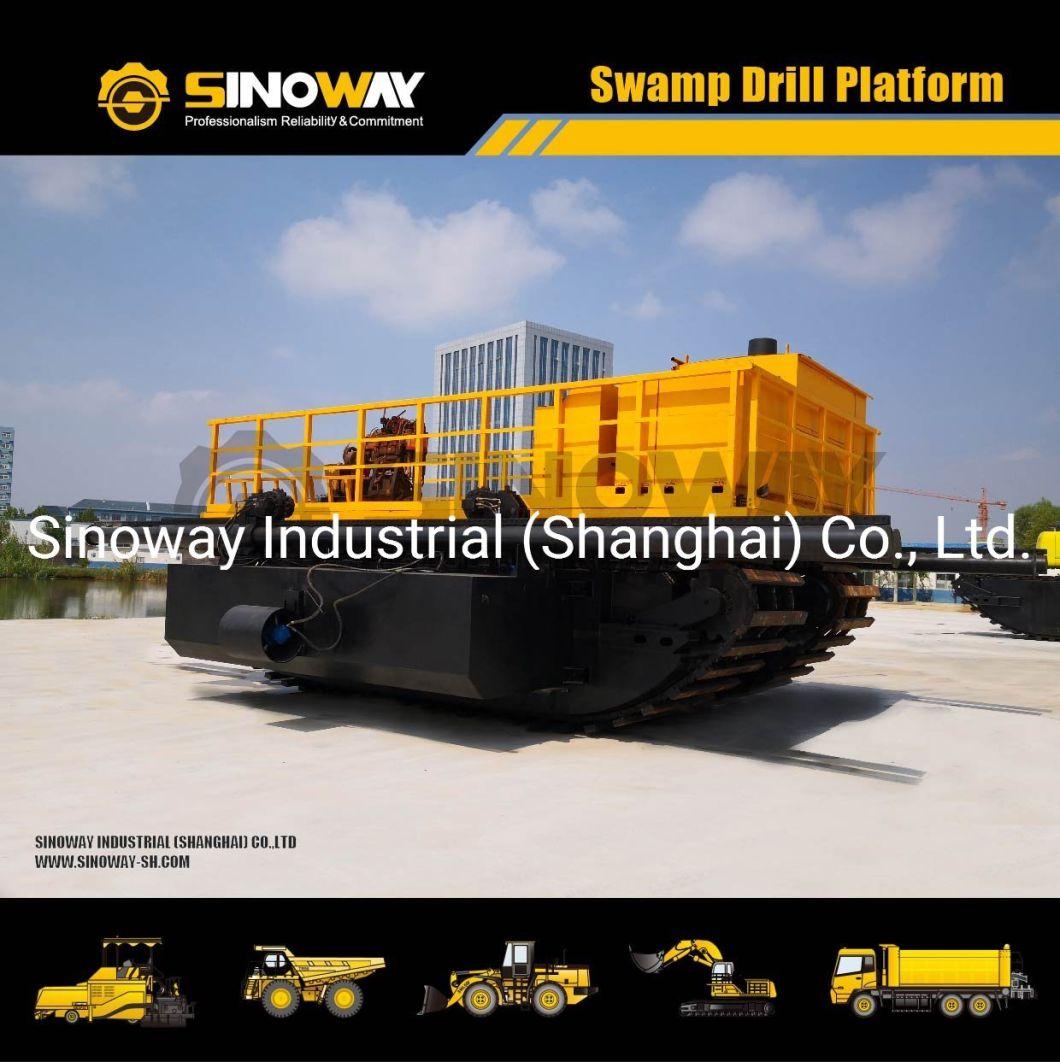

This amphibious buggy is equipped with heavy duty Cummins engine and Doosan hydraulic system. The platform comprises two tracked pontoon with heavy duty three strand chains for each, a deck area for drilling operating, a power pack to drive this big monster and jacking activities. Also, supplementary pontoons and hydraulic spuds piles can be fitted with according to client's need. The modular design allows to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft containers and both the assembly and disassembly processes can be achieved less than 3 hours if equipped with proper tools and crane.

High-strength weathering steel plate is used in the fabrication of the our pontoons. This steel had 5-8 times the atmospheric corrosion resistance and 30% more tensile strength than similar size A36 structural plate steel. Each pontoon has 3 manholes, providing 3 independent, watertight compartments. The bottoms of the pontoons are reinforced for rough terrain operations.
Machine Show





Specifications

Engine
Model	Cummins /Isuzu
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	133KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	42000Kg
Standard bucket capacity	1.1m3
Slewing speed 11rpm	11rpm
Stick digging force	110KN
Bucket digging force	150KN

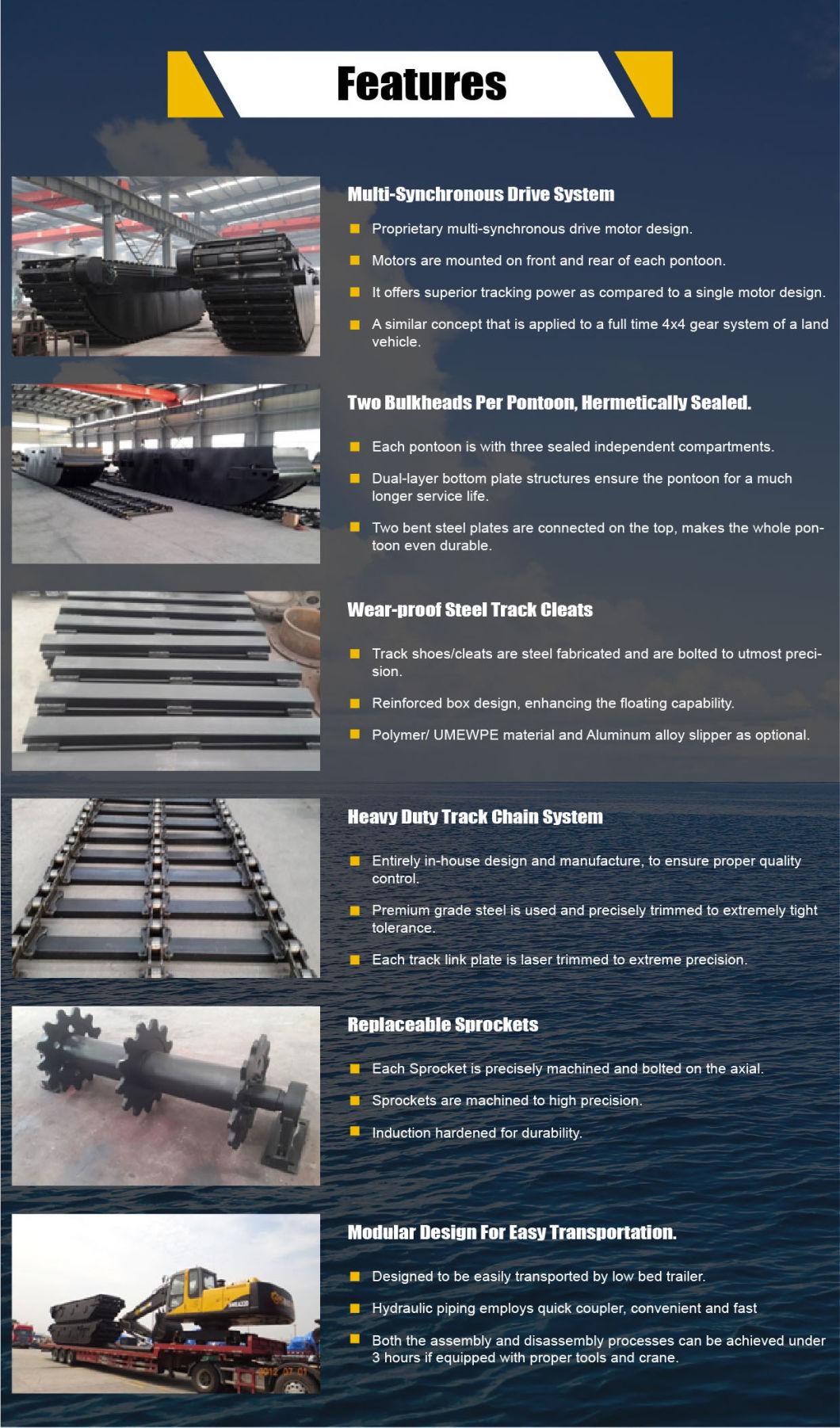

Main Features
Tracked pontoon structure
Big torque travelling device
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pump	KAWASAKI
Main valve	KAWASAKI
Motor	KAWASAKI
Hydraulic flow rate	2x235L/min
Hydraulic pressure	32MPa
Travelling System
Travelling speed	0~5.4km/h
Grade ability	65%
Ground pressure	0.0135MPa
No. of chains	3
Dimensions
Overall length	12100mm
Overall width	6000mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	10200mm
Width of pontoon	1760mm
Height of pontoon	1700mm
Operating Scope
Stick length	3000mm
A: Max. cutting height	10980mm
B: Max. dumping height	8140mm
C: Max. digging depth	6940mm
D: Max. reach	10290mm
