• Burst Pressure：220bar
• Wire Braid Hose Size：2"-5"
• Ply：4-Ply Wire Braided etc
• Life：15000-20000 Cbm
• Length：3--10m or Other Length
• Color：as Clients′s Required
• Material：Natural Rubber and Steel Wire
• Transport Package：Standard Export Package
• Specification：5"X85bar 4-layer wire 148mmSk
• Trademark：Ximai
• Origin：China
• HS Code：841391
• Production Capacity：500PCS,Per Day

Basic Info.

Burst Pressure 220bar Wire Braid Hose Size 2"-5" Ply 4-Ply Wire Braided etc Life 15000-20000 Cbm Length 3--10m or Other Length Color as Clients′s Required Material Natural Rubber and Steel Wire Transport Package Standard Export Package Specification 5"X85bar 4-layer wire 148mmSk Trademark Ximai Origin China HS Code 841391 Production Capacity 500PCS/Per Day

Product Description

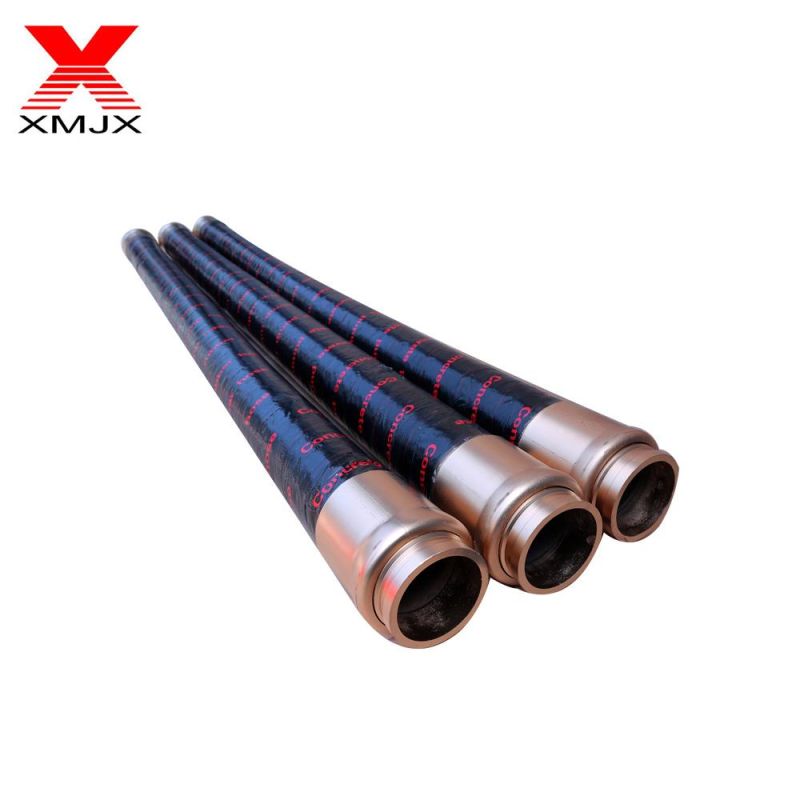

Product description...................................................................................................High quality rubber hose

Specifications

Size	Inner Diameter	Wall Thickness Tolerance	Outer Diameter	Working Pressure	Burstiong Pressure	Bend Radius	Weight
2"	50.0 mm	9.0±0.75 mm	68±1.50 mm	85 bar	240 bar	200 mm	2.60 kg/m
2.5"	64.0 mm	10.0±0.75 mm	85±1.50 mm	85 bar	240 bar	250 mm	4.30 kg/m
3"	76.2 mm	12.9±1.00 mm	102±1.50 mm	85 bar	240 bar	270 mm	6.10 kg/m
3.5"	89.0 mm	13.5±1.00 mm	116±1.50 mm	85 bar	240 bar	290 mm	8.00 kg/m
4"	101.6 mm	14.2±1.00 mm	130±1.75 mm	85 bar	240 bar	300 mm	9.00 kg/m
4.5"	115.0 mm	14.0±1.00 mm	143±2.00 mm	85 bar	240 bar	320 mm	10.20 kg/m
5"	127.0 mm	16.0±1.00 mm	158±2.00 mm	85 bar	240 bar	360 mm	12.50 kg/m
6"	150.0 mm	18.0±1.00 mm	168±2.00 mm	85 bar	240 bar	570 mm	14.85 kg/m

1.application:
used for high-rise buildings, highway, tunnel, water conservancy project , nuclear power station and so on construction machinery , concrete pump delivery concrete.

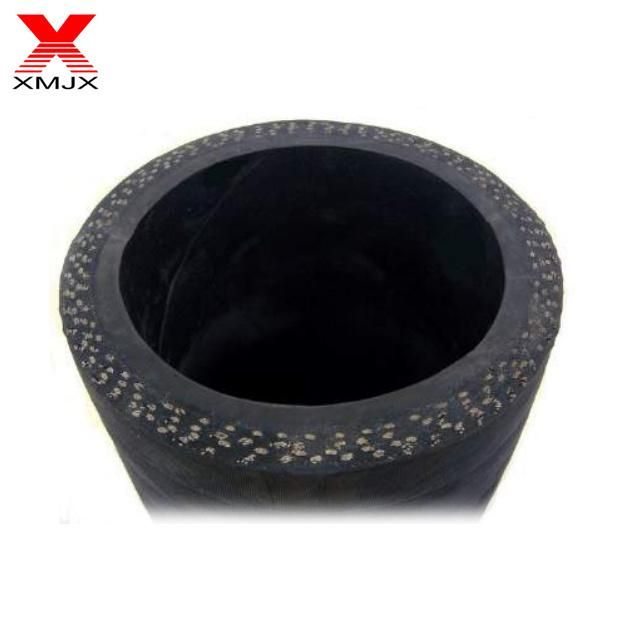

2. product structure: inner layer rubber, enhancement layer, outside layer rubber
(1) inner layer rubber:
 polyurethane and butyl rubber are the mainly material, and put in special reinforced material to make mixed rubber .its colour is black and transparent. With high wear resistance, high toughness, high pressure, smooth, and so on.The friction resistance of concrete Wipe, tube has the pressure transmission mmedium, wire protection from erosion effect.
(2) enhancement layer:
 4 layer of steel wire wound, the use of copper wire braided hose, bearing the work pressure is the ordinary hose 3-4 Times, with a high degree of resistance, flex features superior performance, enhancing effect.
(3) outside layer rubber:
Black, smooth (wrapped), SBR/NR compound, anti aging, wear resistance.
[material ] natural rubber and steel wire


Our service....................................................................................................................
 High Quality:
ISO9001, CE, CO certifications etc. All components adopt the qualified materials.
100% quality check and durable testing for every product before shipment.
Competitive PriceLarge scale production and well trained workers reduce cost greatly,
Ximai use the Bottom Price to make you become the most competitive seller in your region.

One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,
supplying related products so that can meet customers' needs.

Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.
We can have your urgent orders ready in short time.

Standard export packageOur package is in conformity with export requirements.
We ensure it's very safe and firm in the course of shipping.

Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,
all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

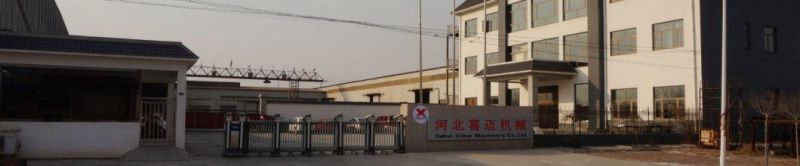

Production display.............................................................................................

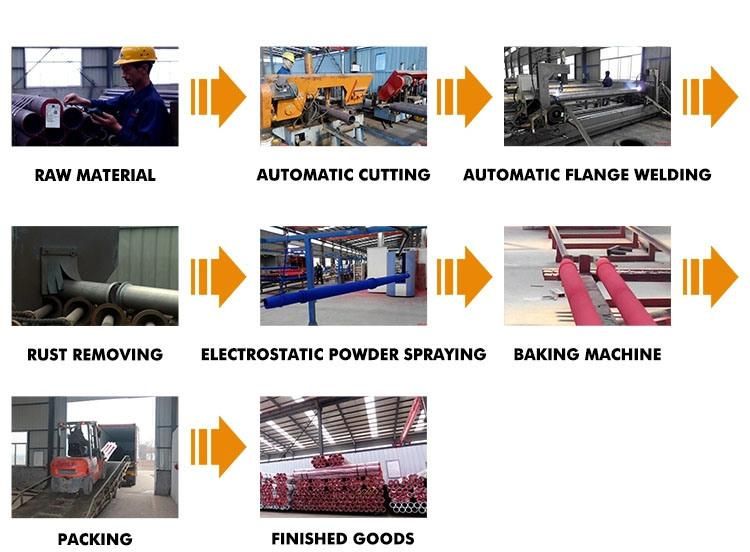

Product process............................................................................................................................................................

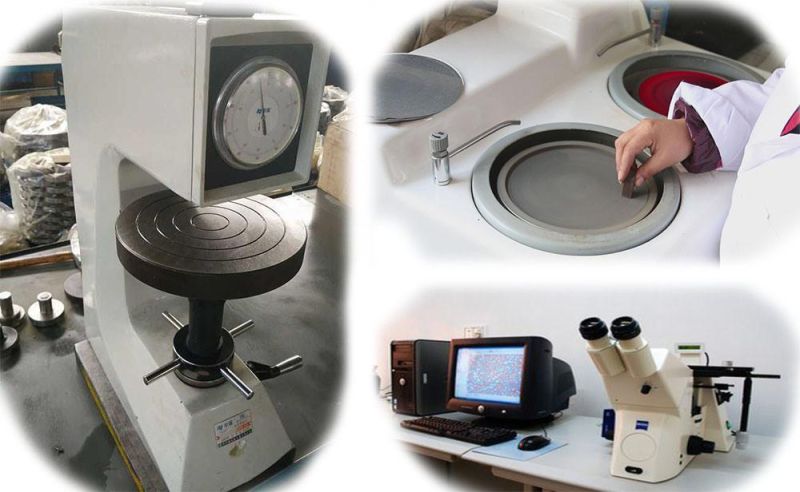

Product test..........................................................................................................................................................

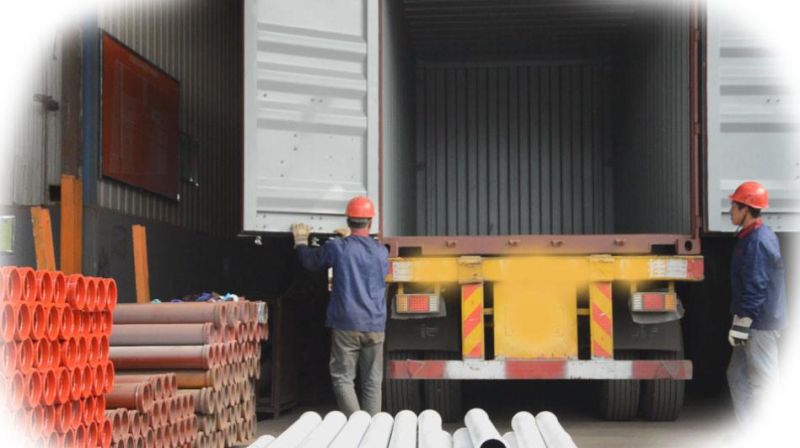

Packaging&Shipping.................................................................................................................................................














FAQ.....................................................................................................................................................................................

Q: Are you trading company or manufacturer ?

A: We are a factory.


Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
