• Model NO.：855H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Transport Package：Container
• Specification：5ton
• Trademark：LIUGONG
• Origin：China
• Production Capacity：50000units,Year

Basic Info.

Model NO. 855H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Transport Package Container Specification 5ton Trademark LIUGONG Origin China Production Capacity 50000units/Year

Product Description

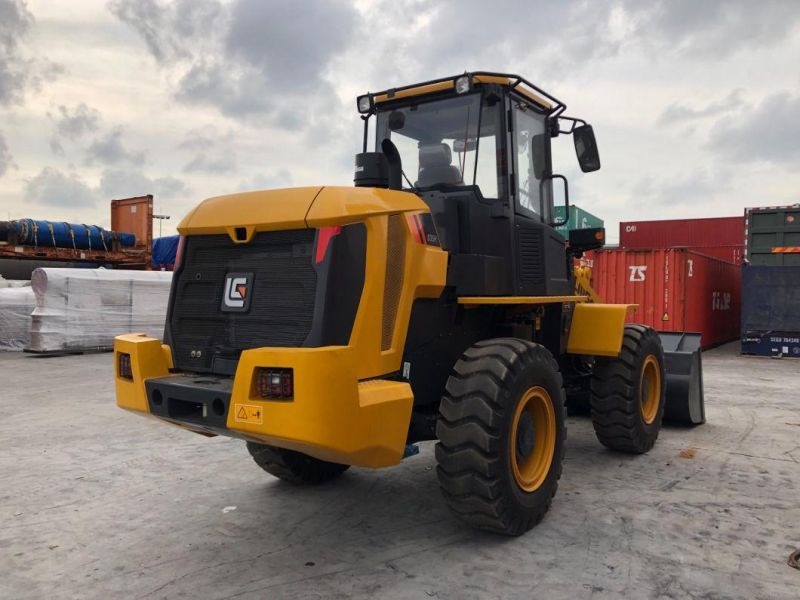

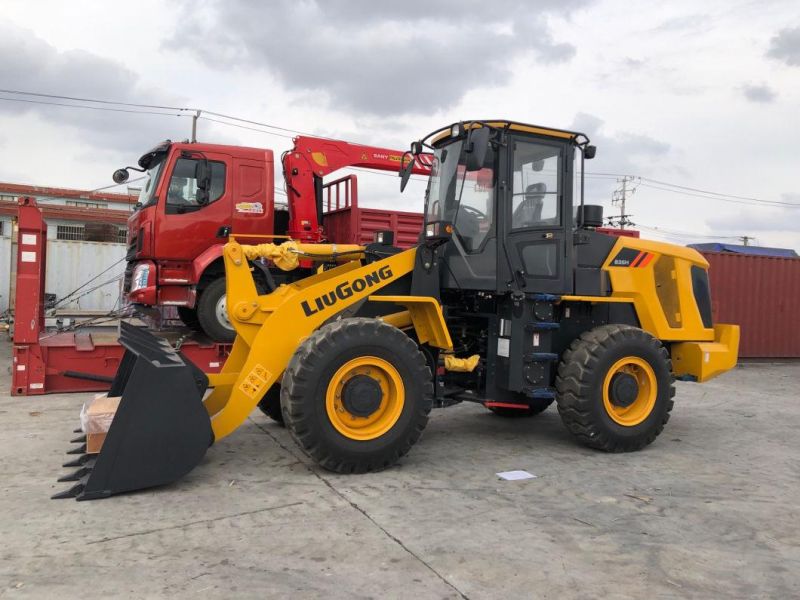

LIUGONG 855H Wheel Loader

• The engine is perfectly matched to the transmission chain and hydraulic system, for more efficiency and less wastage.
• The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
• 309° panoramic visibility gives the operator a very comfortable work environment in the cab. Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
• Single layer radiator and big range fin spacing for high efficiency and easy maintenance.

 Parameters

Operating weight

16504 kg

Standard bucket

3.0 m³

Gross power

162 kW (220 hp) @ 2000 rpm

Net power

152 kW (202 hp) @ 2000 rpm

Rated load

5000 kg

Total cycle time

10.3 s

Tipping load-full turn

11100 kg

Bucket breakout force

161 kN

Dump clearance, full height discharge

3037 mm

Dump reach, full height discharge

1169 mm

Model

Cummins 6LT9.3

Emissions

EPA Tier 2 / EU Stage II

Cooling system

Charge air cooling

Length with bucket down

8106 mm

Width over tires

2750 mm

Cab height

3500 mm

Turning radius, outside of tire

6086 mm

Bucket capacity

2.7-4 m³

General Purpose

3.0 m³

Light material

4.2, 4.7, 5.2 m³
