Lz-3ar Air Motor Dry Gunning Shotcrete Refractory Gunite Machine

Zhengzhou Lead Equipment Co., Ltd.
  • After-sales Service：Yes
  • Type：Shotcrete
  • Shotcrete Type：Dry
  • Machining Process：Welded Molding Machine
  • Structure：Rotor Type
  • Productivity：3m3,H

Base Info

  • Model NO.：LZ-3AR
  • Feeding Height：900mm
  • Certification：ISO9001: 2000, CE, SGS
  • Condition：New
  • Color：White
  • Frequency Converter Brand：ABB
  • Rated Output：1-3m3 ,H (2-6 Ton,H)
  • Max. Horizontal Conveying Distance：200m
  • Max. Aggregate Size：10 mm
  • Conveying Hose Inner Diameter：38mm
  • Operating Air Pressure：0.2-0.4MPa(29-58psi)
  • Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
  • Specification：ISO, CE, SGS
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：84743100
  • Production Capacity：5000 Sets,Year

Description

Rated Output1-3m3 /h (2-6 ton/h)Max. Horizontal Conveying Distance200mMax. Aggregate SizeΦ10 mmConveying Hose Inner Diameter38mmOperating air Pressure0.2-0.4MPa(29-58PSI)Air Consumption                   5~6m3/min(electric motor drive)
10-11m3/min(air motor drive)Engine                   4kw(electric motor 3 phase380V50Hz)
4kw (air motor)Material Charging Height1.1mRotor Speed13.2r/minOverall Dimension(L×W×H)         1.13×0.54×1.1mWeight430kg

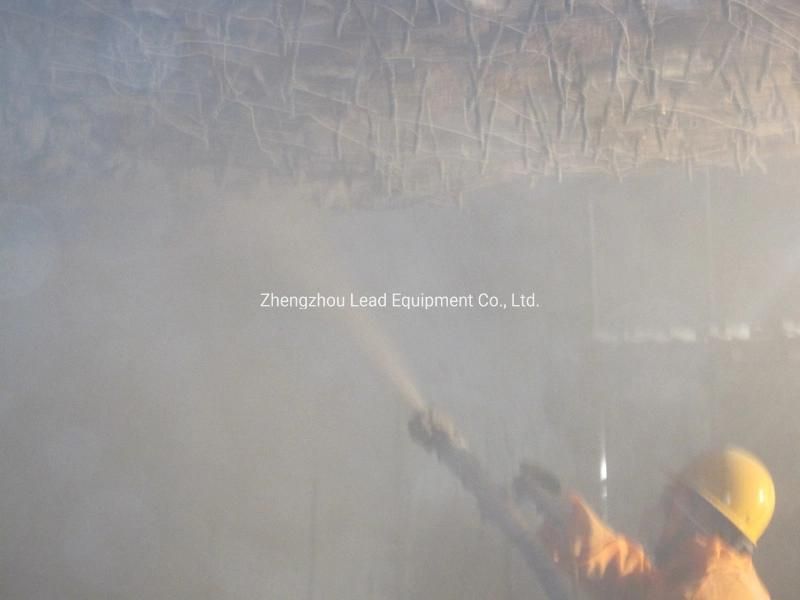

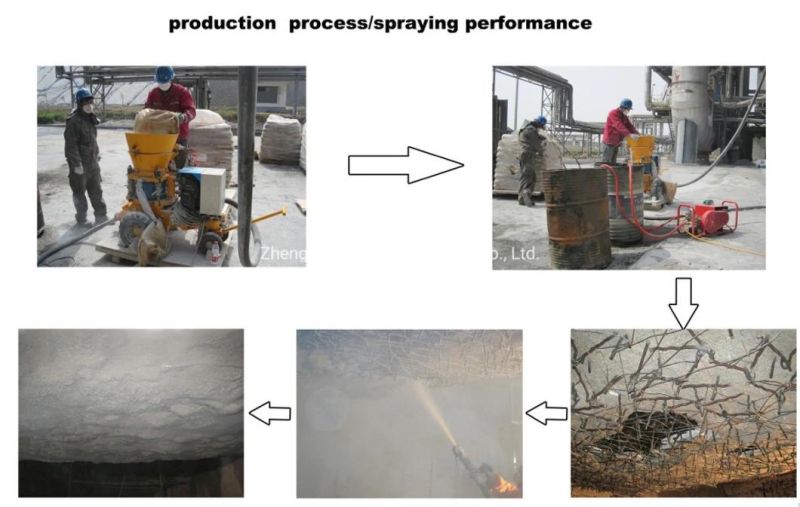

Application:
Lz-3ar Air Motor Dry Gunning Shotcrete Refractory Gunite Machine
Lz-3ar Air Motor Dry Gunning Shotcrete Refractory Gunite Machine
Lz-3ar Air Motor Dry Gunning Shotcrete Refractory Gunite Machine
