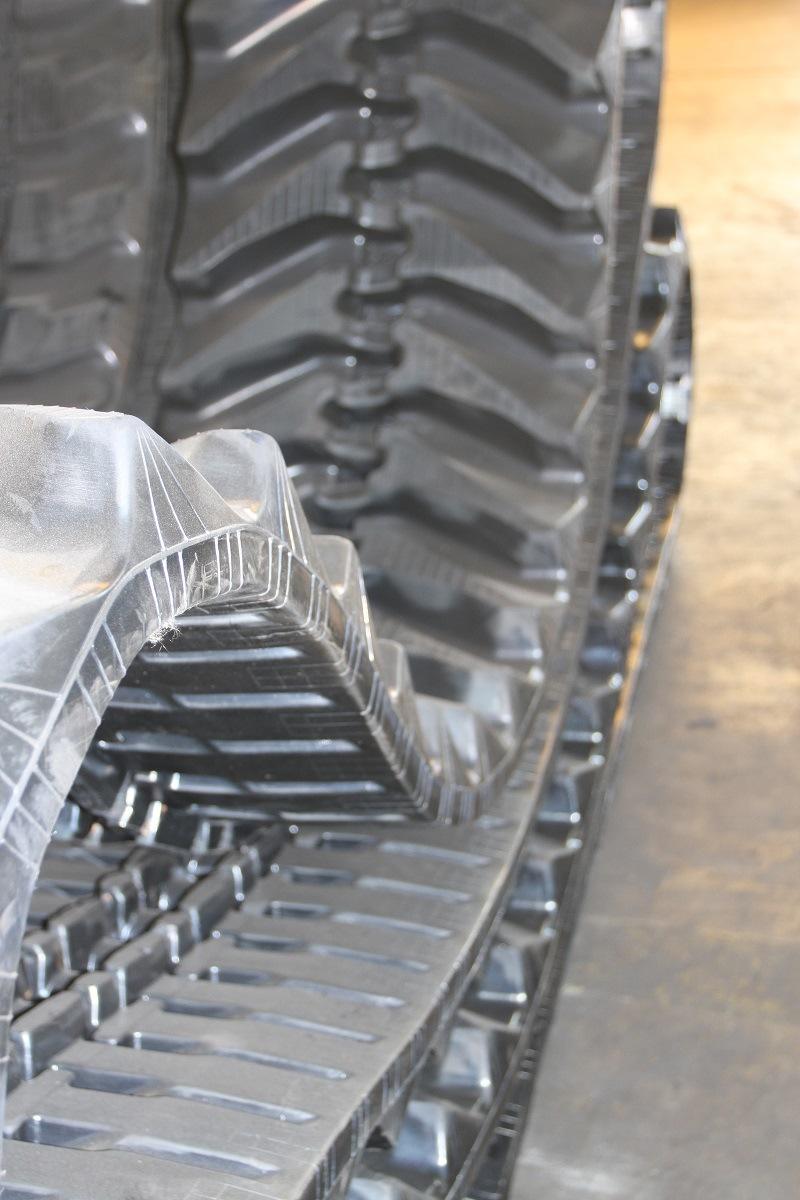

500mm Wide Customized Rubber and Steel Track with Superior Quality for Excavators
Shanghai Puyi Industrial Co., Ltd.- After-sales Service:Online support
- Warranty:One Year Under Normal Use
- Type:Crawler
- Application:Excavator
- Certification:ISO9001: 2000
- Condition:New
Base Info
- Model NO.:500x71Kx72
- Width:500mm
- Pitch:71mm
- Link:72
- Weight:540kg
- Color:Black
- Delivery:30days After Payment
- Export Market:Global
- Material:Rubber and Steel
- Transport Package:Bare Packing or Wooden Pallets
- Specification:500*71K*72
- Trademark:POOYERT , OEM
- Origin:Shanghai, China
- HS Code:8431499900
- Production Capacity:1000PCS,Month
Description
Basic Info.
Model NO. 500x71Kx72 Width 500mm Pitch 71mm Link 72 Weight 540kg Color Black Delivery 30days After Payment Export Market Global Material Rubber and Steel Transport Package Bare Packing or Wooden Pallets Specification 500*71K*72 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 1000PCS/MonthProduct Description
Product information1.Name of commodity | Puyi Rubber Tracks K500*71*72 for Excavators |
2.Width | 500mm |
3.Pitch | 71mm |
4.Links | 72 |
5.Total Length | 5112mm |
6.Weight | 540kg |
7.Material | Rubber & Steel |
8.Steel cord type | Continuous inner steel cord with joint free |
9.Warranty | Guarantee one year under normal use |

The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground
Than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibration, extending the service life of the machine and decreasing operator's fatigue
5. The ground pressure of rubber tracks equipped with machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on the wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of friction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed
We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate to send me a message and I will be very glad to be at your service.
Looking forward to receiving your inquiry.
Parameter for more size:
Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links |
130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 | 80 |
300*52.5N | 72-98 | Y400*72.5K | 72-74 |

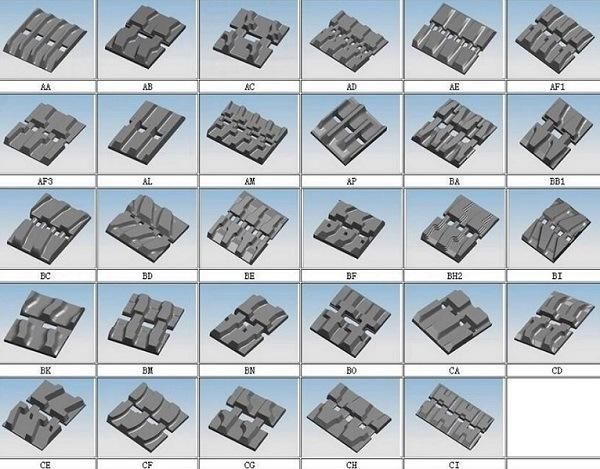

Patterns:
