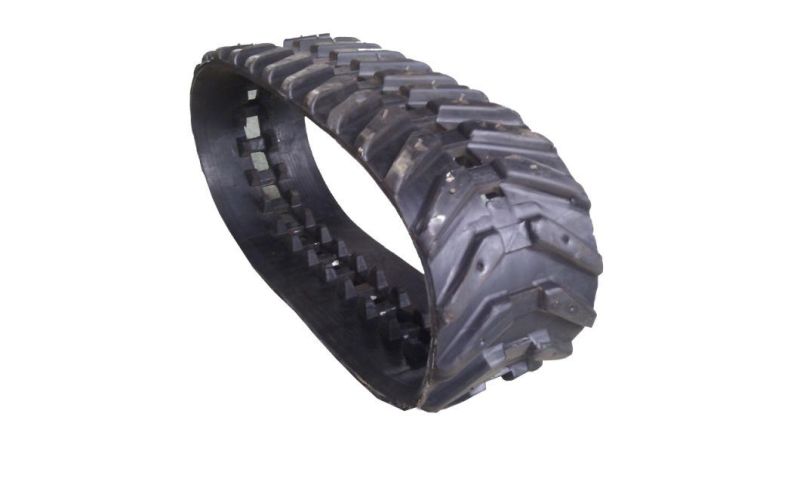

Snow Track Kit Rubber Track 160*60*31 Width 6′ Inch
Shanghai Puyi Industrial Co., Ltd.- Type：Crawler
- Application：Robot and Small Machinery
- Certification：ISO9001: 2000
- Condition：New
- Place of Origin：Shanghai, China (Mainland)
- Width：160mm
Base Info
- Model NO.：PY-160 (160*60*31)
- Pitch：60mm
- Link：31
- Length：1860mm (Length Can Be Adjusted)
- Sprocket：Can Be Customized
- Weight：25kg
- Delivery：30 Days After Payment
- Warranty：Guarantee 12 Months Under Normal Use
- Export Market：Global
- Transport Package：Bare Packing or Wooden Pallets
- Specification：160*60*31
- Trademark：POOYERT
- Origin：Shanghai, China
- HS Code：8431499900
- Production Capacity：5000 Per Month
Description
The feature of rubber tracks(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks and less rutting of the soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operating fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped with machinery can be fairly low, about 0.14-2.30 kg/ cm, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the same weight.
Parameter | Model | Size | Weight(kg)/Link | Model | Size | Weight(kg)/Link | Model | Size | Weight(kg)/Link |
| HS-32 | 32*12.7 | 0.0031 | HL-105 | 105*42 | 0.0572 | YT-200 | 200*52.5 | 0.3935 |
| BK-B | 40*9.3 | 0.0084 | CX-118 | 118*61 | 0.1625 | SQ-A | 220*53.5 | 0.2062 |
| HL-40 | 40*44 | 0.0268 | QD-118 | 118*60 | 0.122 | JH-220 | 220*85 | 0.9 |
| PY-40 | 45*31.75 | 0.0172 | SJ-120 | 120*61 | 0.1477 | JA-220 | 220*50.3 | 0.4 |
| PY-40 | 40*31.3 | 0.0163 | RN-120 | 120*60 | 0.125 | DY-250 | 250*50.3 | 0.3507 |
| LG-48 | 48*10 | 0.0042 | WG-123 | 123*38 | 0.0703 | LP-250 | 250*50.3 | 0.523 |
| DG-50 | 50*22.225 | 0.03 | GF-A | 125*19 | 0.0243 | CQ-255 | 255*72 | 0.4758 |
| GF-B | 50*19 | 0.0093 | DN-A | 130*18.5 | 0.0289 | FP-250 | 250*80 | 0.4897 |
| GMD-B | 50*20 | 0.0109 | WJ-130 | 130*40 | 0.1088 | WD-255 | 255*73 | 0.4549 |
| HGD-52 | 52*58 | 0.0474 | TH-136 | 136*45 | 0.0868 | SQ-B | 255*72 | 0.45 |
| JTDX-60 | 60*15.2 | 0.012 | WGJ-130 | 130*65 | 0.4348 | CF-280 | 280*60 | 1.9 |
| XL-60 | 60*13.9 | 0.59 | HBC-140 | 140*30 | 0.0334 | LEVE-280 | 280*87 | 0.4839 |
| LWM-60 | 60*22.225 | 0.023 | SL-140 | 140*80 | 0.2778 | KD-320 | 320*87 | 2.1607 |
| JQ-B | 60*12.7 | 0.0182 | JT-140 | 140*20 | 0.0332 | QATV-320 | 320*87 | 0.4688 |
| BF-B | 60*15 | 0.0073 | PW-148 | 148*60 | 0.2804 | WD-320 | 320*72 | |
| BK-A | 60*13.01 | 0.0178 | ZY-148 | 148*60 | 0.4445 | TG-320 | 320*87 | 0.9412 |
| DN-B | 60*18.5 | 0.0088 | XF-A | 150*59 | 0.2051 | TJ-360A | 360*87 | 0.8285 |
| JT-60 | 60*20 | 0.0125 | NG-150 | 150*65 | 0.3095 | NY-380 | 380*65 | 0.7854 |
| JQ-A | 76*12.7 | 0.0158 | SF-150 | 150*72 | 0.3781 | YQZG-400 | 400*73 | |
| BF-A | 80*15 | 0.0112 | XF-B | 150*59 | 0.2178 | QATV-400 | 400*87 | 1.25 |
| HL-80 | 80*44 | 0.055 | LEVE-160 | 160*60 | 0.8065 | TK-560 | 560*105 | 3 |
| SMX-70 | 70*40 | 0.0636 | YSD-165 | 165*64.5 | 0.3612 | DNS-580 | 580*60.5 | 0.675 |
| CHJ-80 | 80*40.2 | 0.0817 | WJ-165 | 165*65.5 | 0.2989 | XLG-620 | 620*100 | |
| TH-85 | 85*59.4 | 0.08 | WHKD-170 | 170*64 | 0.2419 | BV206 | 620*90.6 | 3.125 |
| THG-85 | 85*59.4 | 0.1072 | LEVE-180 | 180*65 | 0.3571 | WZY-800 | 800*90.6 | |
| GMD-A | 100*20 | 0.0242 | YN-180 | 180*72 | 0.4729 | KCM-500 | 500*110 | 2.9836 |
| BD-B | 100*40 | 0.0454 | HC-200 | 200*60.2 | 0.3 | |||
| BD-A | 100*40 | 0.08 | HS-200 | 200*72 | 0.75 |
