• Material：Rubber and Steel
• Width：650mm
• Pitch：120mm
• Links：78
• Length：9360mm
• Weight：1099.8kg
• Transport Package：Pallet or Bare Packaging
• Specification：650*120*78
• Trademark：POOYERT
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：1000 Pieces,Month

Basic Info.

Material Rubber and Steel Width 650mm Pitch 120mm Links 78 Length 9360mm Weight 1099.8kg Transport Package Pallet or Bare Packaging Specification 650*120*78 Trademark POOYERT Origin Shanghai, China HS Code 8431499900 Production Capacity 1000 Pieces/Month

Product Description

Dumper Rubber Track 650*120*78

Size:Width650mm*Pitch Length120mm*Links78
Weight:1099.8kg



DUMPER TRACK

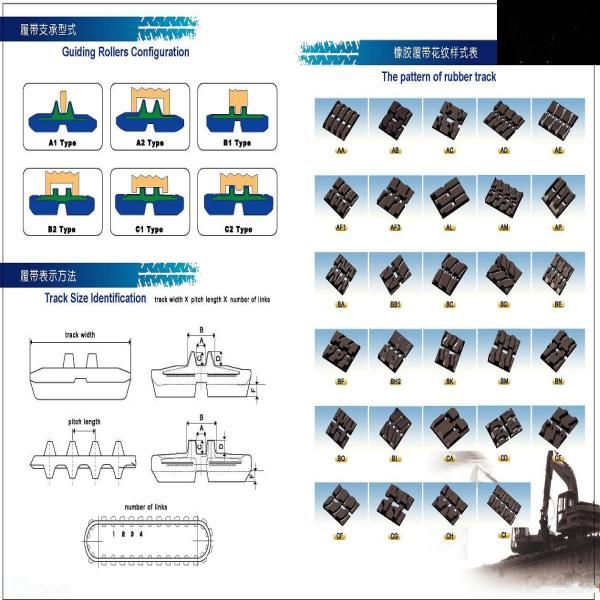

size width*pitch	link	A	B	C	D	F	pattern	guiding
320*90	52-56	32	86	50	35	28	AA	A2
U320*90	56-76	37	85	47	32	29	AA	A2
320*100	38-54	29	74	30	25	23	BN	A2
320*100W	37-65	38	80	34	25	22	CD	A2
350*100	49-60	45	112	45	48	27	AA	A2
U380*90	56-76	34	85	48	34	30	AA	A2
420*100	50-58	49	99	50.5	36	25	AA	A2
450*110	74	45	120	64	55	21	AL	A2
500*90	76-82	42	94	51	36	30	AA	A2
500*100	71	45	112	57	54	45	AL	A2
600*100	76-80	44	113	60	49	36	AL	A2
600*125	56-64	43	124	76	61	30	AL	A2
650*110	88	48	114	76	60	34	AL	A2
650*120	78	44	130	91	69	38	AL	A2
700*100	80-98	48	125	75	58	50	AL	A2
700*125	56-64	55	144	68	56	32	AL	A2
750*150	66	62	176	94	68	38	AL	A2
800*125	80	62	175	95	88	32	AL	A2
M800*150	66-68	60	148	73	71	35	AL	A2
K800*150	67-70	80	189	108	78	35	AL	A2
900*150	68-80	80	200	101	66	48	AL	A2
1000*150	86	78	210	101	58	37	AL	A2

Packages:




1. Type of rubber tracks:

1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane,

crawler carrier vehicle,Agriculture machinery, paver and other special machine


2. The feature of rubber tracks:

(1). Less round damage

(2). Low noise

(3). High speed.

(4). Less vibration

(5). Low ground pressure

(6). Superior traction


About Us:

Our plant mainly produce Rubber Track which are specially good use for these kind of Machine:

Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch Paver,

Agricultural Harvester, Dumpers...Etc.
