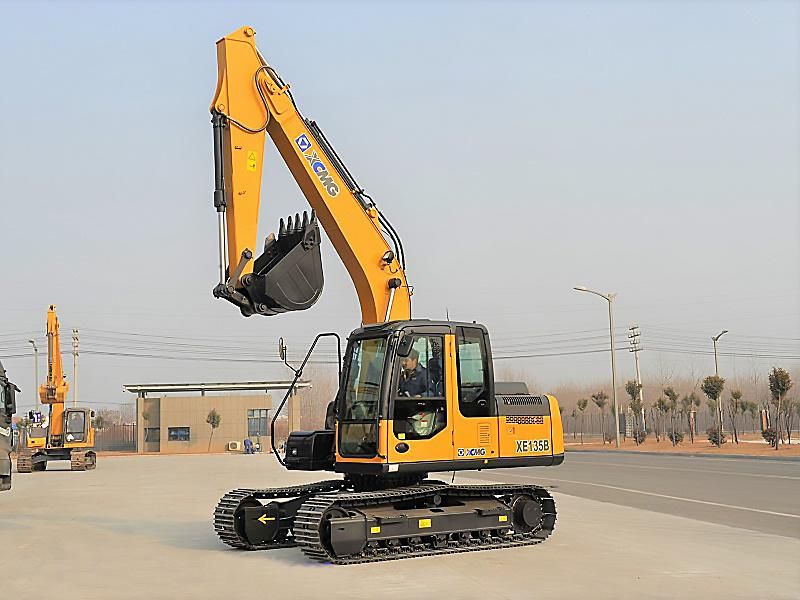

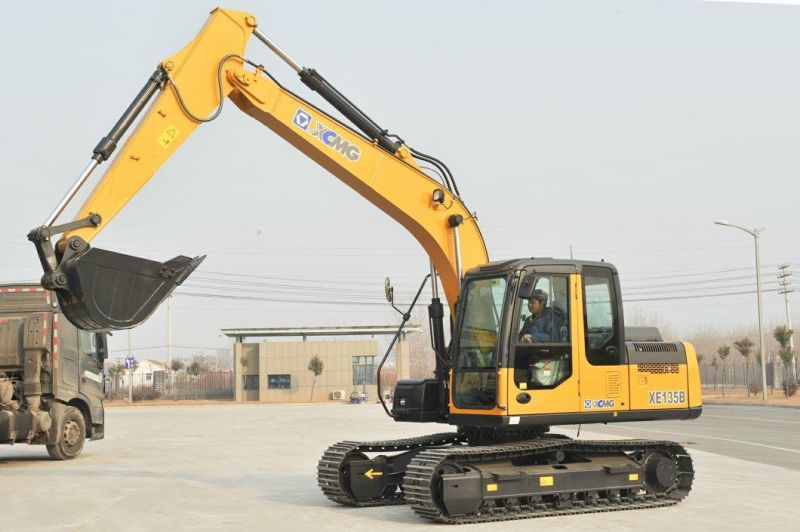

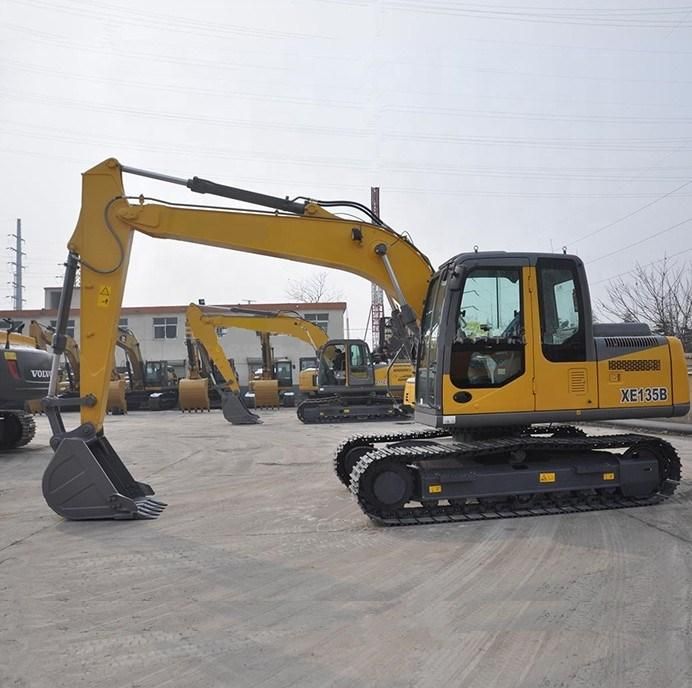

XCMG Official Xe135b 13ton Hydraulic Crawler Digger Excavator with Isuzu Engine
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service：Overseas Service Center Available
- Warranty：1year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：XE135B
- Drive Type：Internal Combustion Drive
- Bucket Capacity：>1.5m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight：13000kg
- Engine Model：Isuzu
- Transport Package：Comply with Export Packaging Requirements
- Specification：7770*2512*2880mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：87059091
- Production Capacity：1000,Year
Description
Overview
Product DescriptionModel / BB-4BG1TRP No. of cylinders / 4 Output power kw/rpm 72.7/2200 torque/speed N.m 337.6/1600 Displacement L 4.329 Hydraulic system Main pump / 2 Rated flow of main pump L/min 2×123 Pressure of prime valve MPa 31.4/34.3 Pressure of travel system MPa 34.3 Pressure of swing system MPa 25 Pressure of pilot system MPa 3.9 Oil Capacity Fuel tank capacity L 250 Hydraulic tank capacity L 130 Engine oil capacity L 14 Appearance size Overall length mm 7770 Overall width mm 2512 Overall height mm 2880 Width of platform mm 2512 Length of crawler mm 3660 Overall width of chassis mm 2490 Width of crawler mm 500 Track length on ground mm 2910 Crawler gauge mm 1990 Clearance under counterweight mm 964 Min. ground clearance mm 478 Min. tail swing radius mm 1805 Height of track mm Working scope Max. digging height mm 8641 Max. dumping height mm 6181 Max. digging depth mm 5538 Max. vertical wall digging depth mm 4727 Max. digging reach mm 8296 Min. swing radius mm 2335 Worker Length of boom (Standard) mm 4600 Length of arm (Standard) mm 2510 Bucket capacity (Standard) m³ 0.52 Length of boom (Optional) m³ / Length of arm (Optional) m³ / Bucket capacity (Optional) m³ 0.4
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
Product Parameters
Engine
Company Profile
FAQ1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
