Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Certification：TUV, ISO, CE, SGS,Rops&Fops
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic

Base Info

  • Model NO.：HQ920
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader
  • Loading Weight：2000-2500kg
  • Engine：Yunnei 65kw or Euro 5 or EPA 4 for Option
  • Operating Weight：5500kg
  • Cabin：Rops&Fops
  • Size：5900*2100*2860mm
  • Max Driving Speed：32km,H
  • Joystick：Electric Joystick with Button
  • Transport Package：2 Units in One Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Specifications of HQ920 wheel loader :1,Engine Details Model:Yunnei engine or Euro 5 or  EPA 4  for optionEngine type:Vertical, in-line, water cooled, 4-stroke diesel engineRated Power:65kwRated Speed: 2400 r/p. Min (rpm) 2,Transmission SystemTorque conventerYJ _ 280Agearbox modelCountershaft power-shiftgear shift2 forward shift  2 reverse shiftmaximum speed32km/h3,Bucket Bucket Capacity:1.2m3Bucket width:1900mmBucket type:Heavy-duty bolt on teeth Max. Breakout Force: 68KN Rated Load: 2000-2500kg Operating Weight:5500kg4,Overall Dimensions  Overall Length (Bucket on ground position):5900mmOverall Height : (a) Ground to Cab Top:2860mm(b) Dumping Height: 3200mm(c) Overall Width: 2010mm5, Operating Specifications Steering System:Articulated Frame with hydraulic power steering Min Turning Radius:4600mm Driving System: Hydraulic converter 6,Brake System Service Brake: Four Wheel Hydraulic spread-shoed brake Parking Brake: Hand operated7,Tyre  Model:16/70 -20 or 16/70-248,Wheelbase : 2350mm9,Track:1500mm

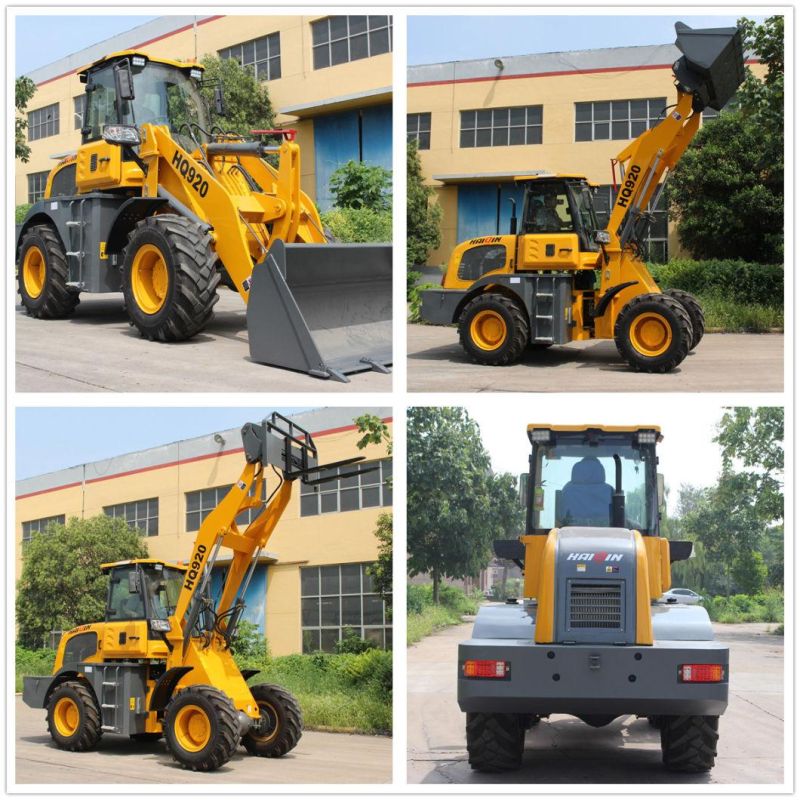

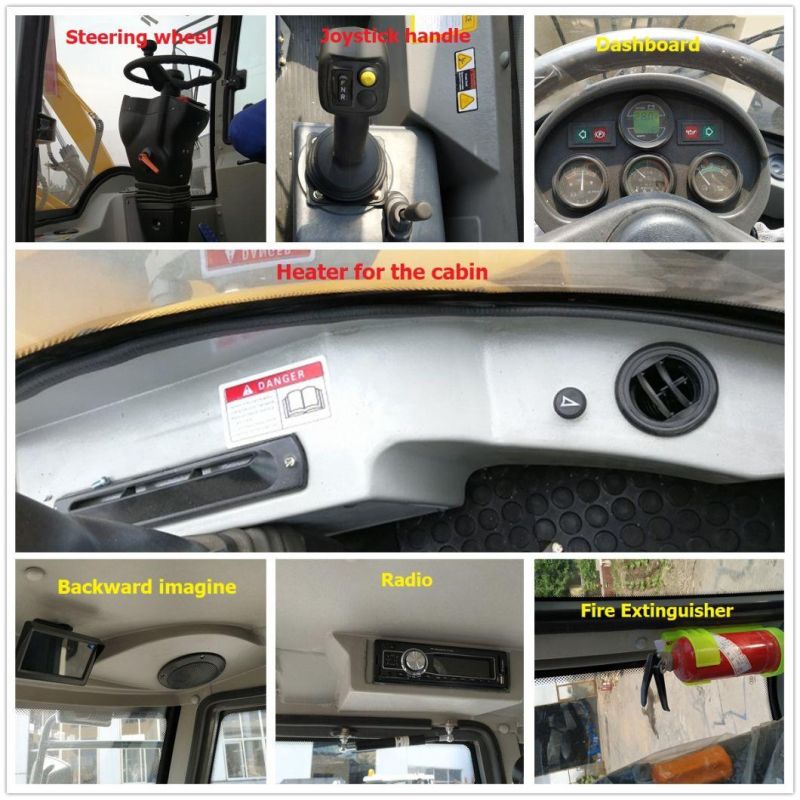

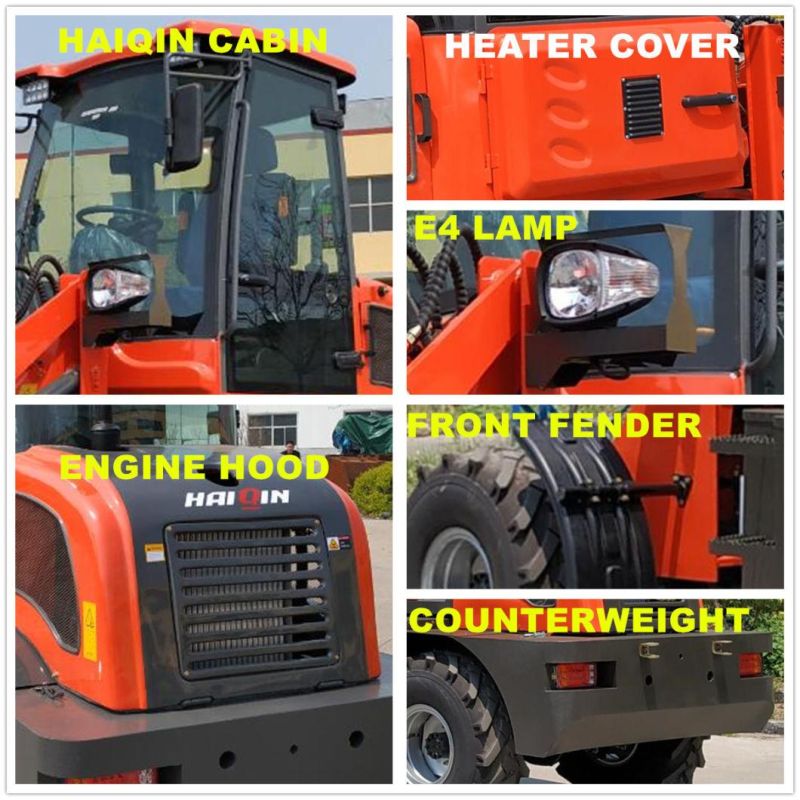

3, Details Photos of HQ920 Wheel Loader

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader
Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

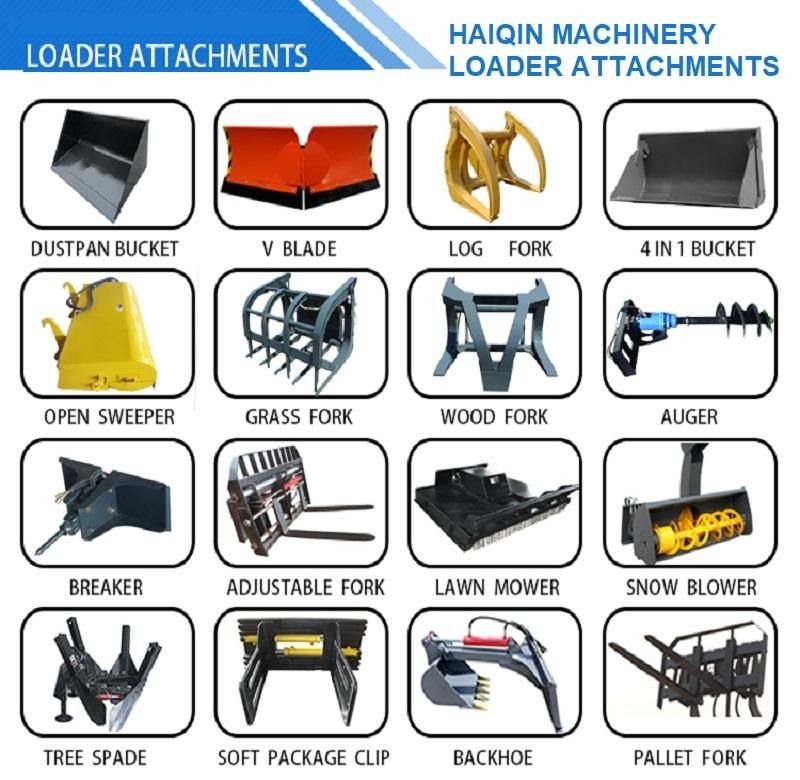

4,Optional Attachments for HQ920 Wheel Loader:


Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

5, Feedback from HaiQin's Customers

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader
6, HaiQin Machinery Participating in foreign Machinery Exhibitions

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

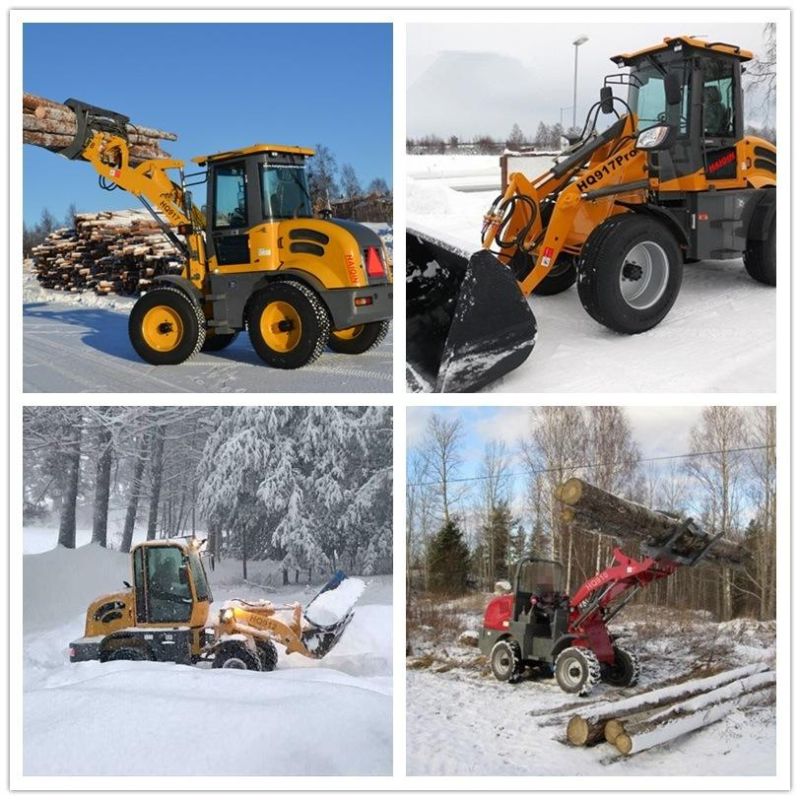

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

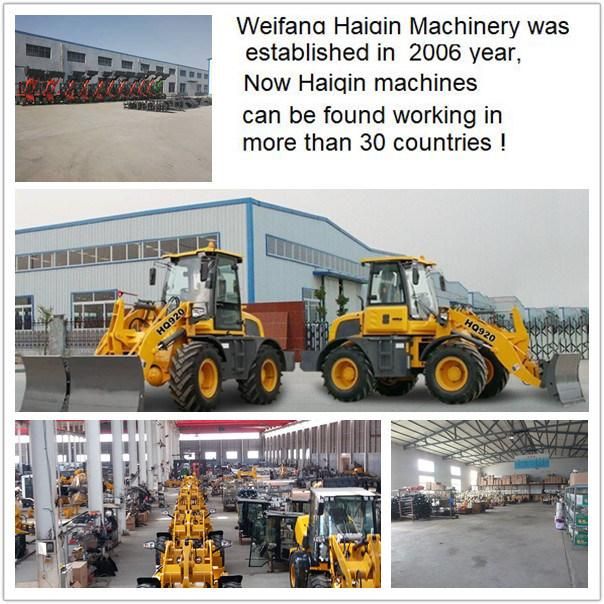

8,Factory introduction of Haiqin Machinery

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader

9,Certificate of Haiqin Machinery

Made in China (HQ920) with Wood Grapple Fork Kingway Wheel Loader


10, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then good after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
