• Model NO.：SWG130
• Diesel Engine：Cummins
• Steering：Articulated
• Usage：Universal Type
• Engine Power：130HP
• Color：Yellow
• Blade Width：3355mm
• Warranty：1 Year
• Brand：Sinoway
• Transport Package：Nude
• Specification：ISO2008
• Trademark：SINOWAY
• Origin：China
• HS Code：84292090
• Production Capacity：1000 Units Per Year

Basic Info.

Model NO. SWG130 Diesel Engine Cummins Steering Articulated Usage Universal Type Engine Power 130HP Color Yellow Blade Width 3355mm Warranty 1 Year Brand Sinoway Transport Package Nude Specification ISO2008 Trademark SINOWAY Origin China HS Code 84292090 Production Capacity 1000 Units Per Year

Product Description

Main Advantages of SINOWAY SWG130 Grader

SWG130 motor grader is a product developed on the basis of F105 motor grader imported from O&K company of Germany. It is also the land leveler with the smallest engine power, which is mainly used in the urban streets, rural roads, mountain roads, narrow working face project site foundation and road guarantee projects.
 Cummins engine is adopted. Good power performance, sufficient backup power. In addition, Cummins's global supporting supply, maintenance service network and quick after-sales service guarantee completely eliminate the worries of land leveler users,
ZF tech. transmission gearbox is adopted, the structure is simple and reliable, the shift direction has buffer, so as to avoid large impact load on transmission components.
The three-stage split rear axle made by Tiangong is equipped with the company's patented nospin non slip differential. Even if one side of the wheel slips, the other side of the wheel can still provide enough traction.
The frame adopts the whole hot press forming and numerical control welding to improve the rigidity of the frame.
The double pump and double circuit operation hydraulic system makes the left and right lifting cylinders realize synchronous and sensitive operation, and the structure is simple and convenient for maintenance. The configuration of HUSCO multiway valve is of reliable quality.
Independent full hydraulic constant current steering system, steering speed is not affected by engine speed.  The large front wheel steering angle and frame hinge angle make the turning radius of SWG130 motor grader small and flexible, especially suitable for the construction of narrow construction site.
It adopts the traditional air top oil drive, shoe brake and the rear wheel side brake system, and the brake performance is reliable.
The service life of blade can be more than doubled by using heavy blade.
The anti tipping cab is equipped with French "F" green anti ultraviolet glass for comfortable and safe operation.

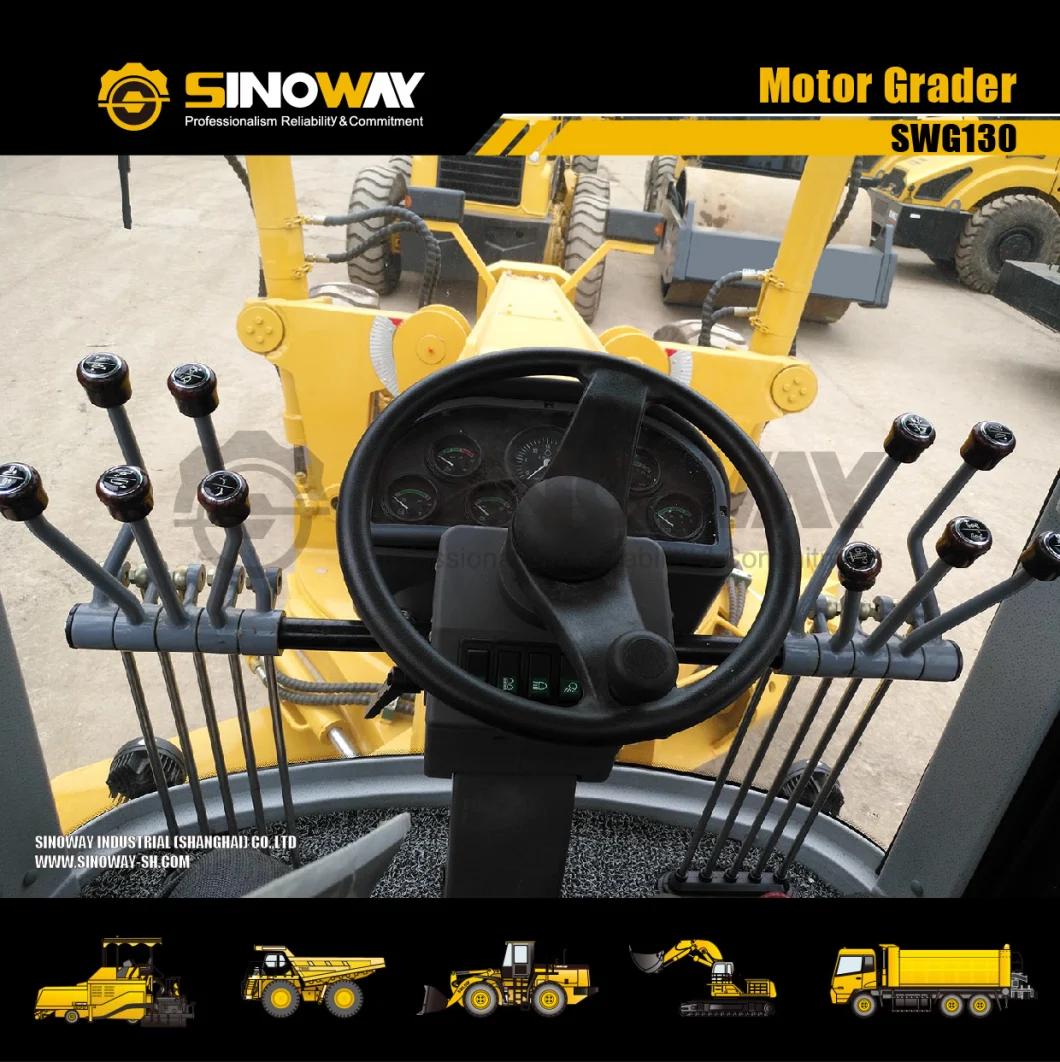

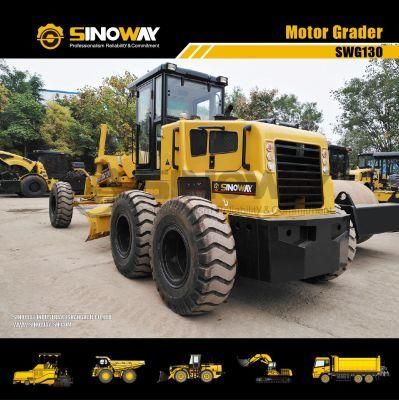

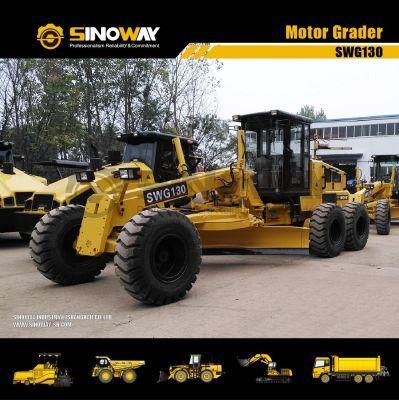

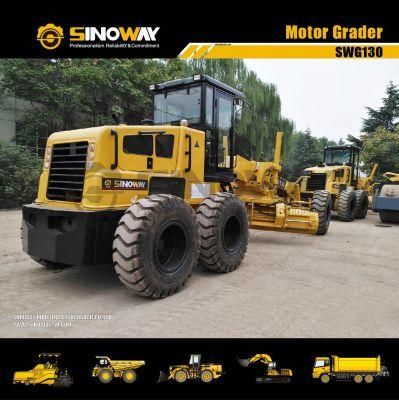

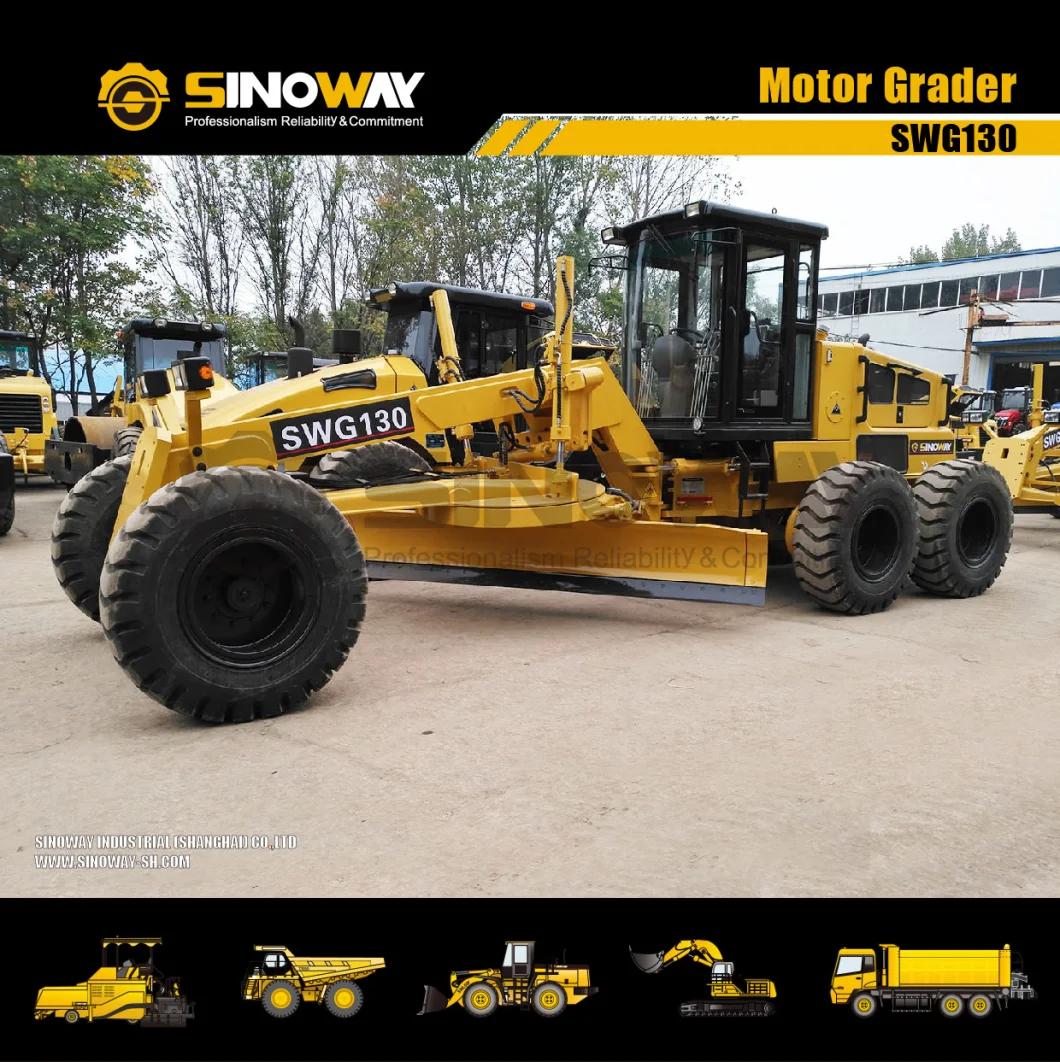

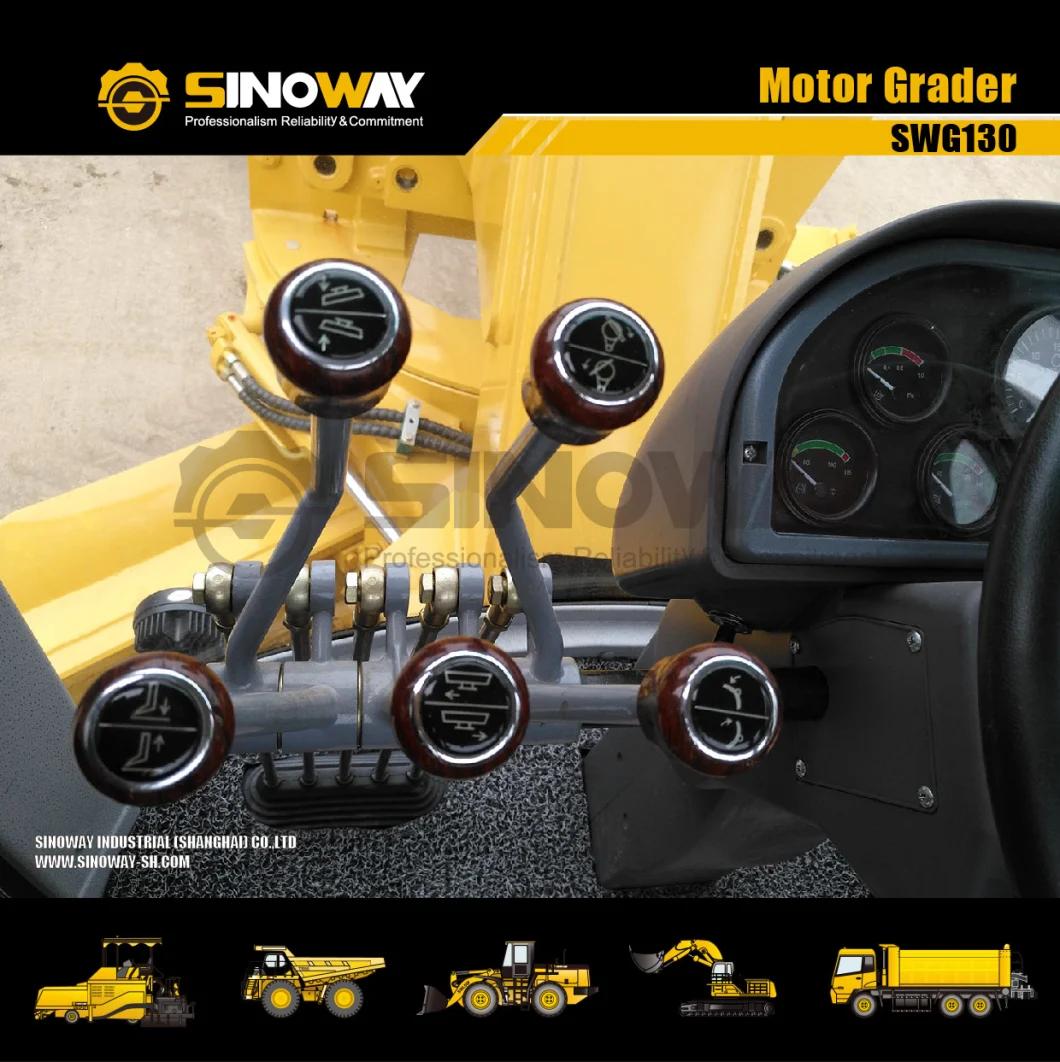

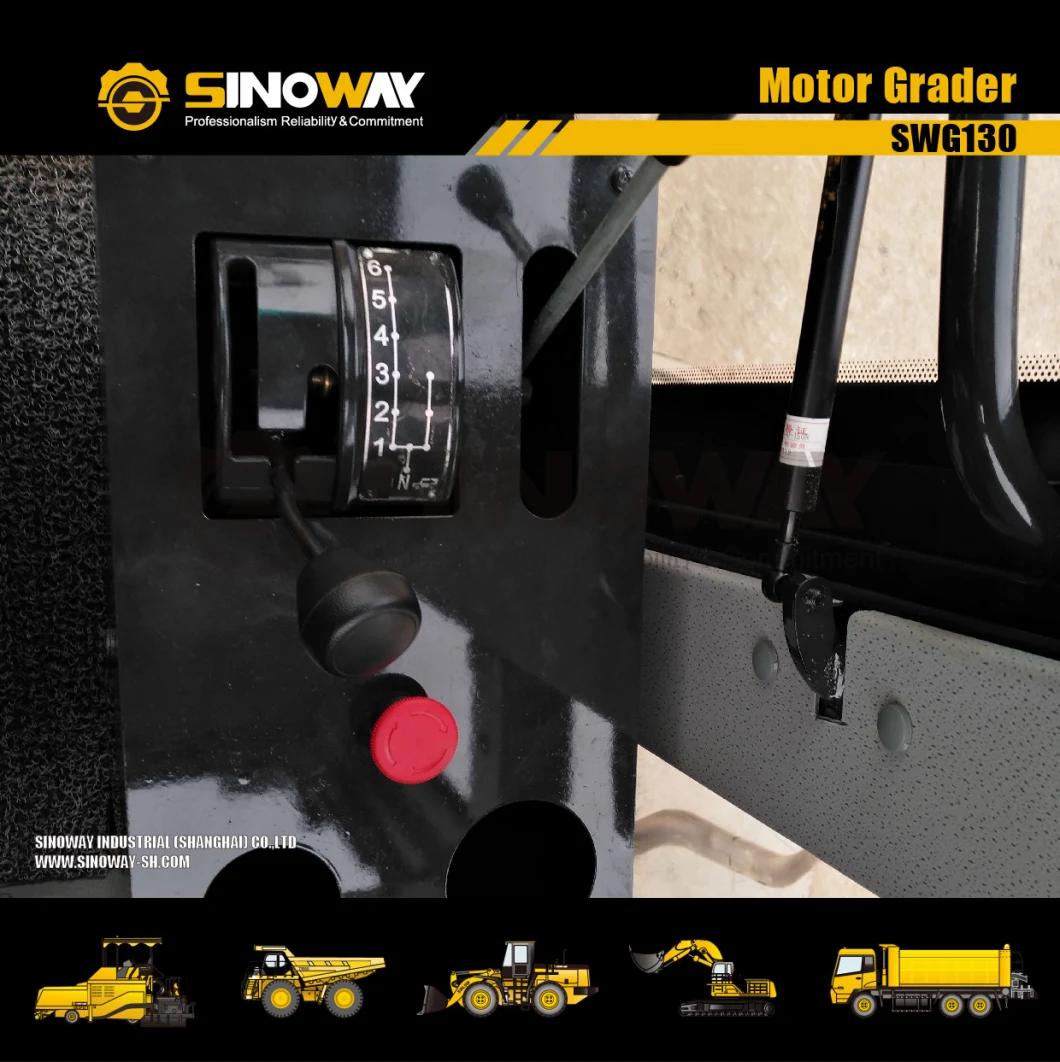

Product Show






Specifications


Engine
Model	Cummins 6BT5.9
Type	Six-cylinder,water-cooled,turbocharged,mechanical injection
Rated power	100KW
Rated speed	2300rpm
Transmission System
Type	3 elements, single stage
Torque ratio	1.5~3
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F4/R4
Forward/Reverse I	5.7/5.7
Forward/Reverse II	12.4/12.4
Forward/Reverse III	25.69/25.69
Forward/Reverse IV	41.5/41.5
Steering System
Turning radius	45º(L/R)
Articulated steering angle	6.7m
Drive type	25º(L/R)
Front wheel steering angle	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	520mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Three stages with No-SPIN differential
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	16.8MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	50.4KN
Ground penetration	420mm
Blade width	3355mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	10650kg
Braking System
Service brake	Hydraulic caliper disc brake actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	7800mm
Overall width(wheel outside)	2400mm
Overall height	3245mm
Wheel base	5468mm
Front tread	1860mm
Rear tread	2100mm
Tyre size	16/70-20
Service Capacities	7800
Fuel tank	150L
Engine crank case	19L
Hydraulic tank	90L
Gear box	15L
Rear axle	22L
Balance box	15L(each)
Worm gear case	2L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
