• Model NO.：SG21-3
• Rated Power：210HP
• Dimession：9430*2600*3400mm
• Operating Weight：17t
• Minimum Turning Radius：8200mm
• Blade Lengh：3660mm
• Brand：Shantui,Acntruck
• Engine：Cummins
• Speed：5.4~39.7km,H
• Transport Package：Container
• Specification：210hp
• Trademark：ACNTRUCK,SHANTUI
• Origin：China
• HS Code：873001101
• Production Capacity：10units,Week

Basic Info.

Model NO. SG21-3 Rated Power 210HP Dimession 9430*2600*3400mm Operating Weight 17t Minimum Turning Radius 8200mm Blade Lengh 3660mm Brand Shantui/Acntruck Engine Cummins Speed 5.4~39.7km/H Transport Package Container Specification 210hp Trademark ACNTRUCK/SHANTUI Origin China HS Code 873001101 Production Capacity 10units/Week

Product Description

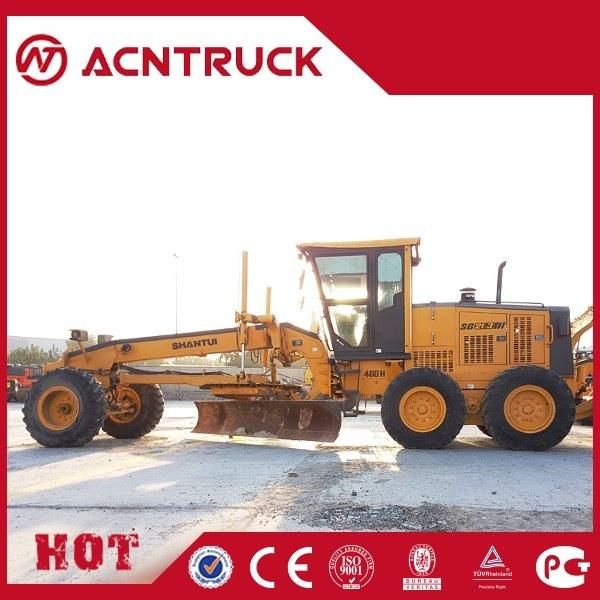

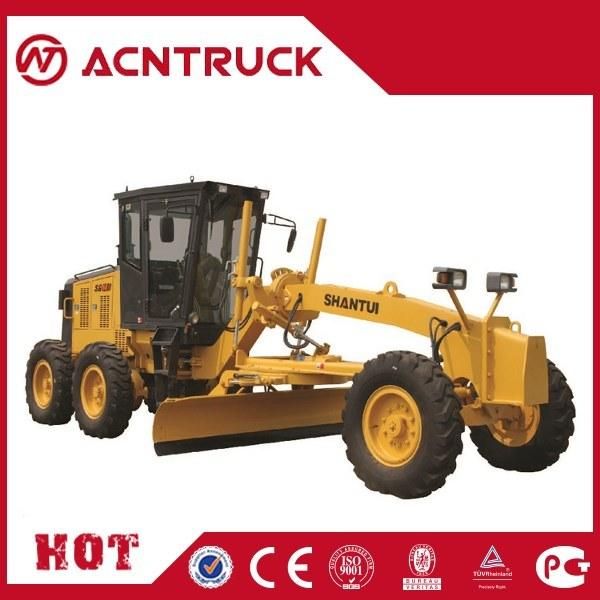

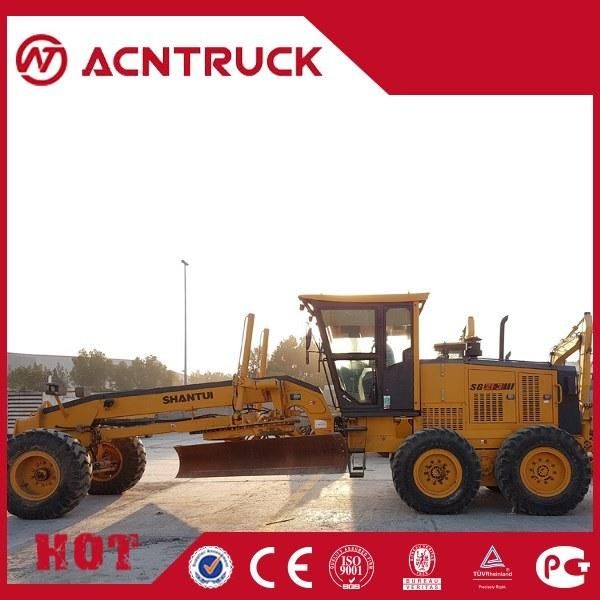

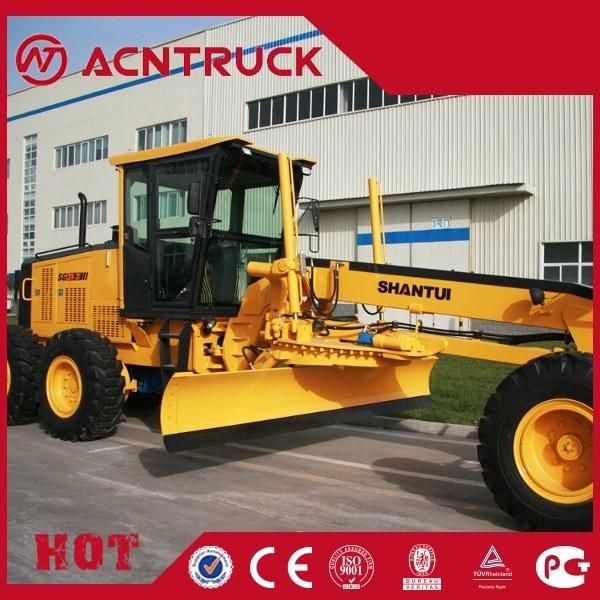

210HP 17 Ton Motor Grader Shantui SG21-3



Operating weight: 17000kg

Blade length: 3660/3965mm

Blade height: 635mm

Shovel Blade thickness: 16mm
Max lifting height: 440mm

Max grading depth: 500mm

Min. turning radius: 8200mm



•SG21-3 motor grader adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects etc.



Features:


Engine features reliable performances and high efficiency and energy-saving.


The 6-speed electronically controlled shift hydraulic transmission with technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.


The box-type structure welded from integral plates features high strength.


The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.


Featuring simple operations and high impact resistance against external forces, it's applicable for the working conditions with high operating volume and severe operating environment.


The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.


The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.


The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
