Snow Plowing Robot Rubber Track Chassis Dp-Bgm-100
Shanghai Puyi Industrial Co., Ltd.- Type：Undercarriage
- Application：Excavator
- Certification：ISO9001: 2000
- Condition：New
- Material：Waterproof Rubber and Aluminium T6 Construction
- Length：1000mm
Base Info
- Model NO.：DP-BGM-100
- Width：460mm
- Height：300mm
- Drive Wheel Diameter：195.7mm
- Rubber Track Width：Bd-a,100mm
- Rubber Track Links：55
- Weight：40.5kg
- Load Bearing Weight：200kg
- Warranty：12 Months Under Normal Use
- Transport Package：Bare Packing or Wooden Pallets
- Specification：DP-150
- Trademark：No Marks or As Buyer′s Requests
- Origin：Shanghai, China
- HS Code：8431499900
- Production Capacity：1500PCS,Month
Description
Length

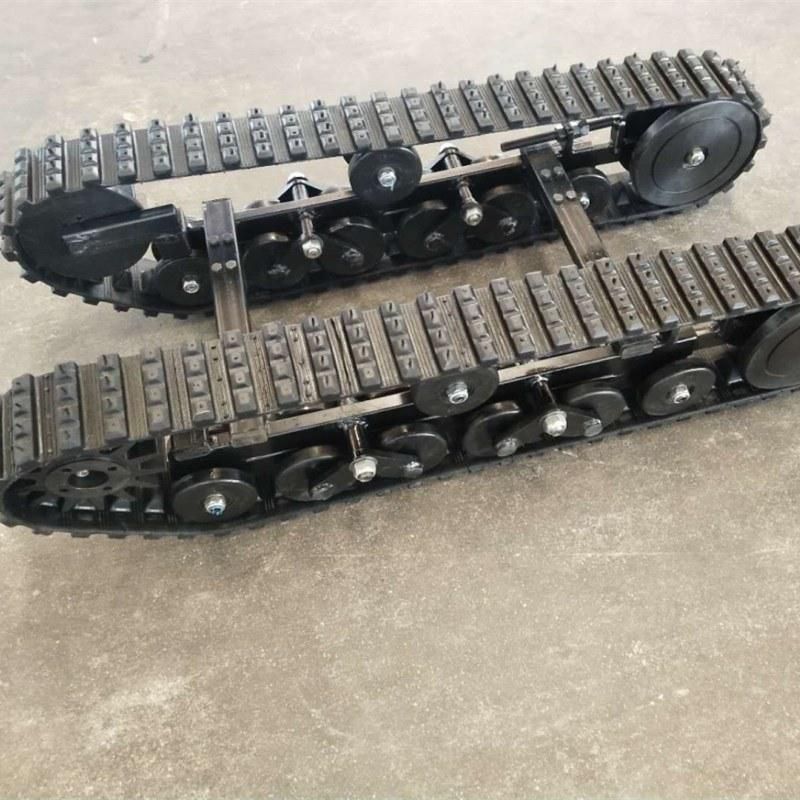

Item: Rubber track undercarriage
Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Waterproof Rubber and Aluminium T6 Construction,Steel,UHMW-PE(wheels)
Description of the rubber track undercarriage:
1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.
2. Easy for vehicles to run on hill land, mud road, sand ground...
3.Max load only 300kgs,if your idea of design is over 300kgs,please contact us for choosing other models.
4.Application: All terrain/season;
5.Warranty: 12 months
Their choice of operating environment and notice are as follows:
(1) rubber track,temperature is generally between -25 ~ + 55'C.
(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.
(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.
(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.
(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.
(6)30 degree slope and 15 degree side slope,for climbing

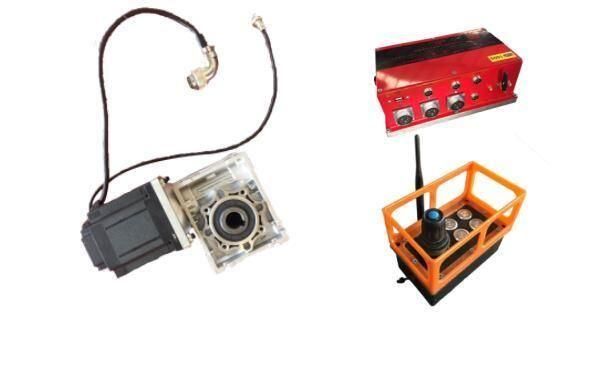

Electric motor we can supply for this rubber track undercarriage:
Motor is 48V 800W
for one whole set including 2*motor with reducer+1*controller+1*remote control
(not including battery)
