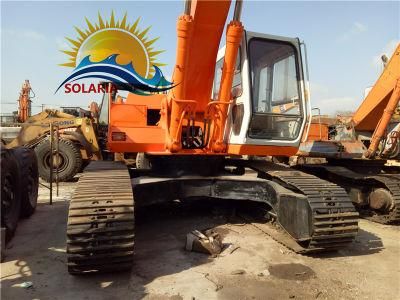

Used Japanese Hitachi Ex300 Excavator Hitachi Excavator Ex300-1 Ex200-1 Ex120-1 for Sale
Solaria Machinery Trading Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：1.0~1.5m³
Base Info
- Model NO.：EX300
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：Used
- Brand：Hitachi
- Model：Ex300
- Engine Model：a-6SD1tqa
- Year：2012
- Operating Weight：30000kgs
- Transport Package：Container,Flat,Bulk,Roro
- Specification：120m3
- Trademark：Hitachi
- Origin：Japan
- HS Code：8429525200
- Production Capacity：5 Units,Month
Description
EngineMake Isuzu Model A-6SD1TQA Net Power 208 hp 155.1 kw Power Measured @ 2000 rpm Displacement 600 cu in 9.8 L Torque Measured @ 1400 rpm Max Torque 615.1 lb ft 834 Nm Aspiration Turbocharged Number of Cylinders 6 Operational Operating Weight 64800 lb 29392.8 kg Fuel Capacity 134.7 gal 510 L Cooling System Fluid Capacity 8.8 gal 33.5 L Hydrauilc System Fluid Capacity 81.9 gal 310 L Engine Oil Capacity 9.2 gal 35 L Swing Drive Fluid Capacity 4.5 gal 17 L Alternator Supplied Amperage 30 amps Hydraulic System Relief Valve Pressure 4980 psi 34335.9 kPa Hydraulic Pump Flow Capacity 144.2 gal/min 546 L/min Swing Mechanism Swing Speed 12 rpm Undercarriage Number of Shoes per Side 47 Shoe Size 23.6 in 600 mm Number of Carrier Rollers per Side 2 Number of Track Rollers per Side 8 Ground Pressure 8.7 psi 59.8 kPa Max Travel Speed 3.4 mph 5.5 km/h Track Gauge 8.5 ft in 2590 mm Buckets Reference Bucket Capacity 1.8 yd3 1.4 m3 Minimum Bucket Capacity 1.5 yd3 1.2 m3 Maximum Bucket Capacity 2.4 yd3 1.9 m3 Boom/Stick Option (HEX) 1 Boom/Stick Option (HEX) 1 Boom 21'0" (6400mm) / Stick 8'9" (2660mm) Shipping Height of Unit 11.2 ft in 3410 mm Shipping Length of Unit 36.3 ft in 11060 mm Max Digging Depth 22.4 ft in 6840 mm Max Reach Along Ground 34 ft in 10360 mm Max Cutting Height 32.3 ft in 9850 mm Max Loading Height 22.3 ft in 6810 mm Max Vertical Wall Digging Depth 18.4 ft in 5610 mm Boom/Stick Option (HEX) 2 Boom/Stick Option (HEX) 2 Boom 21'0" (6400mm) / Stick 10'6" (3200mm) Shipping Height of Unit 10.5 ft in 3200 mm Shipping Length of Unit 35.9 ft in 10940 mm Max Digging Depth 24.2 ft in 7380 mm Max Reach Along Ground 35.8 ft in 10900 mm Max Cutting Height 33.5 ft in 10220 mm Max Loading Height 23.4 ft in 7120 mm Max Vertical Wall Digging Depth 21.3 ft in 6480 mm Boom/Stick Option (HEX) 3 Boom/Stick Option (HEX) 3 Boom 21'0" (6400mm) / Stick 13'1" (4000mm) Shipping Height of Unit 11.5 ft in 3490 mm Shipping Length of Unit 36.1 ft in 11010 mm Max Digging Depth 26.8 ft in 8180 mm Max Reach Along Ground 38.3 ft in 11680 mm Max Cutting Height 34.8 ft in 10600 mm Max Loading Height 24.6 ft in 7490 mm Max Vertical Wall Digging Depth 24.1 ft in 7360 mm Dimensions Width to Outside of Tracks 10.5 ft in 3190 mm Height to Top of Cab 9.9 ft in 3010 mm Ground Clearance 1.6 ft in 500 mm Counterweight Clearance 3.8 ft in 1170 mm Tail Swing Radius 10.8 ft in 3300 mm Length of Track on Ground 12.2 ft in 3710 mm
Pick you up from the airport
Book hotel for you
Guide you to visit Shanghai
2)Payment and shipment
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
Pick you up from the airport
Book hotel for you
Guide you to visit Shanghai
2)Payment and shipment
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
