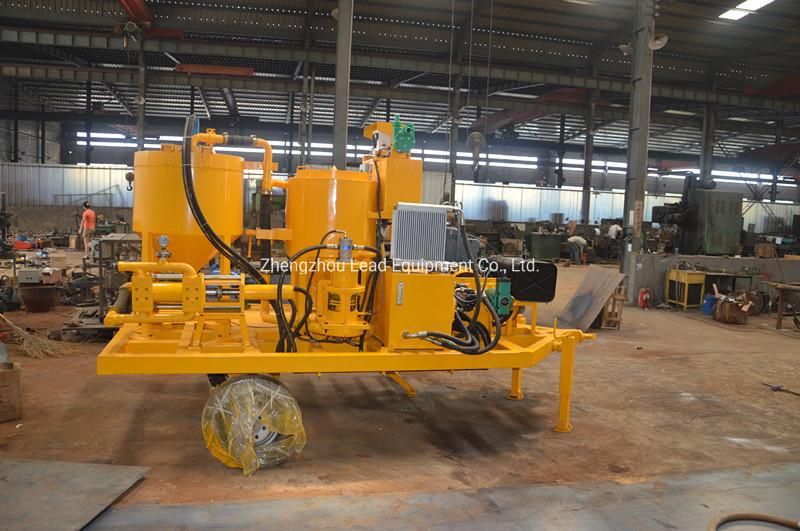

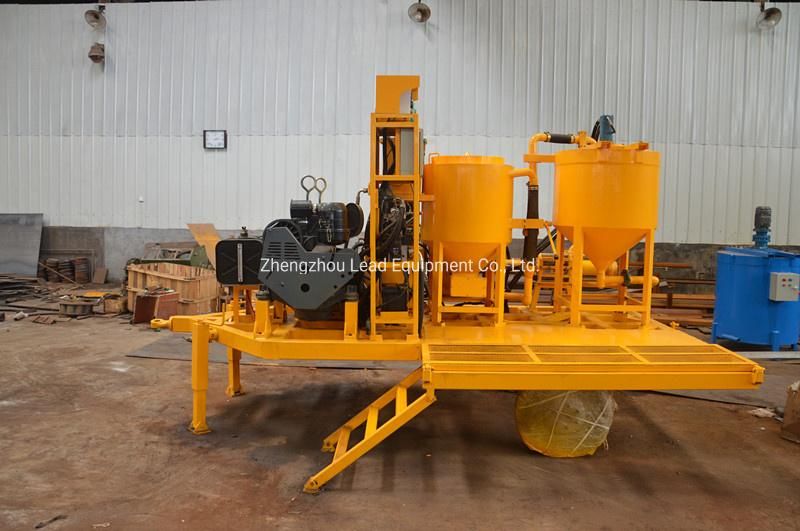

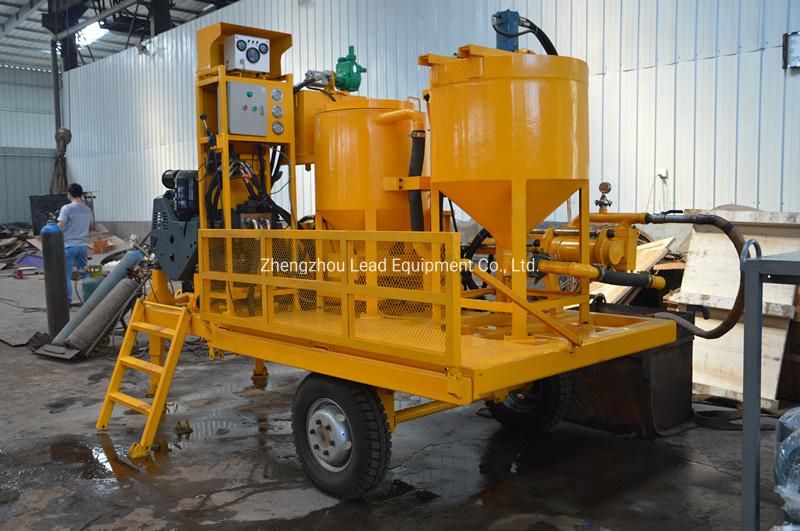

LGP200/300/100pi-D Trailer Cement Grout Mixing Pump for Sale

Zhengzhou Lead Equipment Co., Ltd.
  • Type:Cement Grout Plant
  • Productivity:1100L,Min
  • Certification:ISO9001: 2000, CE
  • Condition:New
  • Color:Yellow
  • Mixer Volume:200L

Base Info

  • Model NO.:LGP200,300,100PI-D
  • Mixer Rated Rev.:1500rpm
  • Agitator Volume:300L
  • Agitator Rated Rev.:36rpm
  • Grout Pump Output(Max.):100L,Min
  • Grout Pump Work Pressure:10MPa
  • Grout Station Overall Dimension:4130*1850*2500mm
  • Grout Station Weight:2795kgs
  • Suitable W/C Ratio:0.5 to 1
  • Warranty:12 Months
  • Transport Package:Nude Package or According to Customer Requirement
  • Specification:4130*1850*2500mm
  • Trademark:Leadcrete
  • Origin:China
  • HS Code:8413509090
  • Production Capacity:15sets,Month

Description

Description Data Grout Station typeLGP200/300/100PI-DMixer Volume200LMixer production(w/c ratio=1)4 m3/hCirculation capacity1100l/minSuitable W/C Ratio0.5 to 1Mixer hydraulic motor 1450rpmAgitator Volume300LAgitator hydraulic motor speed36rpmWater tank60LGrout Pump TypeLGH90Grout pump output(Max.)100L/minGrout pump work pressure10MPaDeutz F3L912 diesel34kw/48HP, 2200rpmOverall dimension 4130x1850x2500mmGrout Station Weight 2795kg

Feature of grout station

Compact size, It is combination of mixer, agitator and squeeze hose pump and power in one base frame;

Flow is adjustable.

Squeeze hose pump, hose is the only spare part. It is easy to operate and maintenance.

Butterfly connection mixer and agitator, flexible switching.

Imported electrical components, it is safe and reliable.

High-power and high-speed eddy current pulping, it is fast and evenly.

With CE and ISO Certificate.
