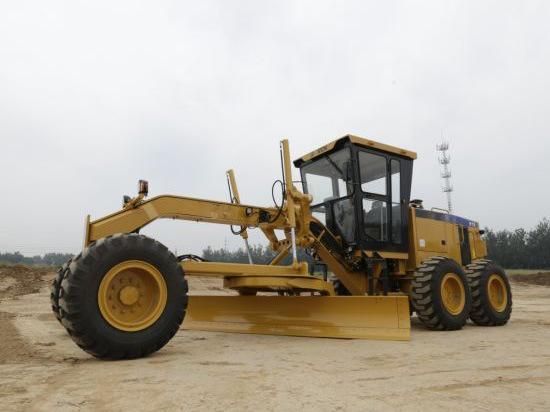

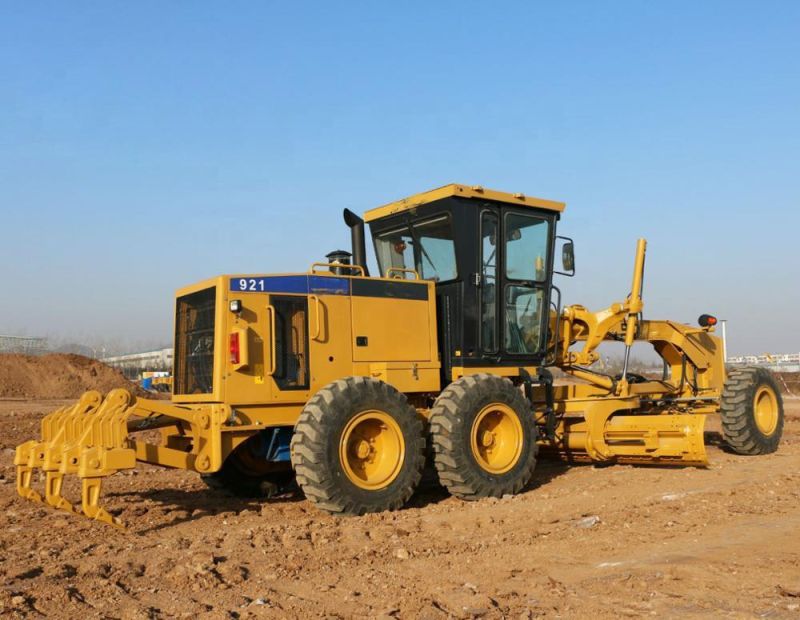

16 Ton Motor Grader Sem921 with Attachments

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：Online Support
  • Certification：CE
  • Condition：New
  • Application：Railway, Mine, Farmland
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：SEM921
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader
  • Engine Power：140HP
  • Transport Package：6501*3151*2562mm
  • Specification：26000kg
  • Trademark：sinomada
  • Origin：China
  • Production Capacity：50000PCS,Year

Description

Operating Weight

15,930 kg

Engine Model

SC9D220G2

Rated Power

162 kW/217 hp

Overall Dimensions L*W*H

8854x2630x3360 mm

Blade Length

4,279 mm

Max. Drawbar

85 kN

Max. Lift above Ground (Blade)

475 mm

Max. Depth of Cut (Blade)

715 mm

Max. Blade Tip - Forward

40º

Max. Blade Tip - Rear

5º

Front Axle Steering Angle Left/Right

47.5º

Min. Turning Radius

7.8 m

Tandem Oscillation (Front up)

15º

Tandem Oscillation (Rear up)

25º

Transmission Model

6WG180

Gears

F6/R3

Tires

17.5-25
