• Model NO.：ZT815
• Walking Mode：Wheeled
• Type：Small Loader
• Operating Weight：3300kg
• Engine Power：40kw
• Max Dump Height：320mm
• Speed：2200rpm
• Engine：Xinchai
• Color：Yellow, Gray ,Red
• Brand：Zhengtai
• Advantage：Convenient
• Item：1.5 Ton Wheel Dumper
• Tyre：12-16.5
• Loader Uploading Distance：450mm
• Standard Bucket Capacity：0.7m3
• Min Turning Radius：4890mm
• Wheel Base：2000mm
• Trade：1350mm
• Transport Package：Nude
• Specification：4150*1680*2450mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842959000
• Production Capacity：30 Sets,Months

Basic Info.

Model NO. ZT815 Walking Mode Wheeled Type Small Loader Operating Weight 3300kg Engine Power 40kw Max Dump Height 320mm Speed 2200rpm Engine Xinchai Color Yellow, Gray ,Red Brand Zhengtai Advantage Convenient Item 1.5 Ton Wheel Dumper Tyre 12-16.5 Loader Uploading Distance 450mm Standard Bucket Capacity 0.7m3 Min Turning Radius 4890mm Wheel Base 2000mm Trade 1350mm Transport Package Nude Specification 4150*1680*2450mm Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30 Sets/Months

Product Description

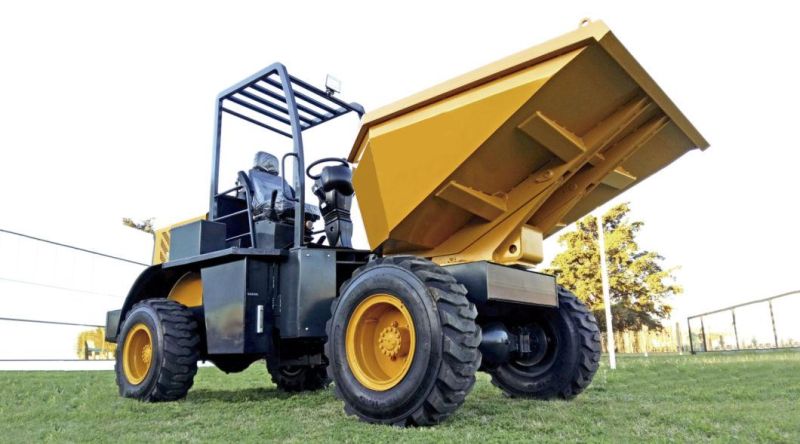

Wheel dumper








 Based on the solid and faithful tradition, absorbing the advan- tages of advanced technologies of the world, ZT corporation tries its best to make the ideal construction equipments.
Wheel dumper is newly designed by Zhengtai company and it's a small one. It adopts Xinchai engine, energy-saving and environment-protecting, which is widely used in the developed countries.5-speed machinery gearbox, reliable, widely used.Pilot control can choose safety seat, which makes driving comfortable.



Specification

Loading capacity:	1500KG
Articulation angle:	35°
Maximum loading height:	1600mm
Braking system:	disk
Distance between axis:	2480mm
Gauge width:	1460mm
Load lifting time:	3.5s
Hydraulic system pressure:	16mpa
Cruising Speed - Forward:	6-18km/h
Cruising Speed - Reverse:	6-18km/h
Maximum angle of rise:	30°
Engine - Model:	xinchai490
Engine - Power:	32kw/42hp
Engine - Maximum Torque:	156nm
Engine - Displacement:	2.67L
Electrical System - Voltage:	12v
Powershift	4wd
Rolled Type:	12-16.5
Operating weight:	3300kg
Bucket capacity (up to):	0.8cbm
Dimensions- Total length (with bucket):	4540mm
Dimensions - Width:	1720mm
Dimensions - Height:	2610mm
Dimensions - Maximum discharge height:	800mm
Minimum distance to the floor:	240mm

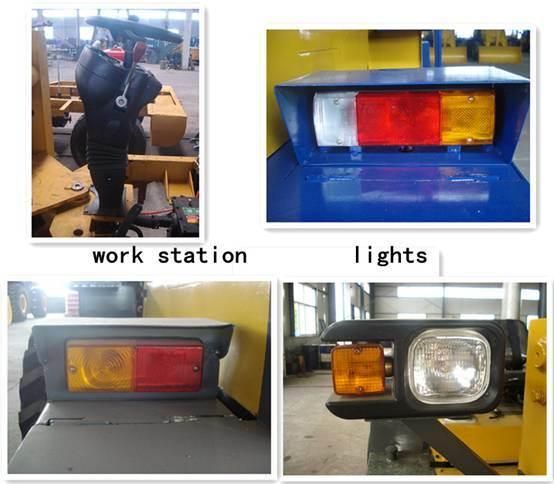

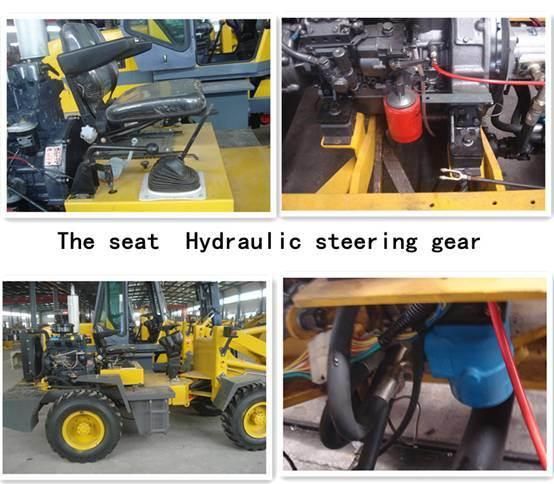

Detailed Image




 low noise
             low exhaust gas
                              green environmental protection
                                                                          good reliability

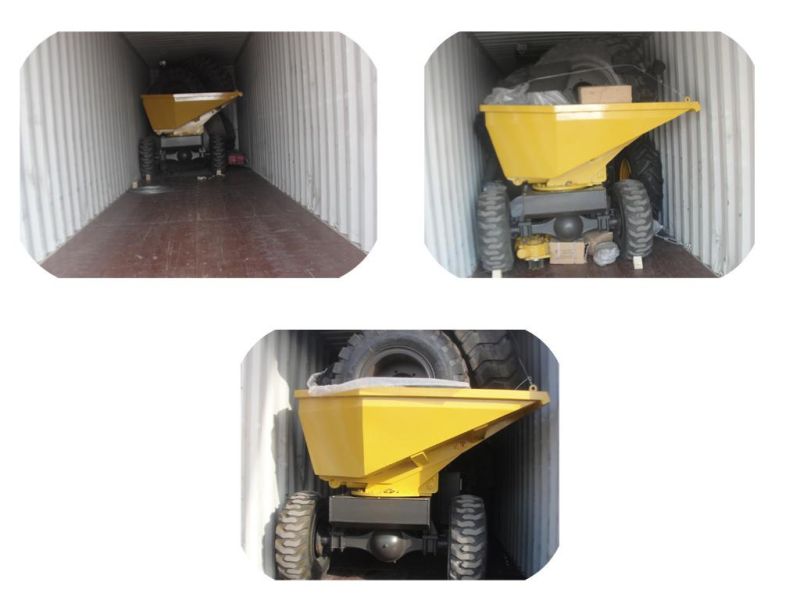

Packing
Container 40HC 3 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
