• Model NO.：electric Concrete Vibrator
• Vibrating Amplitude：2.6mm
• Certification：CE
• Condition：New
• Color：Orange
• Model：Electric Concrete Vibrator
• Transport Package：Box,Bag and Others
• Specification：CE
• Trademark：GM
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. electric Concrete Vibrator Vibrating Amplitude 2.6mm Certification CE Condition New Color Orange Model Electric Concrete Vibrator Transport Package Box/Bag and Others Specification CE Trademark GM Origin China Production Capacity 50000PCS/Year

Product Description

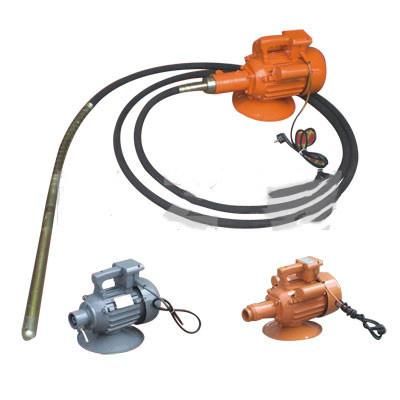

GM electric Concrete Vibrator with 1.5KW/220V/OEM /IN FACTORY PRICE
Concrete poker vibrator, work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.

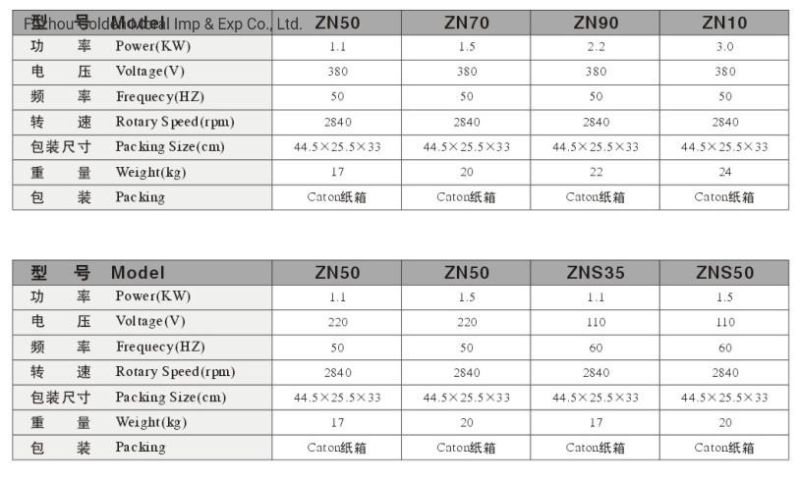

Specification Date:
ITEMconcrete poker vibrator
TypeType ChineseType Japanese
ModelZN50ZN70ZN90ZNS50ZNS70
Power(HP)1.5231.52
Voltage(V)380380380220220
Frequency(HZ)5050505050
Current(A)
3.334.77.8
Workingspeed(RPM)28402840284028402840
PACKING SIZE(cm)40.5*25*3347*25*3347*25*3344*25*3347*26*33
Weight (kgs)1618222022
Match concrete poker shaft
ItemConcrete vibrator shaft
ModelΦ (mm)ZX35ZX-38ZX-50ZX-70
Diameter of headΦ (mm)35385070
Length of headL (mm)400470479555
Vibrating Frequency(HZ)183185200230
Vibrating Ampitude(mm)0.9111.151.35
Diameter of flexiable hoseD(mm)30303636
Diameter of flexiable shaftD(mm)10101313
Weight (6mtr(kg)141520.524
