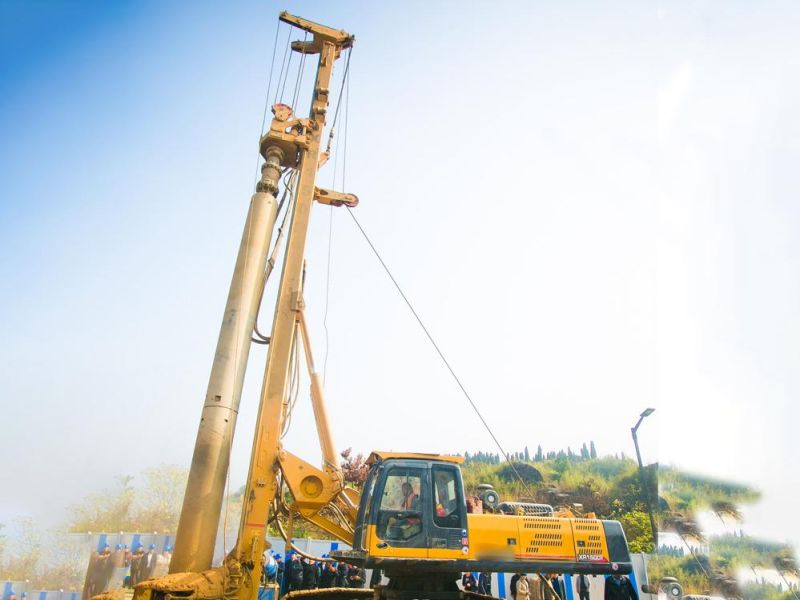

High Quality Xr320d Used Hydraulic Rotary Drilling Rig Russia
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year Warranty
- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：XR320D
- Motor Power：320kw
- Noise：Without Noise
- Certification：CE
- Condition：New
- Transport Package：Nude Package
- Trademark：Top Brand
- Origin：China
- HS Code：8429521200
Description
Overview
Product DescriptionDescription Unit Parameter value Max. drilling diameter mm 2500 Max. drilling depth m 90 Allowable luffing scope (from center of drill rod to slewing center) mm 4100~4400 Drilling rig dimension in working condition (L × W × H) mm 10480×4800×25155 Drilling rig dimension in transport condition (L × W × H) mm 16550×3500×3500 Weight of overall unit (standard configuration, excluding drilling tool) t 92.8 Engine Model CUMINS QSM11-C400 Rated power/speed kW 298/(2100r/min) Hydraulic system Max. working pressure of main pump Mpa 35 Max. working pressure of auxiliary pump Mpa 30 Rotary drive Max. torque kN •m 320 Rotational speed r/min 5.5~21 Crowd cylinder Max. Pushing force kN 250 Max. Pulling force kN 250 Max.stroke mm 6000 Crowd winch Max. Pushing force kN 330 Max. Pulling force kN 350 Max.stroke mm 16000 Main winch Max.pulling force kN 280 Max. single-rope speed m/min 75 Auxiliary winch Max.pulling force kN 100 Drilling mast Left/right inclination of mast ° 4/4 Front/back inclination of mast ° 5/15 Crawler Width of crawler plate mm 800 External width of crawler (min.-max.) mm 3500~4800 Center distance between two longitudinal wheels of crawler mm 5175 Average ground pressure kPa 122
