• Model NO.：L968F
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Medium-sized Loader
• Operating Weight (Kg)：19950
• Engine Model：Weichai Wd10g240e201
• Rated Power/Rated Speed (Kw)：178kw
• Bucket Capacity(M³)：3.5
• Wheel Base(mm)：3400
• Max.Dumping Height(mm)：3250
• Dumping Distance(mm)：1050
• Steering Angel(°)：38
• Emission Standard：China Phase 2
• Max.Tractive Force(Kn)：180
• Max.Breakout Force(Kn)：96
• Gears：Forward 4 Reverse 4
• Total Time(S)：10.3
• Fuel Tank Capacity(L)：350
• Transport Package：Nude
• Specification：8680*3200*3470mm
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：100,Month

Overall dimensionL*W*H8680*3200*3470mmWheel base3400mmMin. ground clearance530mmMax. dumping height3250mmDumping distance1090mmDumping angle45wheel tread2250mmsteering angle38horizontal crossing radius7140mmMin. turning radius6062mmOverall parametersBacket capacity3.5m3(optional 3.0-5.0)Rated load6000kgoperating weight19950kgMax. tractive force180kNMax. breakout force210kNTipping load128kNEngineModelWD10G240E201TypeInline, watercooled, dry cylinder liner, direct injectionRated power178kWRated speed2200r/minEngine displacement9726mlMax. torque1000N.mEmission standardGB 20891-2007(China Phase II)Min. fuel-consume ratio230g/kw.hTransmission systemTorgue convertersingle-stage three-element single-turbine hydraulic torque converterTransmission typeAxis-fixed electro-hydraulic transmissionGearsForward 4 reverse 4Hydraulic system of working deviceTypeHydraulic pilot controltotal time10.3sBrake systemService brake typeAir over hydraulic disc typeParking brake typeElectric pneumatic caliper disc typeSteering systemTypeLoad sensing full hydraulic articulated steeringSystem pressure21 MpaFill capacityFuel350LHydraulic oil220LEngine20LTransmission28.4LDrive axleForward 40L+ reverse 40LBraking system4L

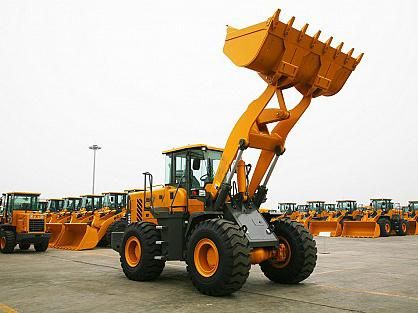

Photos

About  Our Company
We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as SANY, ZOOMLION,SEM, SDLG, SHANTU, etc.
