• Model NO.：18"*4"*51
• Links：51(Can Be Customized)
• Color：Black(Can Be Customized)
• Track Type：Rubber Track
• Warranty：12 Months Under Normal Use
• Delivery Time：15 to 25 Days
• Transport Package：Bare Packing or Wooden Pallet
• Specification：18"*4"*51
• Trademark：POOYERT
• Origin：Shanghai
• HS Code：8431499900
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. 18"*4"*51 Links 51(Can Be Customized) Color Black(Can Be Customized) Track Type Rubber Track Warranty 12 Months Under Normal Use Delivery Time 15 to 25 Days Transport Package Bare Packing or Wooden Pallet Specification 18"*4"*51 Trademark POOYERT Origin Shanghai HS Code 8431499900 Production Capacity 3000PCS/Month

Product Description

ASV Rubber Track for Terex , 277C/287C/297C/277D Loader Rubber Track Pictures

ASV Loader, Terex Loader, 277C/277D/287C/297C Loader Rubber Track Features:

- Vehicle Model: ASV Loader, Terex Loader, 277C/277D/287C/297C Loader

- Tread Pattern: BA

- Inside Kevlar Diameter: 1.5mm

-Inside Steel Wire Diameter: 2.3mm

- Height of Steel Wire: 10mm

- Deep Treadbars for Superior Performance & Traction in Snow, Sand, Mud and Soft

  Terrains

- 100% Installation and Fit for Original ASV Loader Vehicle



Machine Picture: Terex RC100 Loader, ASV RC100 Loader



Size:                                         18'' (width) * 4" (pitch) * 51 links

Net Weight:                             138 kgs

Name:                                       No Metal Core ASV RC100 Rubber Track

Package Dimension(2 PCS):  1400mm(length)*460mm(width)*800mm(height)

Package Volume:                    0.5 cubic meters

Size	Weight for Each Link	Size	Weight for Each Link	Size	Weight for Each Link
130*72	0.36	WD300*72	1.459	400*144	7.75
150*60	0.52	B300*84	2.88	400*144Y	7.41
150*72	0.55	T300*86	3.13	420*100	5.3
170*60	0.48	300*109KW	3.38	450*71	4.45
180*60	0.56	K300*109	3.56	DW450*71	4.82
180*72	0.64	300*109N	3.32	450*73.5	4.57
180*72K	0.87	300*109W	3.21	450*76	5.27
H180*72	0.77	320*52.5	1.69	450*81.5	5.24
190*60	0.59	320*54	1.81	450*81N	5.19
190*60	0.59	B320*84	2.95	450*81W	5.02
190*72	0.72	B320*86	2.99	450*83.5	5.47
200*72	0.84	B320*86SB	2.99	450*83.5Y	5.67
200*72K	1.07	B320*86C	3.01	450*84	4.22
230*48	0.87	B320*86Z	3.12	B450*86	4.33
230*48K	1.06	B320*86CM	3.01	B450*86SB	4.3
230*72	1.09	B320*86R	2.99	B450*86C	4.31
230*72K	1.34	T320*86	3.22	B450*86Z	4.51
230*96	1.77	T320*86MB	3.3	B450*86CM	4.37
230*101	1.92	T320*86SB	3.27	B450*86R	4.3
250*47	1.11	T320*86C	3.25	450*90	4.07
250*48.5	1.13	T320*86Z	3.53	KU450*90	3.9
250*52.5	1.04	320*90	2.85	450*110	6.9
250*52.5K	1.31	320*100	2.67	T450*100MB	5.3
250*72	1.17	320*100W	3.01	T450*100	5.09
B250*72	1.03	320*106	3.63	T450*100SB	5.16
250*96	2.21	350*52.5	1.85	T450*100C	5.2
250*109	2.39	350*54.5	2.31	T450*100Z	5.55
260*55.5	1.48	350*56	2.05	450*163	10.47
260*96	1.91	350*75.5	3.58	485*92W	7.62
260*109	2.16	350*90	1.85	500*71	7.5
280*72	1.43	350*100	3.69	500*90	5.38
280*106	3.05	350*108	3.92	500*92	7.81
300*52.5KB	1.67	350*109	4.12	500*92W	8.6
300*52.5KW	1.71	370*107	4.68	500*100	6.34
300*52.5N	1.44	400*72.5KB	3.44	500*146	9.97
300*52.5W	1.56	400*72.5KW	3.72	600*100	8.3
JD300*52.5N	1.54	400*72.5N	3.48	600*125	10.39
K300*52.5	1.72	400*72.5W	3.85	650*110	13.34
KB300*52.5N	1.55	400*72.5Y	3.62	650*120	13.75
300*53	1.81	400*74	3.4	650*125	15.8
300*55	1.88	400*75.5	4.09	700*100	10.9
300*55.5	1.95	400*86	4.14	700*125	14.29
300*71	3.31	400*90	2.22	750*150	21.34
300*72	1.77	400*107	4.95	800*125	19.14
		400*142	7.12	K800*150	21.55
ASV TRACK				M800*150	20.05
280*102*37	1.36	PAVER TRACK		900*150	31.23
380*102*42	1.9	356*152.4*46	4.81	1000*150	33.3
460*102*51	2.41	483*152.4*52	6.07
460*102*56	2.49	460*225*36	7.79	SPECIAL TRACK
460*102C*51	2.44			6"*3.5"*28	0.41
510*102*51	2.6			10"*3.5"*28	0.51

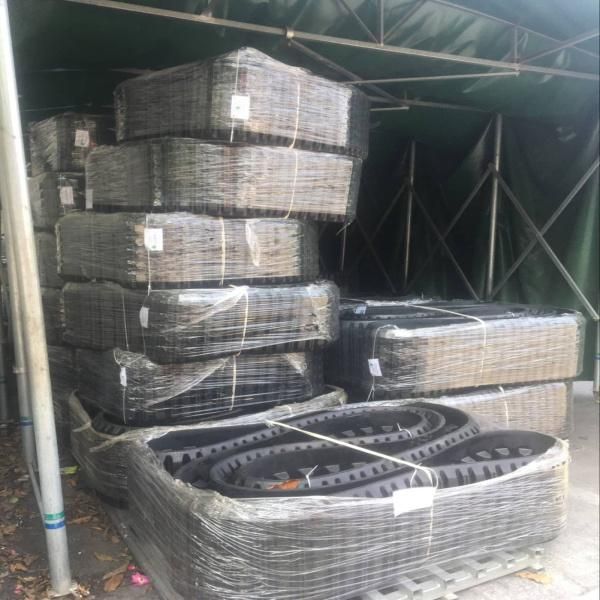

Packaging & Shipping

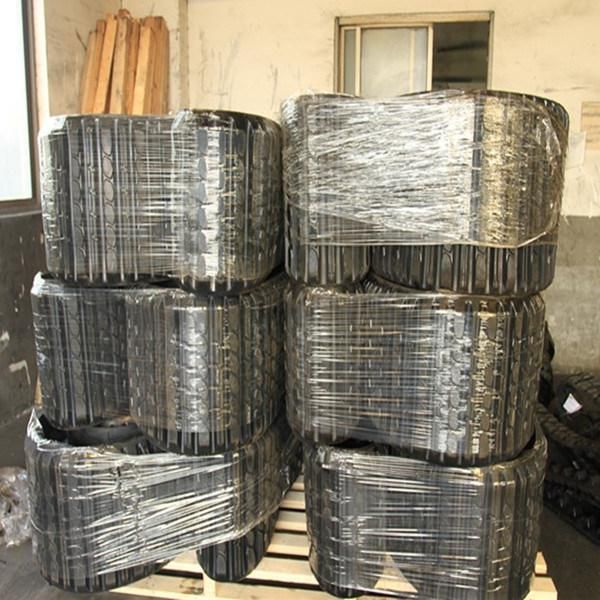

 Rubber Track for 277C Loader



Steel Pallet Packing or Wrapped in Circle or as Customers' Requirement



 Advanges: 1  Packaging is strong enough to withstand rough handling;

                     2  It's suitable for long distance ocean transportation.



Warranty

In general, our warranty time is 6 months or 500 working hours.



When incorrectly using our products to make the rubber track damage, we will not compensate our customers' losses.



But if the damage is caused because of our production problem, we will

compensate the relevant losses as follows:

1 If use the products not more than 3 months, we will compensate all the losses    of clients when the quality problem happens;



2 If use the products for 3-5 months, we will compensate 50% ofthe losses

   when the quality problem happens;



3 If use the products for 5-6 months, we will compensate 25% of the losses

   when the quality problem happens.



Our Services

1  High Efficency, Fast Speed, Top Service

2  Provide OEM Service

3  When due to our producing problem, we will compensate the customers for

    their loss

4  We have a professional after-sales service team for our customers

5  Fast handling and delivery

6  Available at any time


Technology

1 Circular winding and jointless structure of the steel wire enables the tensile

   stress's balance.

2 Mixture use kevlar fiber and steel wire to lower the kevlar's high elongation

   and make sure the overall tensile strength of the rubber track.


Advantages

 1  We have rich manufacturing experience for 7 years to make sure the

     product's quality.

2   Unique rubber formula

3   We have the top technical experts in the domestic track industry and they

     always keep up with the state of the art technology.

4   A fair claim settlement

FAQ

1. What are the basic materials do you use?

    Natural rubber and synthetic rubber.

2. What type of product that you can do?

    Special Rubber Track, Agricultural Machinery Rubber

    Track, Constructional Machinery Rubber Track and

    Rubber Pad.

3. What's your delivery time?

    Within 15 days.

4. What are your main terms of payment?

    T/T, L/C.

5. What kind of package do you use?

    Polybags, steel pallet or as you required.
