235kn Rotary Drilling Rig Pile Driver Drill Machine (SR235)

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Provided
  • Warranty：Provided
  • Type：Drill
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Hydraulic Hammer
  • Power Source：Diesel

Base Info

  • Model NO.：SR235
  • Motor Power：150kw
  • Noise：Without Noise
  • Certification：CE, ISO 9001:2000
  • Condition：New

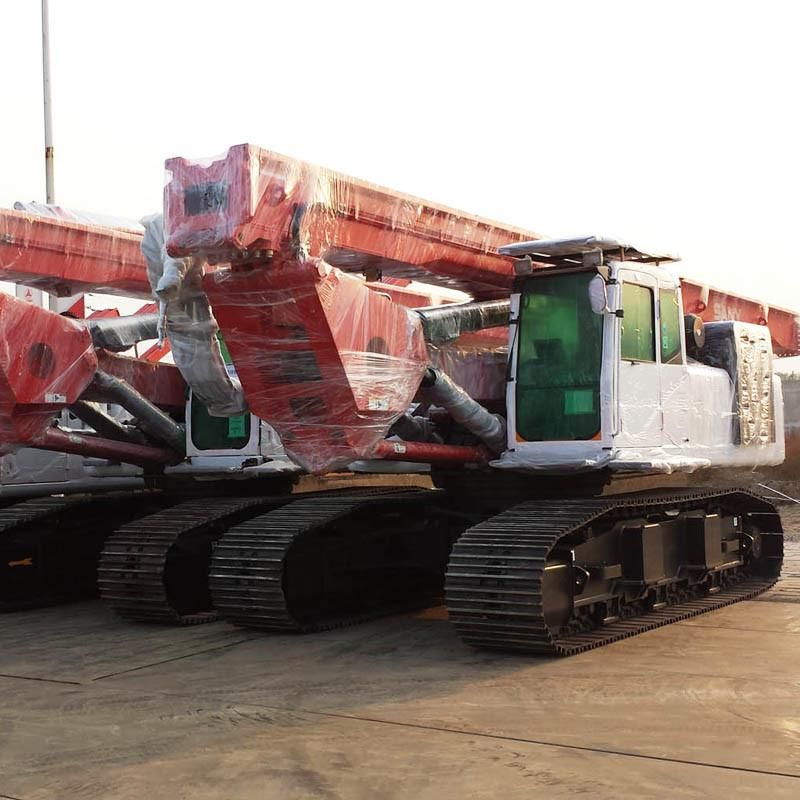

  • Transport Package：Seaworthy Packing
  • Specification：CE, ISO
  • Trademark：EVANGEL
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：20sets, Month

Description

Basic Info.

Model NO. SR235 Motor Power 150kw Noise Without Noise Certification CE, ISO 9001:2000 Condition New Transport Package Seaworthy Packing Specification CE, ISO Trademark EVANGEL Origin China HS Code 8430509000 Production Capacity 20sets/ Month

Product Description

235KN rotary drilling rig pile driver Drill Machine (SR235)

 High drilling capacity
Powered by Mitsu engine with rated power of 144 kW@2000 rpm, six gears control, SR155C10 power efficiency is significantly improved.
Kelly bar is made of high strength steel tubes with light design. Maximum output torque reaches 155kN.m, maximum pile depth of friction Kelly is 56m, pile depth of interlocking Kelly is 44m.
New design of main winch delivers faster line speed of 80m/min, bigger lifting power with 160kN line pull.
Safe and reliable
The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.
-ADMS intelligent operation system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.
Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.
Easy to transport&operate

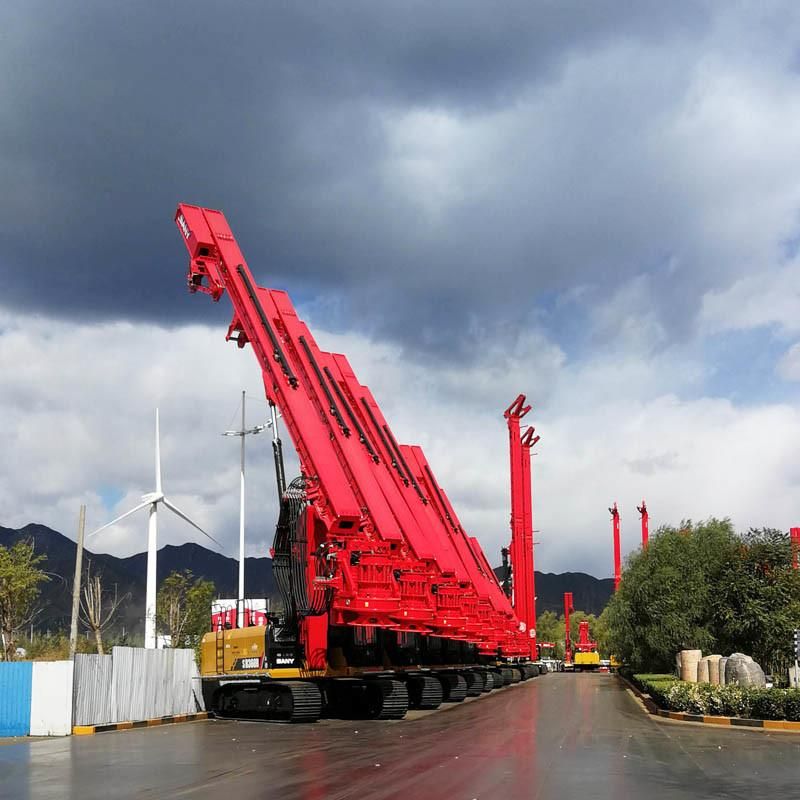

Compact in transport height and weight, the drilling rig is easy to transport in cities.
The tailored chassis with larger spaces for pumps and valves is for easy maintenance during work.
Spacious cab with panorama sunroof is designed to give the operator a comfortable environment and wide visibility.

MODELSR155-C10SR205-C10SR235-C10
Max. pile Diameter(mm)150018002000
Max. pile Depth(m)56/4464/5168/54
Max.output torque(kN m)155205235
Speed of rotationrpm5-355~305~27
Engine model D06FRC-TAAAH- 6HK1X6UZ1
Rated power (kw/rpm)144/2,000212/2,000257/2,000
Displacement(L)6.3737.799.84
Chassis Length(mm)597263777265
Track shoe width(mm)700700800
Operating weight (t)466381
Transport Dimensions (mm)13055*3140*326215112*3212*356016385*3540*3660
