• Model NO.：GYRC-70
• Condition：New
• Power Kw(HP)：9.6(13.0)
• Weight Kgs(Lbs)：740(1628)
• Dimension(L*W*H)：0.99m*0.79m*1.12m
• Drum Diameter：65*40cm(25*15.7in)
• Frequency：3600vpm,61Hz
• Water Tank Capacity：35L
• Transport Package：Wooden Carton
• Trademark：GEYO
• Origin：China
• HS Code：8479102100
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GYRC-70 Condition New Power Kw(HP) 9.6(13.0) Weight Kgs(Lbs) 740(1628) Dimension(L*W*H) 0.99m*0.79m*1.12m Drum Diameter 65*40cm(25*15.7in) Frequency 3600vpm/61Hz Water Tank Capacity 35L Transport Package Wooden Carton Trademark GEYO Origin China HS Code 8479102100 Production Capacity 1000PCS/Month

Product Description

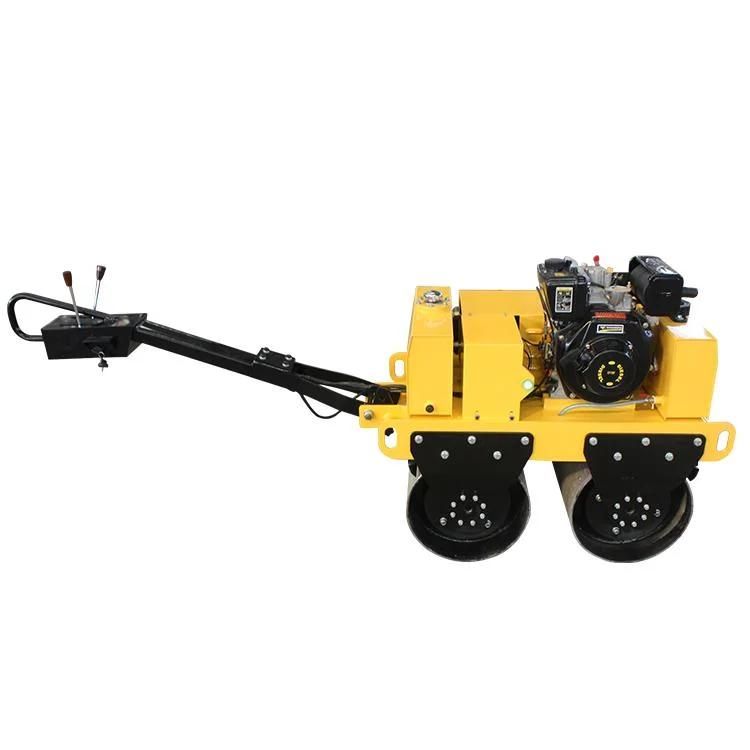

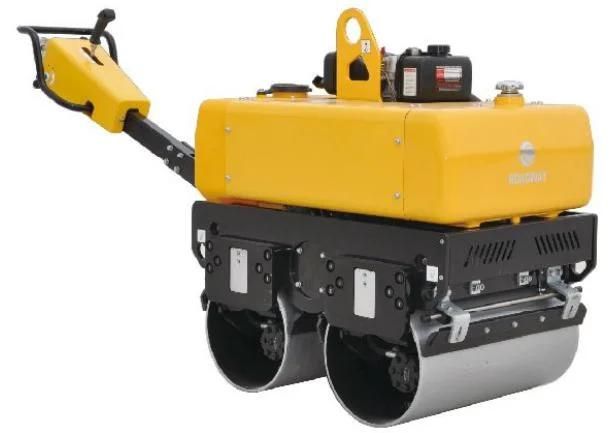

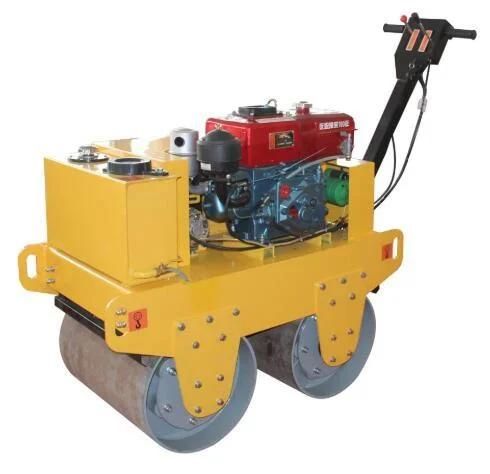

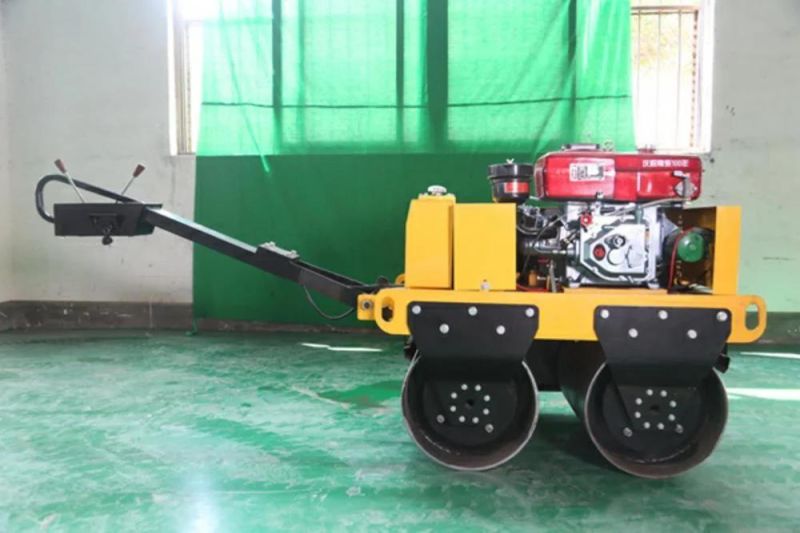

Anti vibration Double Drum Road Roller Compactor GYRC-70 with Honda GX390 engine

Features:
1.Deadman control lever offers reversing protection
2.Mechanical parking brake
3.Multi position handle for operator comfort and simplified transport
4.Built-in oil cooler will increase the productivity of ma Ergonomically designed controls are conveniently positioned to ensure speed, direction.
5.Anti vibration controls ensure non-fatiguing and low HAV for the operator.
6.Side and curb clearance allow for a closet approach to pavement, wall, curb and other obstacle
7.Dual smooth drums with beveled edge eliminates mark on the ground and asphalt.
8.Easy access to front mounted Diesel engine.
9.35 liters, corrosion-free water tank mounted at the rear of roller reduces sound and keeps dust to a minimum.
10.Vibration is controlled by easy to reach on and off switch in speed controlled hand lever.
11.Two scraper bars on each drum ensure a clean drum when working on asphalt
12.Minimum overhand offering suitable side and curb clearance
13.Ergonomically design handle with dead man control offering protection to operator in reversing applications.
14.A fully hydraulic-drive system consists of hydraulic bump and hydraulic motors provide infinitely variable
15.working speed for travel and vibration, eliminating regular maintenance and adjustments that chain driven rollers require.
16.Unique clutch/pump drive system provides easy cold weather starting and allows for no-load starting of engine.

Specification:

Model	GYRC-70
Engine Type	Honda GX390
Power kw(hp)	9.6(13.0)
Weight kg(lbs)	740(1628)
Drum Diameter cm(in)	65*40(25*15.7)
Centrifugal Force kN	24
Frequency vpm/hz	3600(61)
Travel Speed km/hr	2.5
Water tank Capacity L	35
