• Model NO.：T930
• Type：Small Loader
• OEM：Available
• Tire：20.5-16
• Operating Weight：3500kgs
• Bucket Capacity：0.9cbm
• Transport Package：Nude Cargo
• Specification：5340*1900*2750
• Trademark：LuGong
• Origin：China
• HS Code：8429510000

Basic Info.

Model NO. T930 Type Small Loader OEM Available Tire 20.5-16 Operating Weight 3500kgs Bucket Capacity 0.9cbm Transport Package Nude Cargo Specification 5340*1900*2750 Trademark LuGong Origin China HS Code 8429510000

Product Description

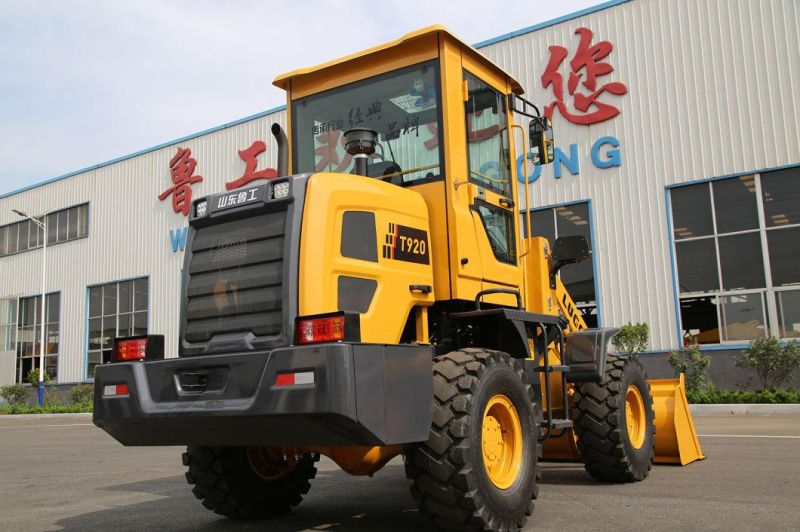

T930 lugong Barnd 1.8 Ton Long Time Life and Durable Farming and Mining Machinery Small Mini Durable Wheel Loader


The parameter of T series


	T920	T928	T930	T933	T938-Grain Bucket
bucket capacity	0.60m³	0.60m³	0.90m³	1.0m³	1.6m³
rated load	1500kg	1600kg	1800kg	1800kg	2000kg
operating weight	2950kg	3300kg	3500kg	4350kg	4450kg
overall dimension	5050X1850X2750mm	5520X1840X2750mm	5530X1860X2750mm	5870X1980X2830mm	6520X2000X2860mm
bucket width	1800mm	1800mm	1900mm	2000mm	2200mm
Max. dumping height	2900mm	3200mm	3200mm	3500mm	3800mm
Max. dumping distance	700mm	800mm	750mm	750mm	1000mm
turning radius	4700mm	4900mm	4900mm	5000mm	5000mm
Engine Model	Sida490	Sida490	Weichai-HF4102	Weichai-HF 4102 turbo	Weichai-HF 4102 turbo
rated power	42kw	42kw	65KW	65KW	65KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265	automatic 265	automatic 265 split	automatic 265 split	automatic 265 split
axle	AWD, small hub reduction	AWD, small hub reduction	AWD, small hub reduction	AWD, medium hub reduction	AWD, medium hub reduction
tyre size	20.5-16	20.5-16	20.5-16	16/60-20	16/70-20

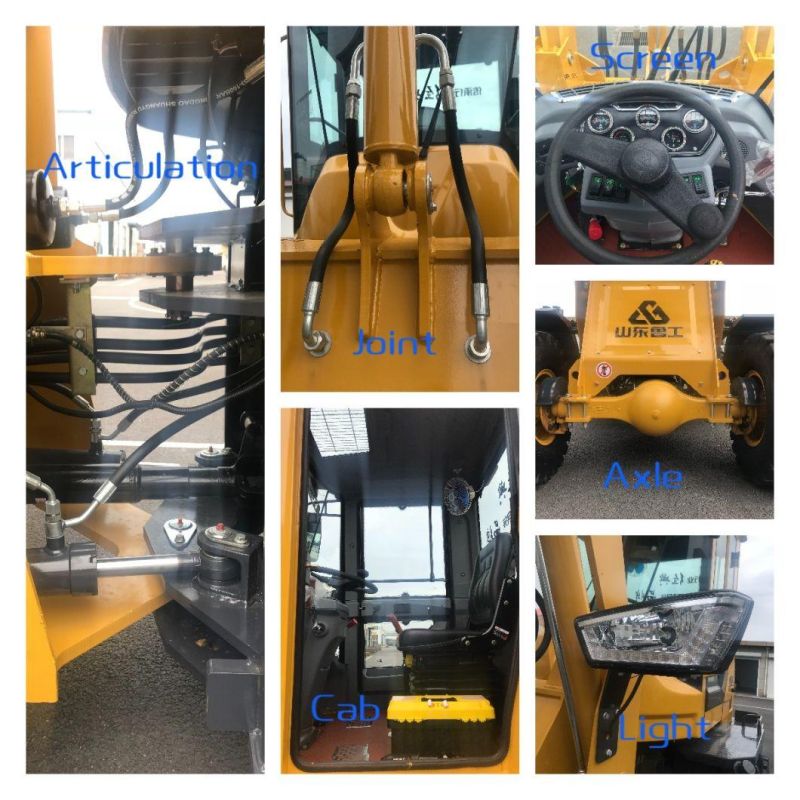

The Details of T Seires

1.Engine

•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

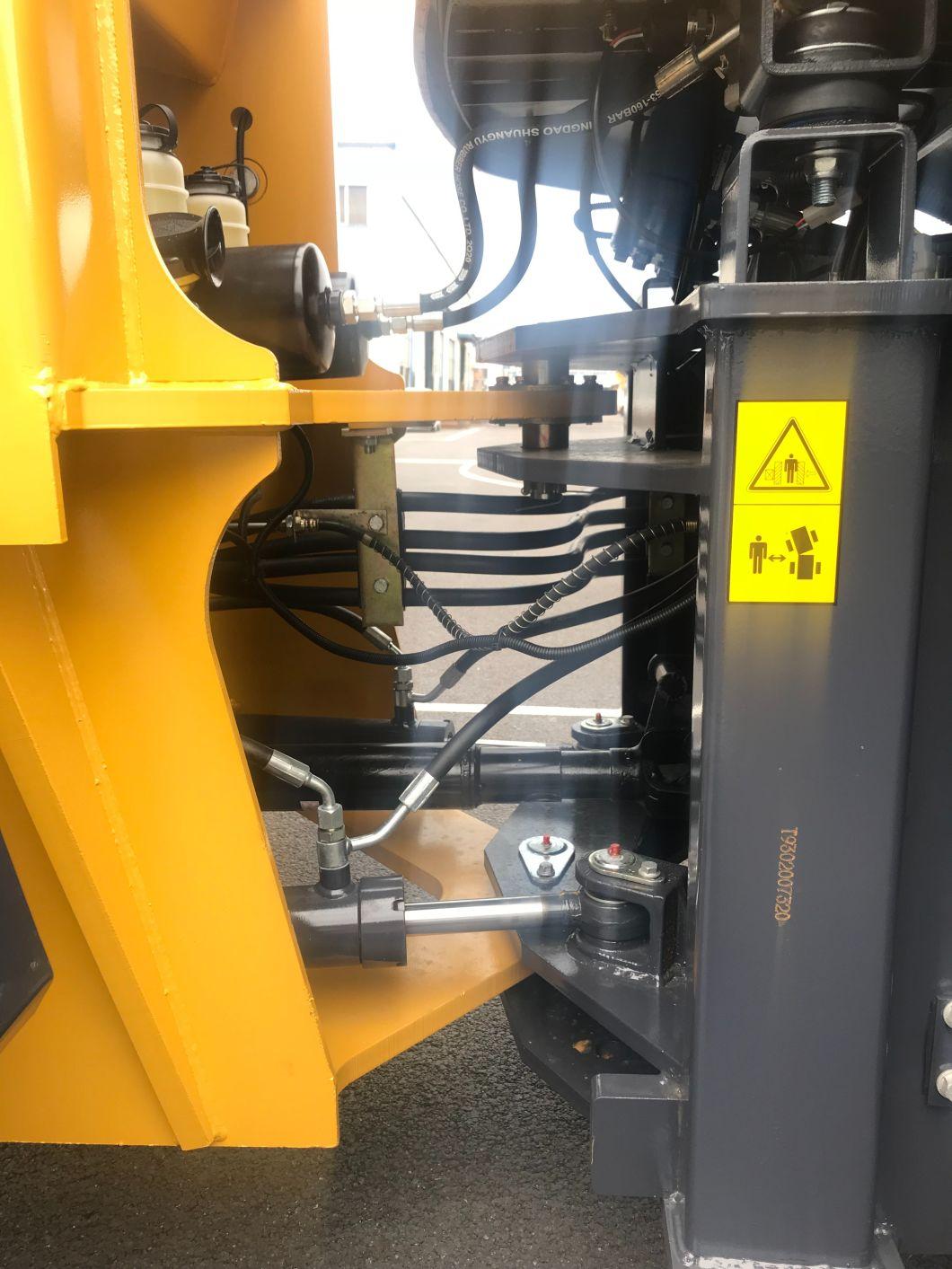

2.Articulaiton

• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

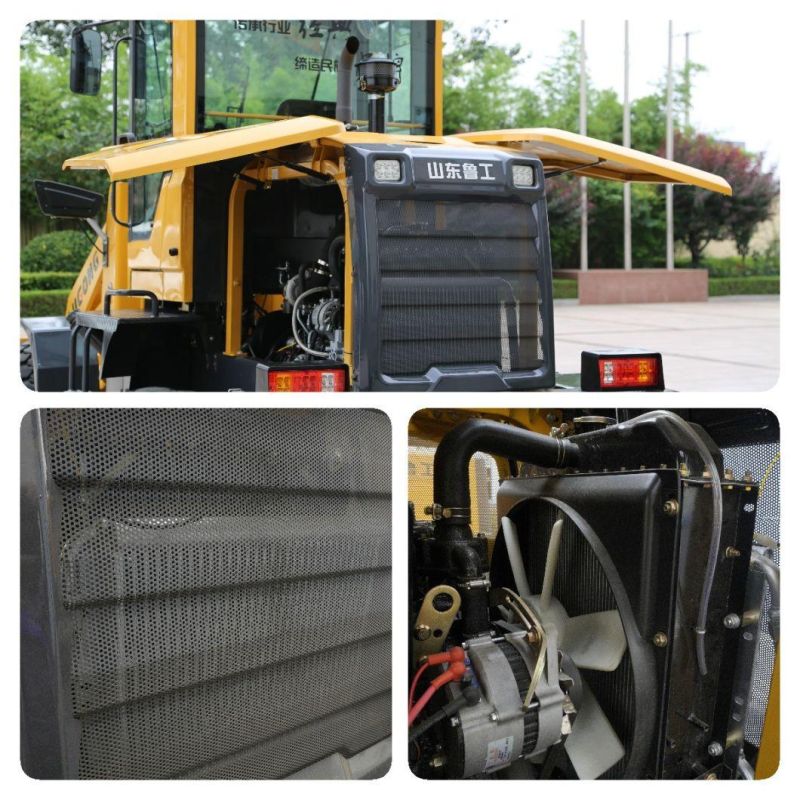

3.Cooling systerm

•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked

4.Appearance

•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.


Other Details

• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;

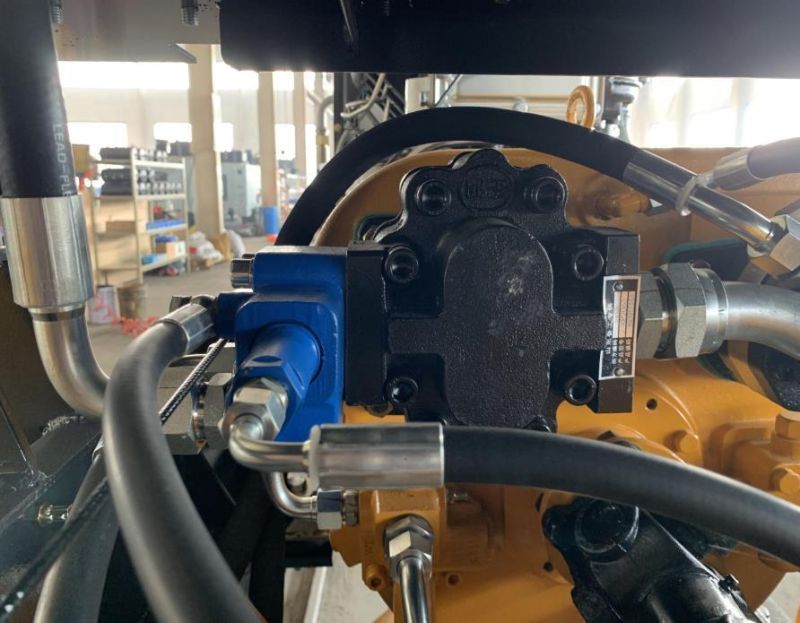

•Integrated pump and valve without hose increases safety and reduce fault;

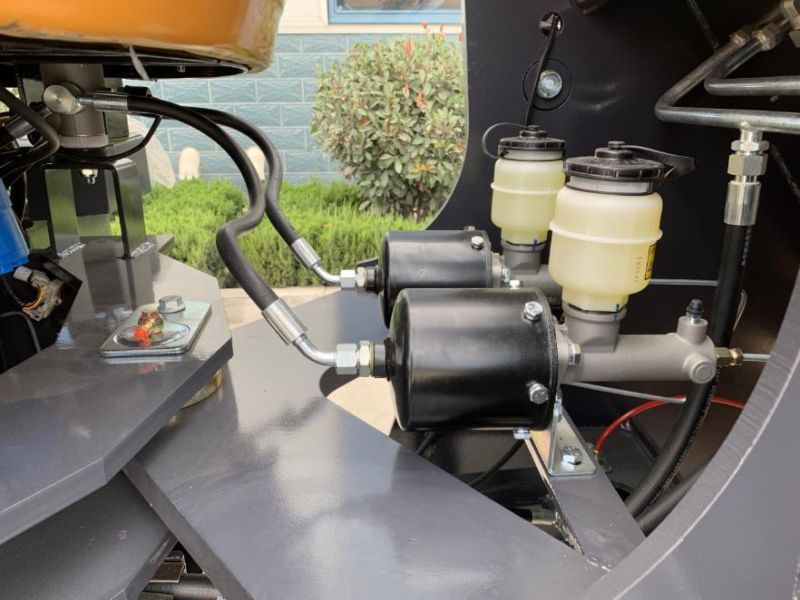

•Front and rear brake pumps separated design prevents brake failure;
•LED lights are more bright and have longer life;

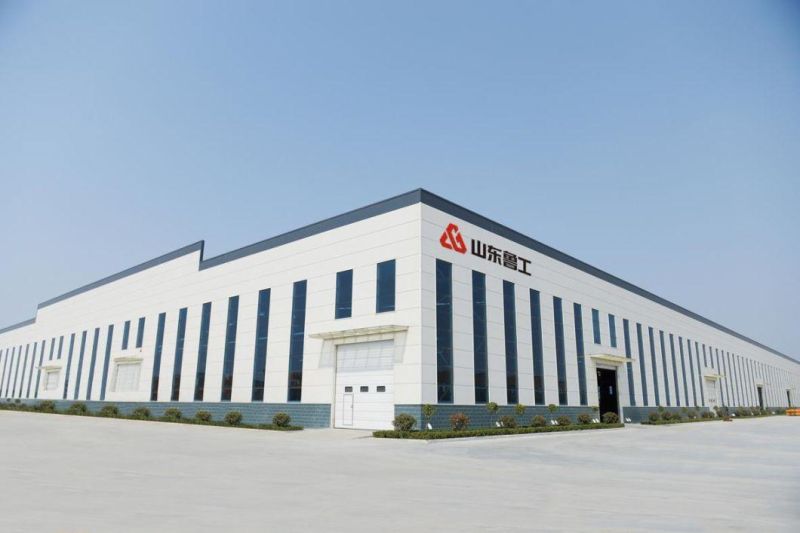

Brief introduction of factory



•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year

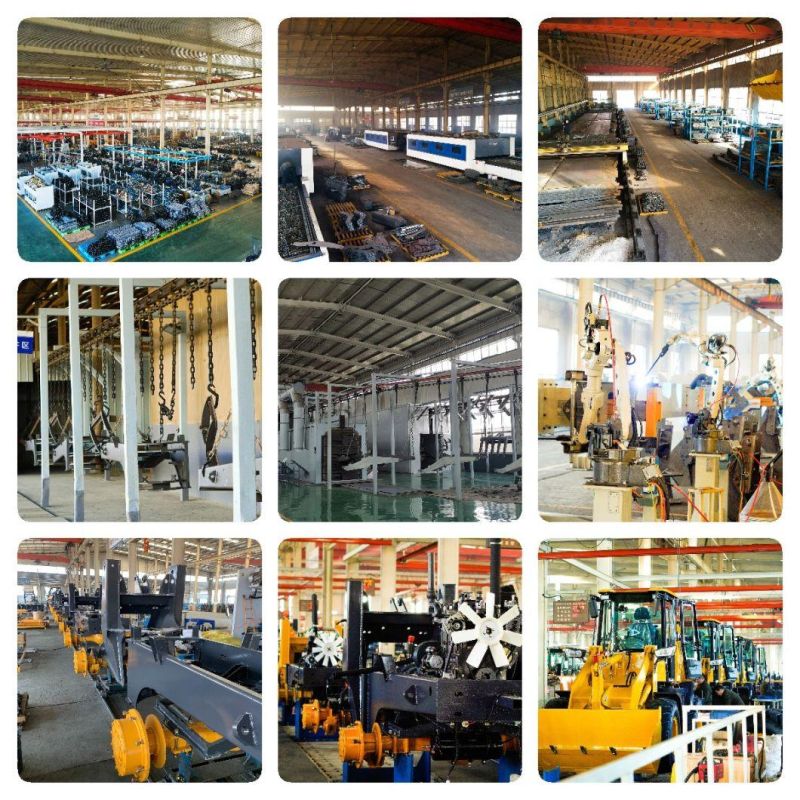

Production Line




Honor and Certificate

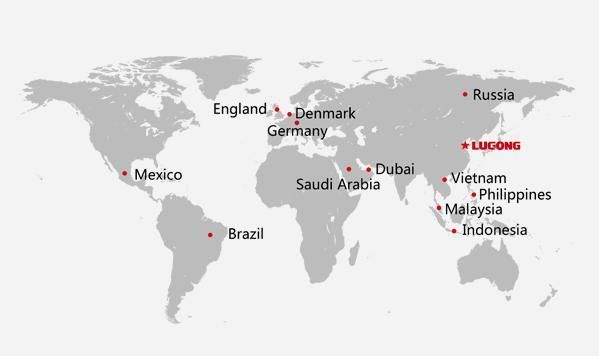

Market Distribution

Lugong compact wheel loaders are mainly sold in China and exported to  Australia, Africa, Southeast Asia, South America and Russia etc.
