• Model NO.：HWL300R
• Certification：CE, ISO 9001:2000
• Condition：New
• Pile Length：3m
• Walking Motor Rated Pressure：18MPa
• Hydraulic System Pressure：20MPa
• Rod Diameter：0-400mm
• Transport Package：FCL
• Specification：4650*2150*2700mm
• Trademark：Hengwang
• Origin：China

Basic Info.

Model NO. HWL300R Certification CE, ISO 9001:2000 Condition New Pile Length 3m Walking Motor Rated Pressure 18MPa Hydraulic System Pressure 20MPa Rod Diameter 0-400mm Transport Package FCL Specification 4650*2150*2700mm Trademark Hengwang Origin China

Product Description

Product Description
 3m Hydraulic Rotary Press Piling Machine is multifunctional pile driving machine for mine,with 360 degrees of freedom to rotate,multi angle pile function.The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
 QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.

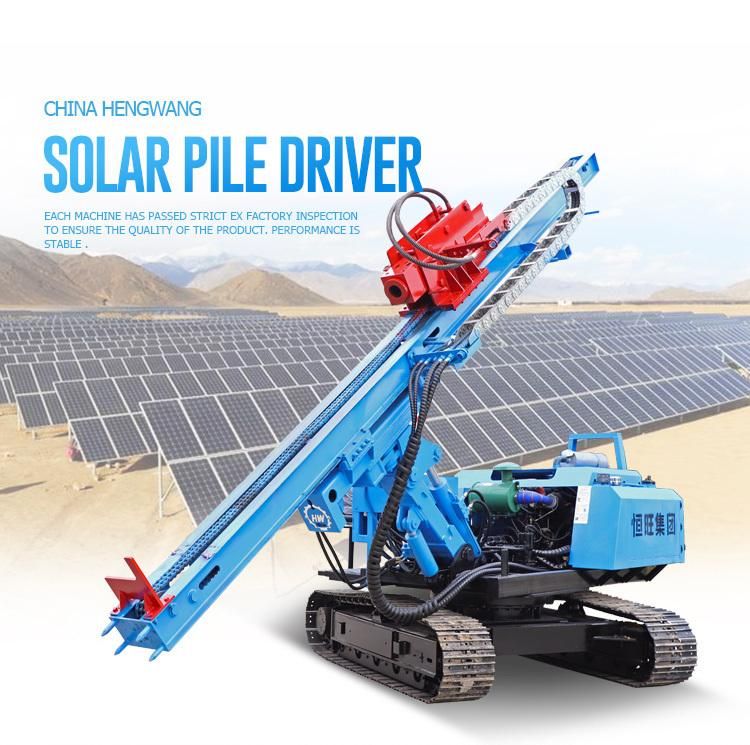

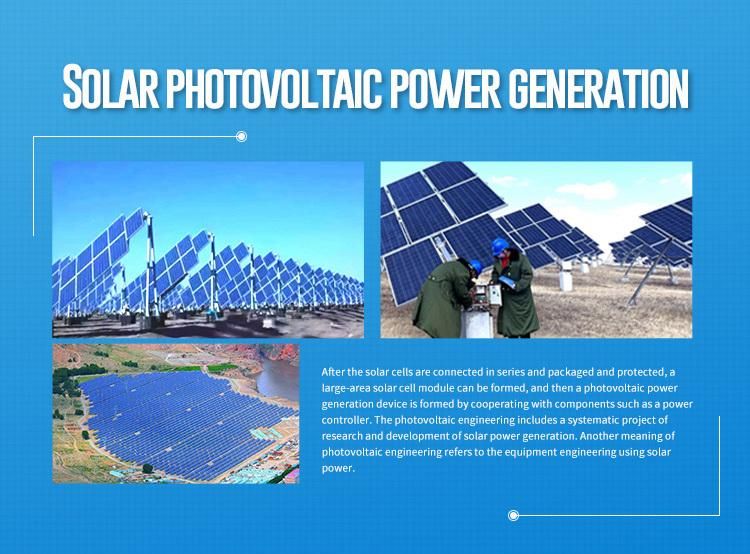

Solar Photovoltaic Power Pile Driver.

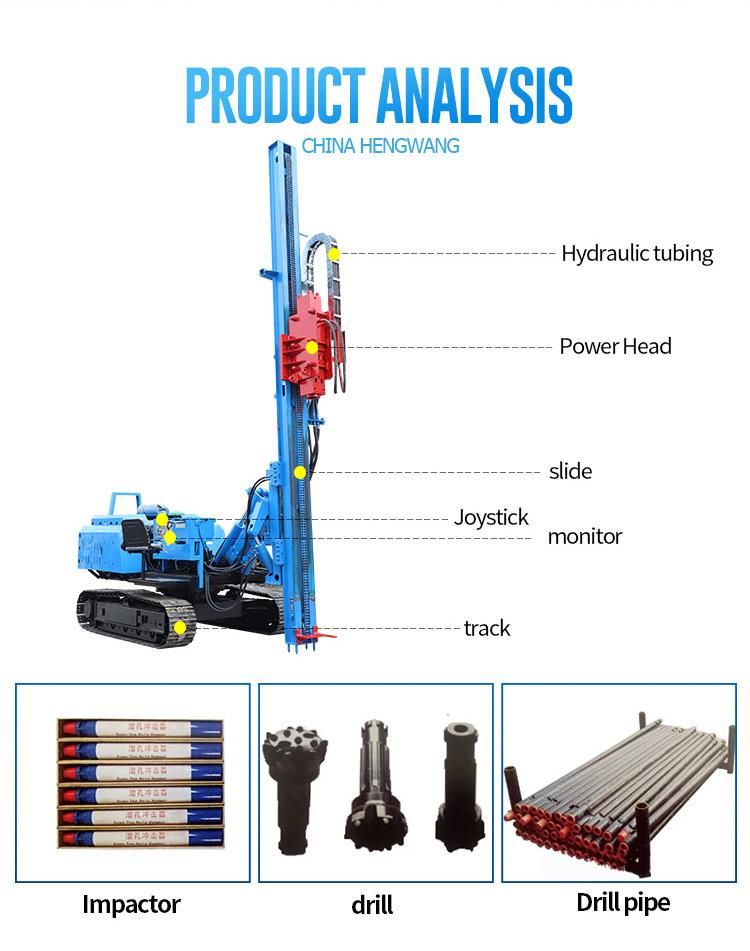

Product Ananlysis of Hydraulic Pile Driver.

Technical Parameter

Model	HWL300R	Remark
Hammer impact	780J	Joule,we can make more powrful impact as your demand
Pile length	0-3000	mm
Duplex gear pump pressure	20	Mpa
Duplex gear pump displacement	40	ml/r
Hydraulic system pressure	20	Mpa
Main valve flow	120	L/Min
Overall Machine weight	5.8	T
Diesel engine power	80	KW
Rated Speed	2400	R/min
Starting Voltage	24	V
Rotation angle	360	°
Rotation semi diameter(rotating shaft to Pod distance)	1925	mm
Effective press pile stroke	0.-3000	mm
Dimension(LXWXH)	4600*2150*2800	mm
Track shoe	350	mm
Walking motor total displacement	1575	ml/m
Walking motor rated pressure	18	Mpa
Walking motor output torque	4300	N.M
Walking motor rotate speed	50	r/min
Press Pile Diameter	0-600	mm
Drilling Depth	0-3000	mm
Operating Speed (m/min)	1.5	90s/per pile
Number of impacts / strokes per 1 minute	900	times/min
Maximum length of Piles to be rammed	3	M
Walking speed	5-10	Km/hr
Gradeability	0-35	°
Oil tank capacity	200	L
Hydraulic tank capacity (L)	500	L

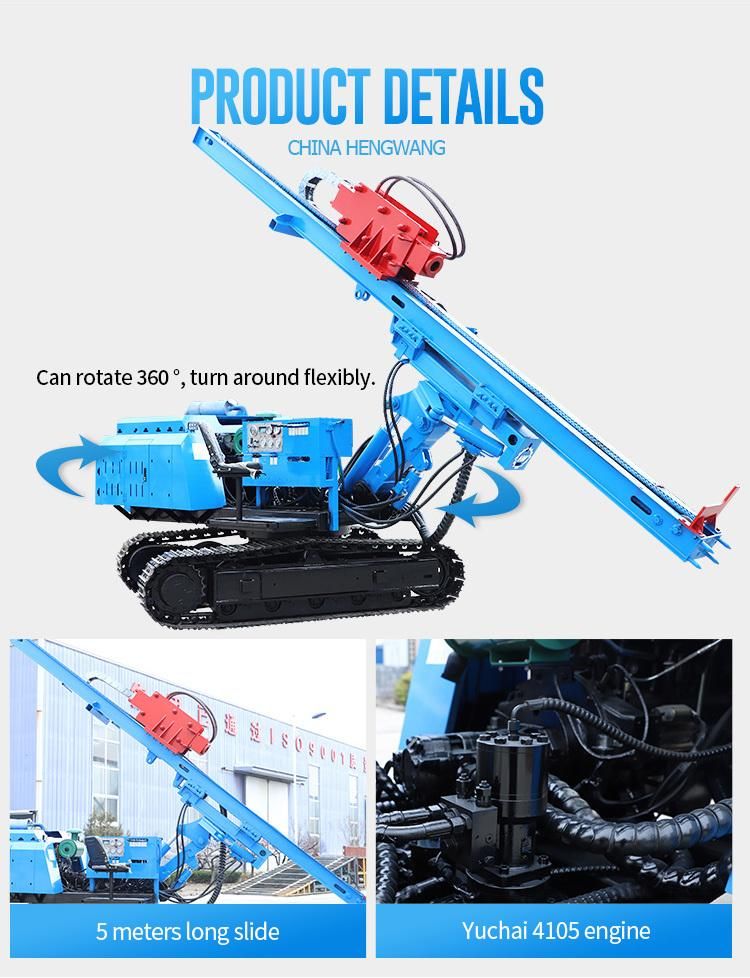

Product Details of Solar Pile Driver.

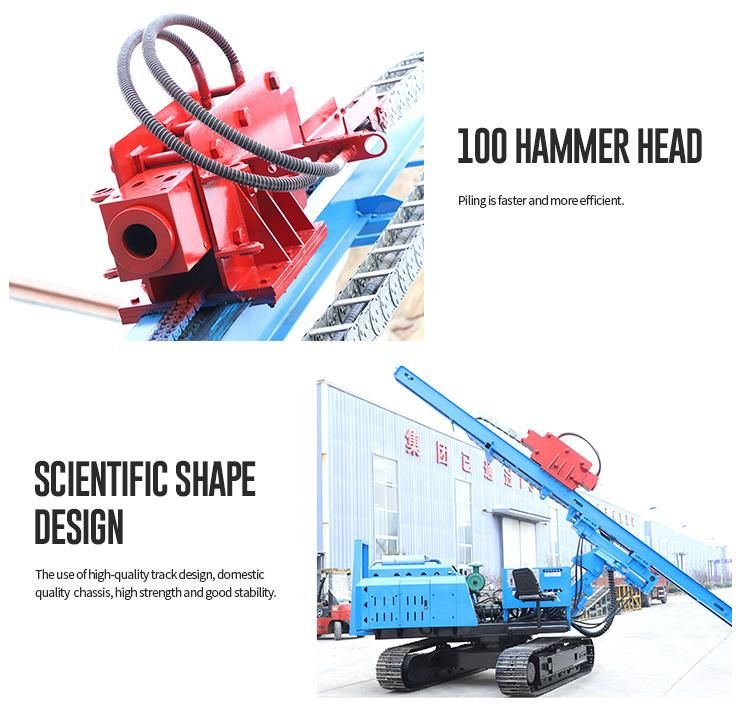

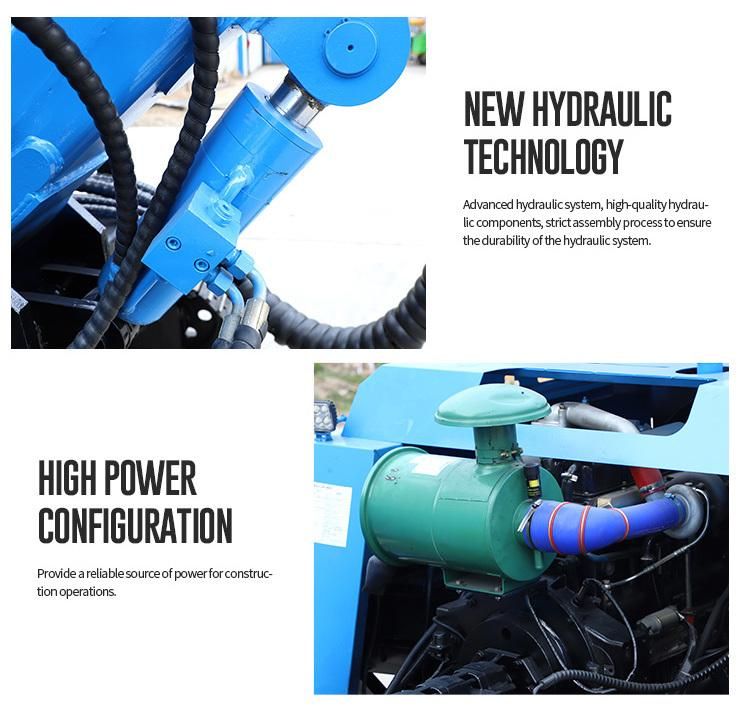

Hydraulic Pile Driver Detailed images.

Hydraulic Pile Driver Detailed images.

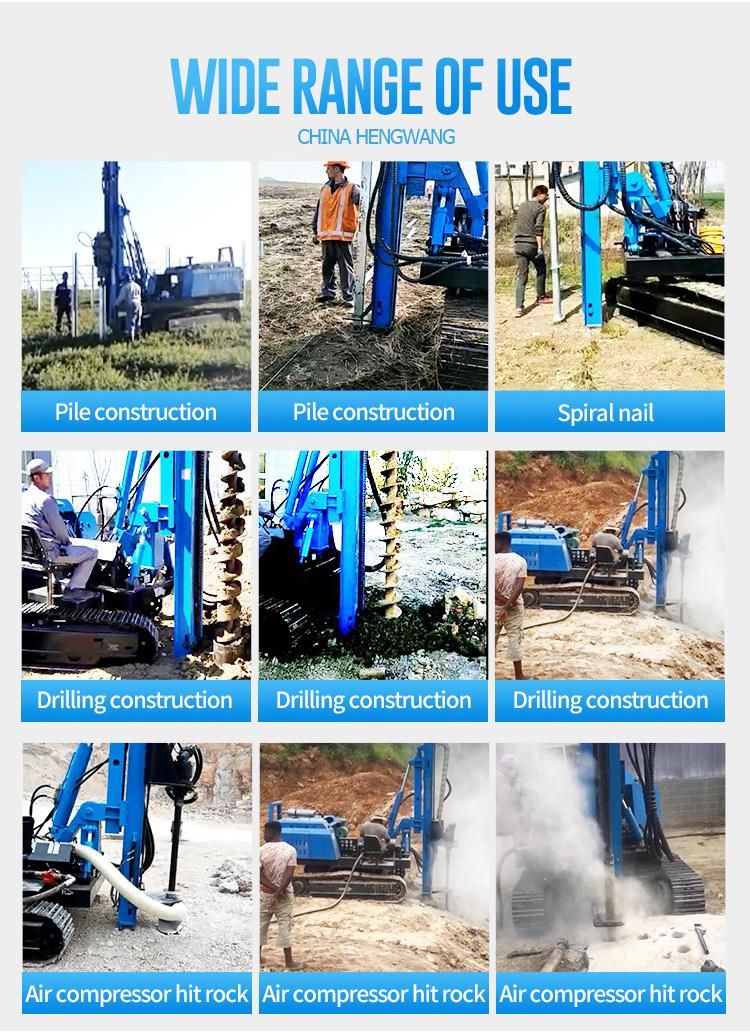

Wide Range of use, Hydraulic Solar Pile Driver.
