• Model NO.：SWPU80,90,100
• Compartment Number：3
• Hydraulic Drive Motor：Doosan
• Drive Chain：2 ,3 or 4
• Weight：5.5 -25.5 Ton
• Material of Pontoon：Alloy Steel
• Warranty：1 Year
• Product Name：Pontoon Undercarriage
• Transport Package：Container
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：20000 Sets Per Year
• Package size per unit product：10200.00cm * 1800.00cm * 1840.00cm
• Gross weight per unit product：17000.000kg

Basic Info.

Model NO. SWPU80/90/100 Compartment Number 3 Hydraulic Drive Motor Doosan Drive Chain 2 ,3 or 4 Weight 5.5 -25.5 Ton Material of Pontoon Alloy Steel Warranty 1 Year Product Name Pontoon Undercarriage Transport Package Container Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 20000 Sets Per Year

Packaging & Delivery

Package size per unit product 10200.00cm * 1800.00cm * 1840.00cm Gross weight per unit product 17000.000kg

Product Description

Product Description

We offer hydraulic undercarriage pontoons for CAT, VOLVO, KOMASTU, ATLAS, DOOSAN WITH GOOD QUALITY AND COMPETITIVE PRICE.
Main advantages of Sinoway Hydraulic Undercarriage Pontoons
High grade steel material for pontoons
Sinoway pontoons are standard made with high grade steel sheets, which is with high tensile strength and good corrosion resistant. For special applications like off-shore or salty areas, full weathering steel pontoons are also available as optional. For those applications require extra anti-corrosion, Sinoway offer pontoons with marine grade ship plate steel.
Reliable structure for durability and easy maintenance
Each pontoon is with three independent compartments, hermetically sealed. Two or three chains on each pontoon. Dual-layer bottom plate structure ensure the pontoon for a much longer service life, marine coating is also available as optional.
Well protected hydraulics
The hydraulic traveling motors as well as the hydraulic hosed are well protected by the full sealed container which minimize the possibility of damage these parts when working in swamp or water area.
Three-piece welding
The pontoons are now welded with three-piece steel sheet structure in stead of normal four-piece, two bent steel plates are connected on the top, thus the eliminating of long welding seam makes the whole pontoon even durable and neater.

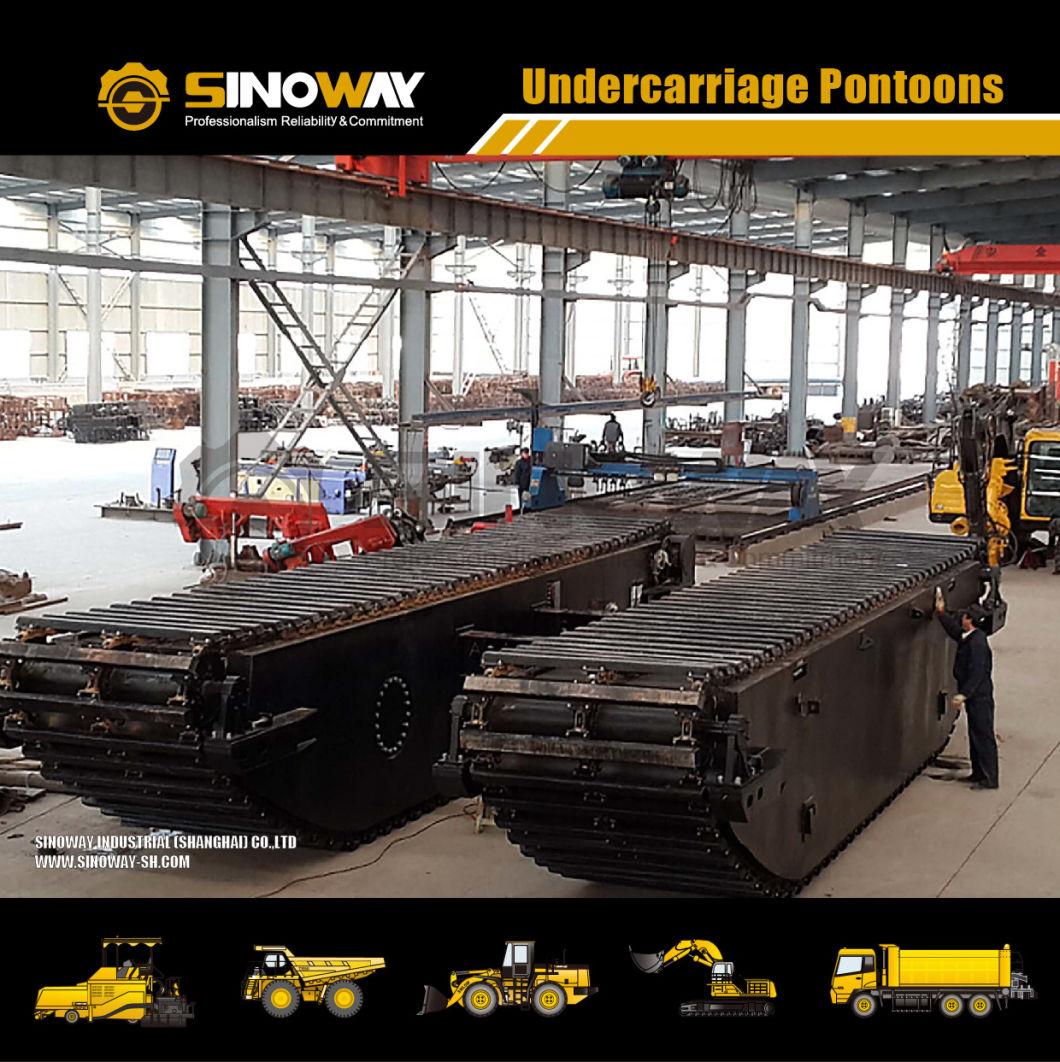

Product Show





Specifications


Pontoon	SWPU60	SWPU70	SWPU80	SWPU90	SWPU100
Pontoon length	6.7 m	7.1 m	8.5 m	9.5 m	10.2 m
Pontoon width	1.3 m	1.5 m	1.5 m	1.5 m	1.7 m
Pontoon height	1.4 m	1.5 m	1.5 m	1.5m	1.76 m
Track material	Steel or PE	Steel or PE	Steel or PE	Steel or PE	Steel or PE
Track width	1270mm	1454mm	1700mm	1700mm	1700mm
Chain numbers	2	2	3	3	3
Matching upper excavator	8 ton (CAT 308)	13~15ton (CAT 311,312,314)	20~23ton (CAT 320)	24~26ton (CAT 321,324)	25~28ton (CAT 324,329)
