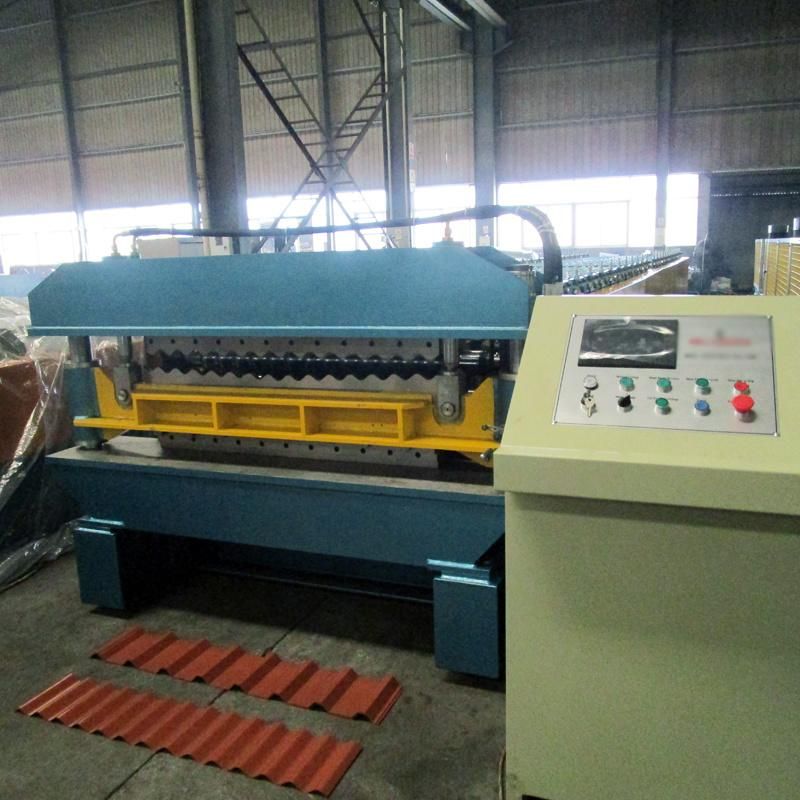

Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Making Machine Price
Hangzhou Zhongyuan Machinery Factory- Name：Double Layer Forming Machine
- Thickness of Raw Material：0.4-0.7mm
- Cutter Material：Cr12 Mould Steel Being Quenched Treatment
- Forming Speed：About 20-25m,Min
- Main Motor Power：7.5kw
- Controlling System：Mitsubishi PLC & Converter
Base Info
- Model NO.：Double Layer Forming Machine
- Transport Package：1*20gp+1*40gp
- Specification：CE SGS BV
- Trademark：zhongyuan
- Origin：China
- HS Code：84552210
- Production Capacity：15sets,Month
Description
ItemSpecification
Material Type Pre-painted steel coil & galvanized coils Thickness(mm) 0.4-0.7 Yield strength(mpa) 235-345 Roller material 45#Chrome steel Forming speed(m/min) About 20-25 Speed adjusting mode AC Frequency Roller drive Decelerating motor + Chain drive Cutting mode Hydraulic cutting Cutter material Cr12 mould steel Length measurement Encoder Control mode Mitsubishi PLC Operating mode Button + Mitsubishi Touch screen Main motor power(kw) 7.5 KW Total power(kw) 9.7 KW
Components of machine Decoiler 1set Feeding & guiding device 1set Main roll forming machine 1set Hydraulic cutting system 1set Controlling system 1set Output Table 1set
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - Output Table
Why Choose this machine?
1. Lifetime seivices

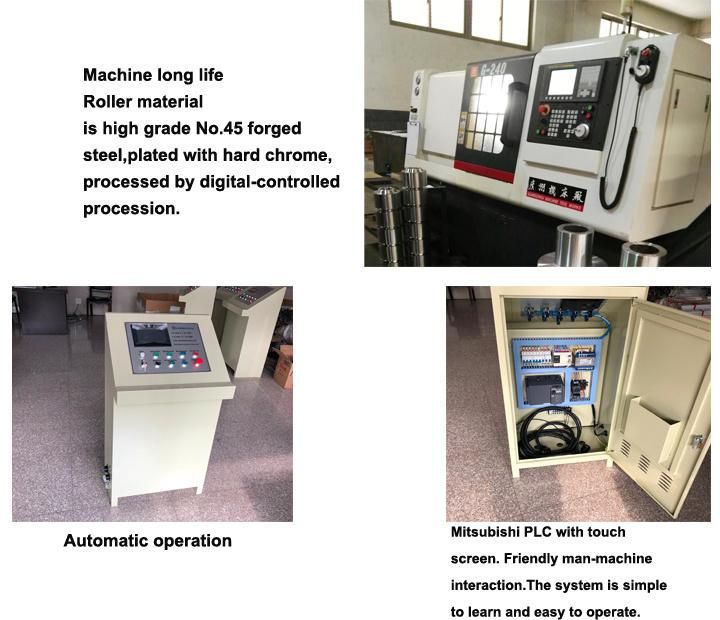

2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome

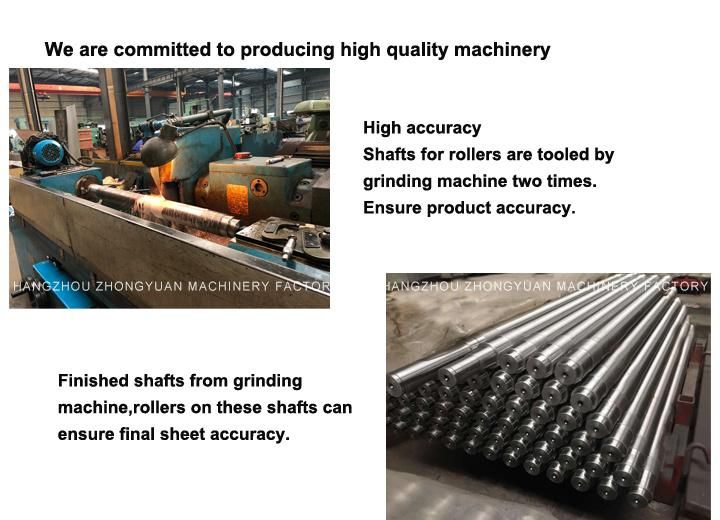

72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
Certificate:
Customer Visit:
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Get Free:
Provide profile drawing & design technical support FOR FREE!
Contact Us:
Website:cnzhongyuan.en.made-in-china.com
Factory Address:No. 228 Yongli, Nanyang Street, Xiaoshan District, Hangzhou, Zhejiang, China
