Liugong 3ton Mini Excavator 9035e with 0.06-0.3cbm Bucket

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Crawler Excavator
  • Usage：GM Excavator
  • Bucket：Backhoe
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：9035E
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：0.06-0.3cbm
  • Size：Small-Scale
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Operating Weight with Cab：3980 Kg
  • Operating Weight with Canopy：3860 Kg
  • Engine Power：21.2 Kw (28.4 HP),2400 Rpm
  • Maximum Travel Speed (High)：4.6 Km,H
  • Maximum Travel Speed (Low)：2.7 Km,H
  • Maximum Swing Speed：10 Rpm
  • Track Shoe Width (Std)：300 mm
  • Digging Depth：3085 , 3440 mm
  • Dumping Height：3310 , 3463 mm
  • System Pressure：24.5 MPa
  • System Maximum Flow：92.4 L,Min ( 24 Gal,M)
  • Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
  • Specification：4810 , 4860 mm*1700 mm*2500 mm
  • Origin：China
  • Production Capacity：300piece,Month

Description

Operating weight with cab3980 kg  Engine power21.2 kW (20.4 horsepower) @ 2,500 rpm Net.  Bucket capacity0.03-0.3 m³  Maximum travel speed (High)4.5 km/h  Maximum swing speed9.5 rpm  Arm breakout force12 kN  Bucket breakout force20 kN  Shipping length4160 mm  Shipping width1550 mm  Shipping height2450 mm  Track shoe width (std)300 mm  Boom2080 mm  Arm1300 mm  Digging reach4757 mm  Digging reach on ground4648 mm  Digging depth2857 mm





Model 9018F9035E906EOperating weight with cab1900 kg3980 kg5900 kgOperating weight with canopy1800 kg3860 kg/Engine modelYan-mar 3TNV80FYan-mar 3TNV88-BPLYYan-mar 4TNV94L-BVLYEngine power13.4 kW@2200 rpm22.2 kW@2400 rpm36.2 kW  @ 2100 rpmStandard bucket0.045 m³0.11 m³0.21 m³Maximum swing speed9.5 rpm10 rpm10.4 rpmCutting height3385 mm4710 / 4843 mm5790 mmDigging reach3910 mm5385 / 5715 mm6205 mmDigging depth2290 mm3085 / 3440 mm3875 mmDumping height3385 mm3310 / 3463 mm4135 mmDimension3707*1290*2350 mm4860*1700*2500 mm5900*1900*2630 mm

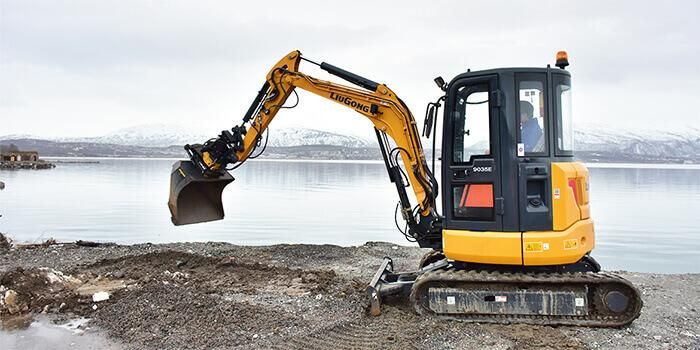

Liugong 3ton Mini Excavator 9035e with 0.06-0.3cbm Bucket
