• Model NO.：3*25+2*10
• Color：as Customer Request
• Model：25mmx3c+10mmx2c
• Transport Package：Standard Export Packing
• Specification：1 set
• Trademark：SYM; YONGMAO;
• Origin：China
• HS Code：8131499900
• Production Capacity：20000 Meter,Meters Per Week

1). Standard: IEC60502

Our cable can be manufactured according to companys specification which is equivalent to IEC 60502, IEC 60332, and IEC 60754.

(2). The rated voltages

U0/U(Um) of the cables considered in this standard are as follows:

U0/U(Um) =0.6/1KV  3.6/6(7.2)-6/10(12)-8.7/15(17.5)-12/20(24)-18/30(36)KV

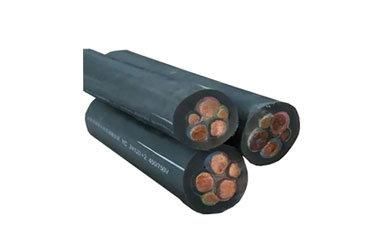

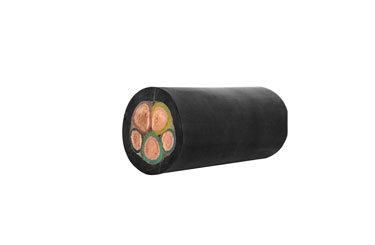

3). Detail Description or Construction:

Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.

4). Application: Tower Crane and Passenger Hoist

5). Marking: According to the customer

6). Installation: CU/XLPE/SWA/PVC and CU/PVC/SWA/PVC power cable can be installed in air, duct, conduit or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation

7). Properties and functions:
The cable is extruding weather ability XLPE insulation,weather ability HDPE insulation or black weather ability PVC insulation out of the compacting

Simple construction, good mechanical, physical and electrical properties, enough safety, it also has good properties of resistance to tracking, surface discharge resistance, resistance to weathering. It has smaller laying distance, line length, voltage drop when comparing with bare wire, especially in reducing accident and ensuring safety of the body. The cable can be used in city, country, mountain area, forest area, mining area, and is an all-weather new product of cable.

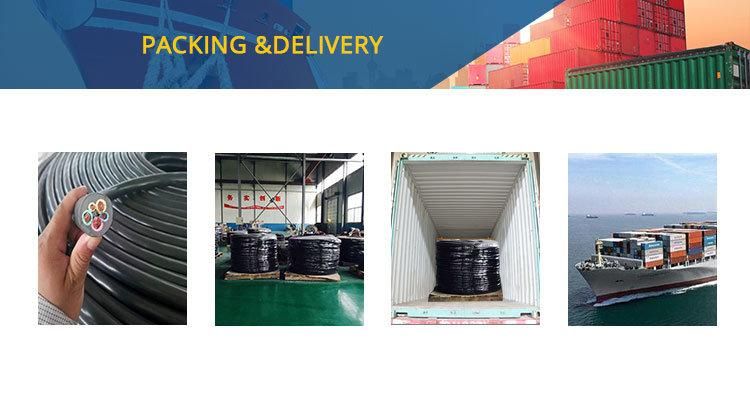

Packing and Shipping:
