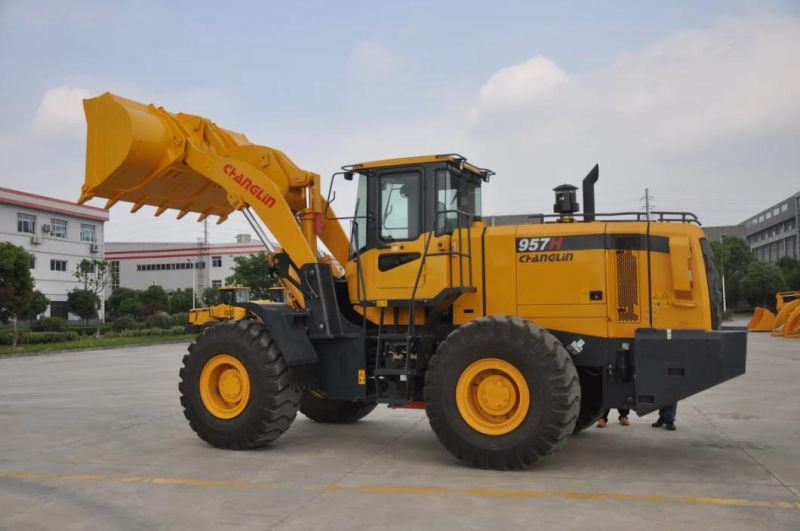

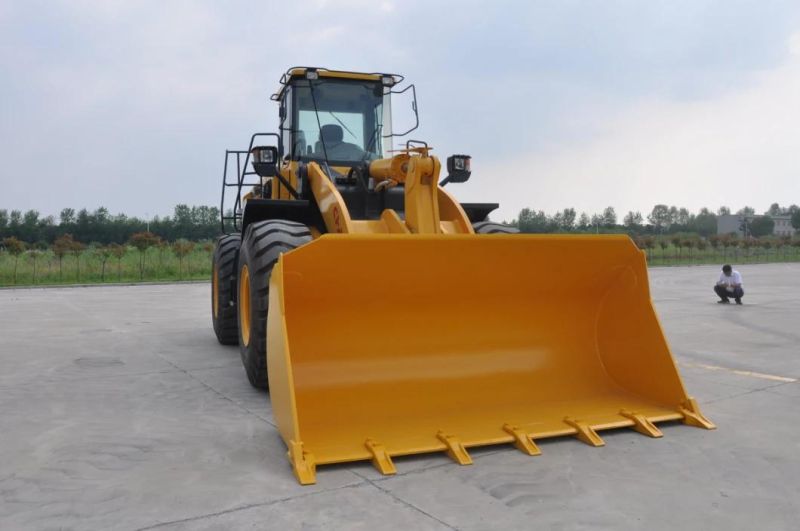

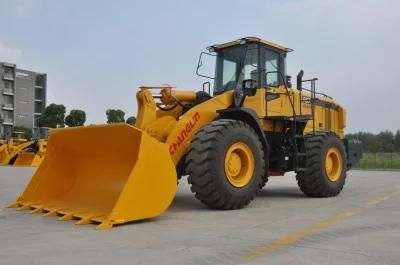

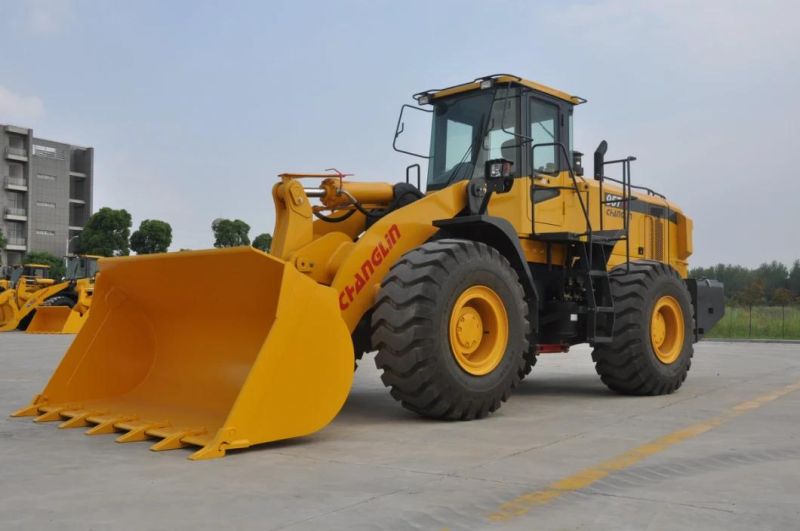

• Model NO.：957H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Operating Weight：17300kg
• Transport Package：Nude Package
• Specification：8930*2945*3450mm
• Trademark：Changlin
• Origin：Jiangsu, China
• Production Capacity：50units,Month

2. Its KD switch allows better efficiency and easy operation.
3. This wheel loader employs the famous original GRAZIANO wet type axle with multi-disc limited slip differentials to deliver maximum traction under changing traction conditions.
4. It is equipped with reliable transmission and torque converter.
5. The bucket of this wheel loader features automatic leveling ability and its boom comes with position limitation.
6. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

model

957H(956)

Rated bucket capacity:

3m³

Rated load

5000kg

Max. dump clearance

3136mm

dump reach

1121mm

engine brand

cum ins/shangchai

engine model

6LTAA 9.3

transmission

957H.2C

axle

957H.6

rated speed

2200r/min

Rated output:

162kw

Operating weight

17300

brand

SINOMACH

model

957H

Max. breakout force

170kn

Max. traction force

160kn

steering angle

38°

Wheel base:

3300

Size of tire

23.5-25

Min. turning radius

6851mm

gear1(forward)

6.9km/h

gear2(forward)

11.2km/h

gear3(forward)

35km/h

reverse speed

9.1/14.3/37.1

Cycle time

11s

Length:

8390

Width:

2946

Height:

3450
