High Pressure Inflated Water Filled Steel Hydro Bag for Pushing Block
Xiamen Bestlink Factory Co., Ltd.- Type:Excavator Bucket
- Application:Paving Machinery
- Certification:ISO9001: 2000
- Condition:New
- Material:Carbon Steel
- Thickness:2mm
Base Info
- Model NO.:BL1010
- Certificate:China Patent
- Weight:2.5 ~ 20 Kgs
- Transport Package:Wooden Case
- Specification:500*500mm
- Trademark:BESTLINK
- Origin:Xiamen, China
- HS Code:7309000
- Production Capacity:5000000PCS Per Year
Description
Basic Info.
Model NO. BL1010 Certificate China Patent Weight 2.5 ~ 20 Kgs Transport Package Wooden Case Specification 500*500mm Trademark BESTLINK Origin Xiamen, China HS Code 7309000 Production Capacity 5000000PCS Per YearProduct Description
High Pressure Inflated Water Filled Steel Hydro Bag for Pushing BlockProducts Feature:
The steel cushion Hydro Bag is widely used in the marble and stone quarrying industry, specially for stripping blocks from the mountain.
The revolutionary aspect of the HYDRO BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the jacks since the HYDRO BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut.

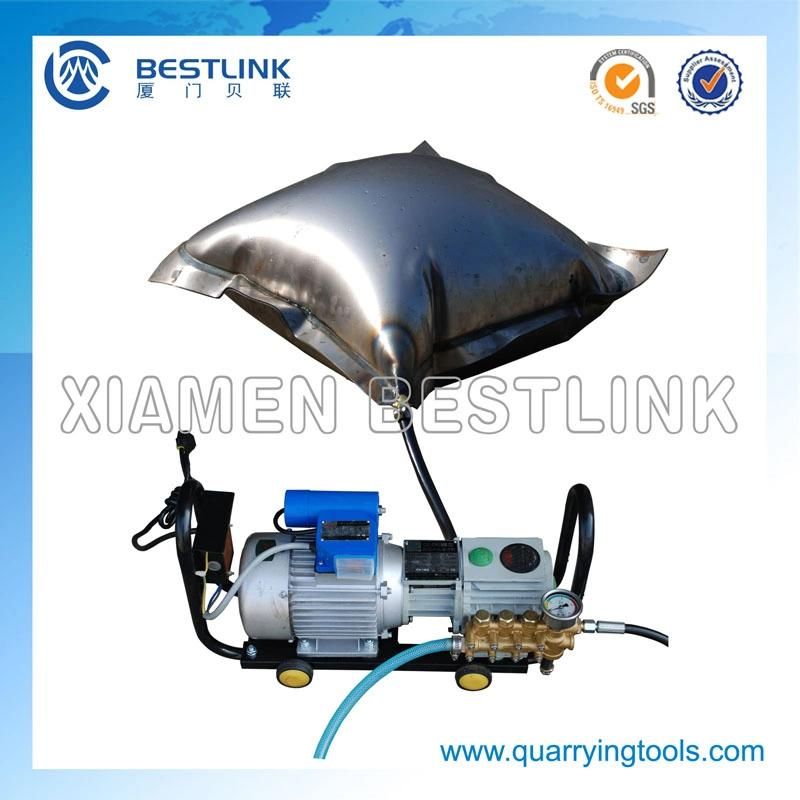

A complete HYDRO BAG equipment consists of:
1. Electric or pneumatic pump unit to create the pressure for the cushions;
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings;
5. A series of HYDRO BAG cushions.

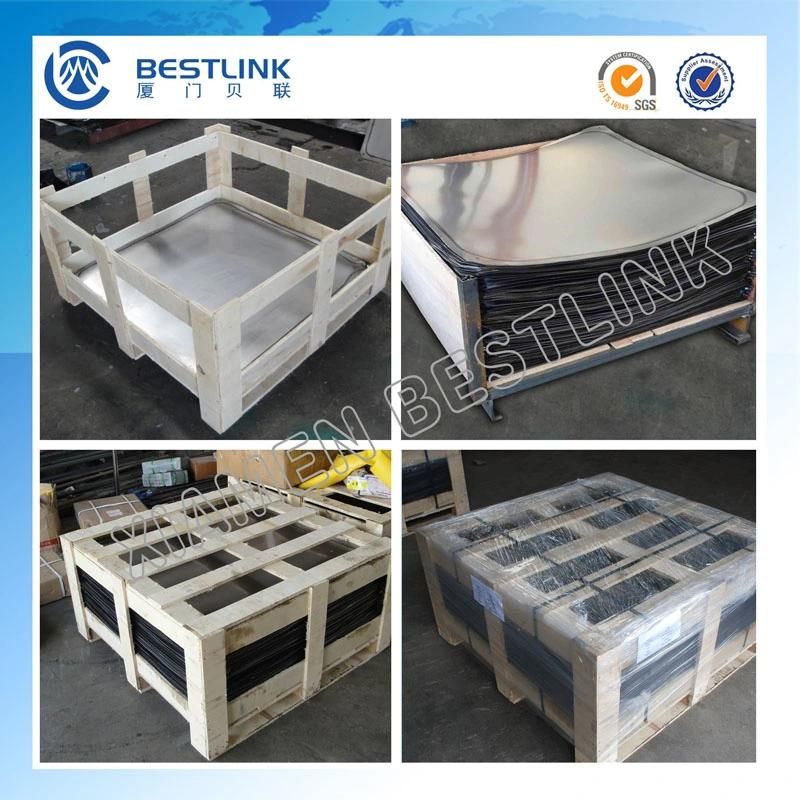

Package for the quarry stone Hydro bag:
This Quarry Stone Pushing Tools Steel Hydro Bag will be packing into the wooden case, if the qty is enough.
If you only need a few qty, those hydro bags will be packaged with a steel packing belt.

Specification:
Specification | Theoretical Pushing Capacity | Net weight (kg) |
50*50cm | 75 tons | 2.5 kgs |
100*50cm | 150 tons | 5.0 kgs |
100*100cm | 300 tons | 10.0 kgs |
100*200cm | 600 tons | 20.0 kgs |
150*150cm | 675 tons | 22.5 kgs |
Pump Unit:
Item | Power | Specification | Weight |
High Pressure Water Pump | Electric | 2 phase, 220V/50Hz | 25.0 kgs |
High Pressure Water Pump | Pneumatic | air consumption 2 cbm/min, 5-7 bar | 25.0 kgs |
Other optional for pushing stone block, reusable:
