• Model NO.：LZ-5E
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Customized
• Other Type：Air Motor, Diesel Engine
• Rated Output：5m 3 ,H
• Max. Horizontal Conveying Distance：200m
• Max. Aggregate Size：15 mm
• Conveying Hose Inner Diameter：51mm
• Transport Package：Plastic Wrap, Plywood Case
• Specification：ISO, CE, SGS
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-5E Certification ISO9001: 2000, CE, SGS Condition New Color Customized Other Type Air Motor, Diesel Engine Rated Output 5m 3 /H Max. Horizontal Conveying Distance 200m Max. Aggregate Size 15 mm Conveying Hose Inner Diameter 51mm Transport Package Plastic Wrap, Plywood Case Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

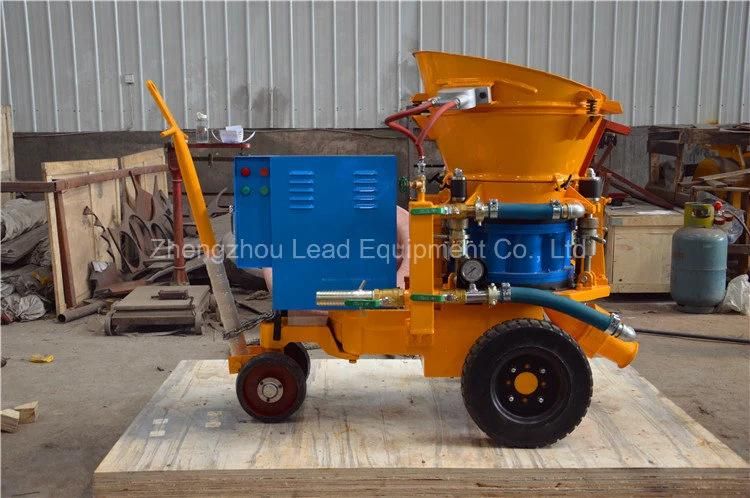

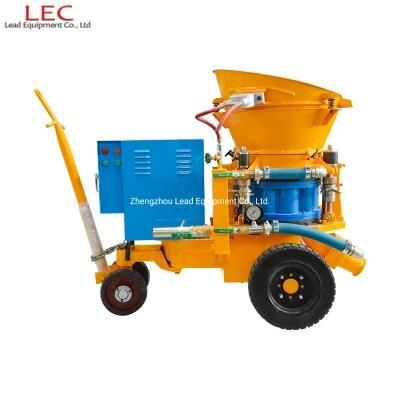

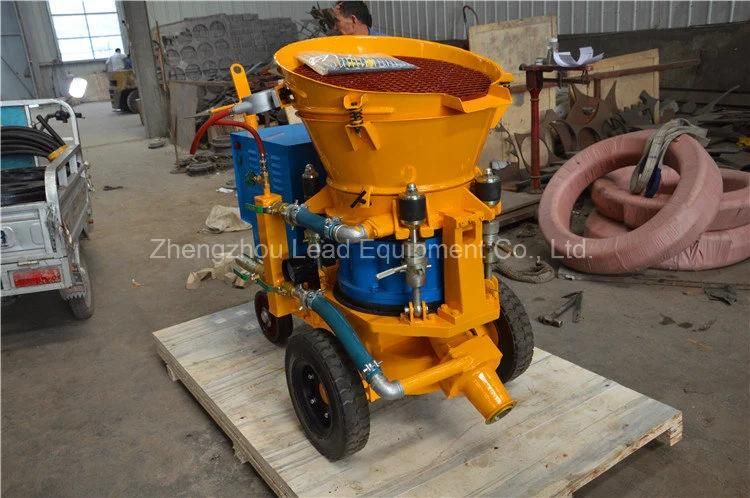

LZ-5E electric shotcrete beton spray gunning gunite machine



Description:
LZ-5 is LEC medium-sized shotcrete machine for the processing of dry mix. And it is widely accepted and used by so many contractors.
LZ-5 can be used for tunneling, mining operations, hydropower projects and hill side projects, etc.

LZ-5 is available in following versions:
Air motor drive,  electric motor drive or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel



Features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.


Technical data:
Electric motor drive:

Rated Output	5m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤ 1.3~5
Water Cement Ratio	< 0.4
Max. Aggregate Size	Φ 15 mm
Conveying Hose Inner Diameter	51mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	8~9m 3 /min(285-325CFM)
Motor Power	5.5kW(7.5hp)
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height	1.1m
Rotor Speed	11r/min
Overall Dimension(L× W× H)	1.35× 0.75× 1.2m
Net Weight	720kg

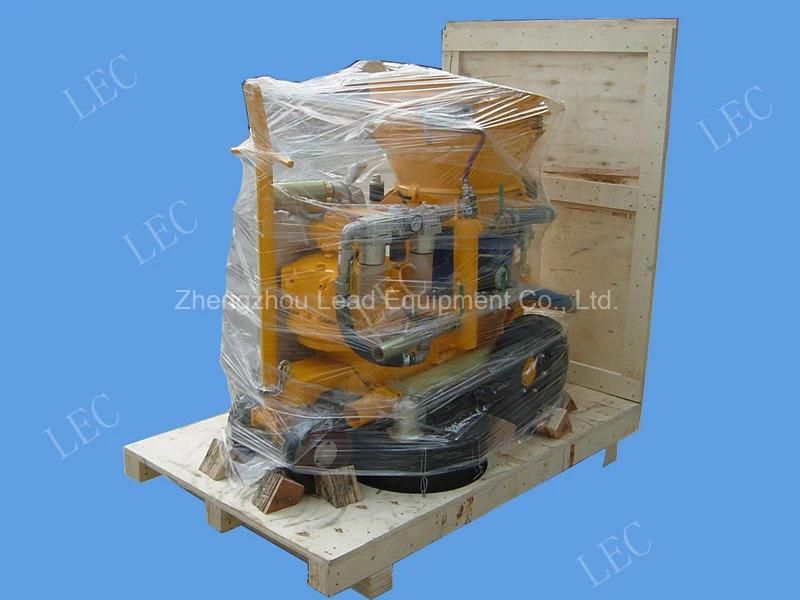

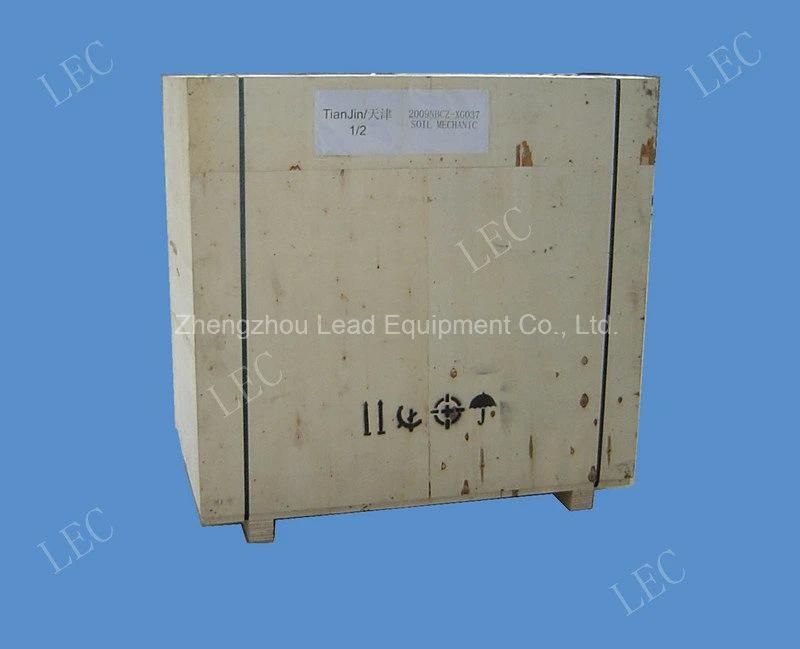

Packaging of gunite machine:
