• Model NO.：sd40
• Structure：Spiral Type
• Productivity：120m3,H
• Feeding Height：1370mm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Air Compressor：3kw
• Electromagnetism Valve：1
• Drawbar Pin：1
• Batching Control Meter：Made in China
• Circuit Breaker：Delixi
• Connecting Cable and Accessories：Made in China
• Cement Silo：100t,150t,200t,300t
• Cement Screw：φ219*8
• Hoisting Mixer System：Discharge Height 4m
• Aggregate Hoisting and Measuring System：Made in China
• Aggregate Feeding Type：Belt Conveying Type
• Concrete Mixer Power：2X37kw
• Name：Ready Mix Concrete Plant
• Mixing System：Twin Shaft Js2000 Concrete Mixer
• After-Sales Service Provided：Field Installation, Commissioning and Training
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474310000
• Production Capacity：5000PC,Year

 TypeHZS120The whole plantTheoretical productivity (m3/h)120Standard discharge height(m)4Working cycle time(s)120Outline dimensions(L*W*H mm)55885*20200*21600Total installed power210The mixer sectionTypeJS2000Batching machine sectionTypePLD3200Pneumatic systemAir compressor model1.8-7Rated exhaust volume(m3/min)1.67Rated exhaust pressure(MPa)0.8Motor power(KW)15Weighing systemGravel metering accuracy range (kg) percentage+_2%Cement metering accuracy range (kg) percentage+_1%Water metering accuracy range (kg) percentage.+_1%Additive metering accuracy range (kg)+_2%ModelCapacity (m3/h)MixerAggregate batcherDischarge height (m)3.83.83.83.83.844Cycle time (s)60606060606060Weighing accuracyAggregate±0.02±0.02±0.02±0.02±0.02±0.02±0.02Cement±0.01±0.01±0.01±0.01±0.01±0.01±0.01Water±0.01±0.01±0.01±0.01±0.01±0.01±0.01Additive±0.02±0.02±0.02±0.02±0.02±0.02±0.02

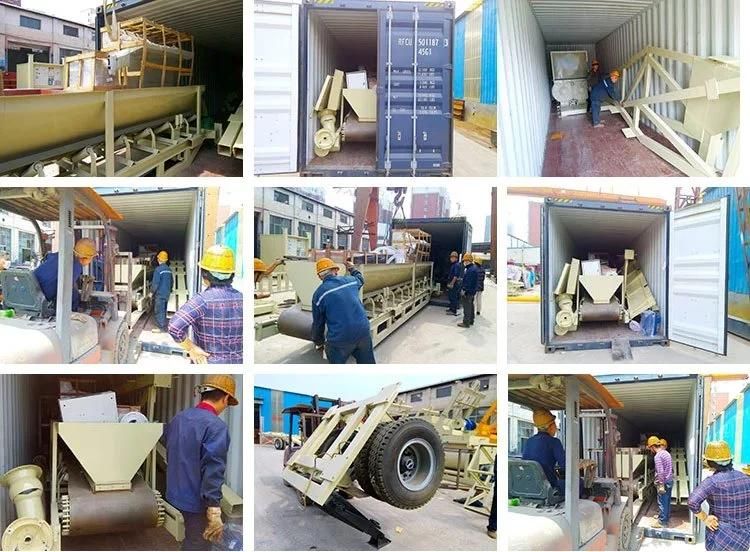

Packing & Delivery

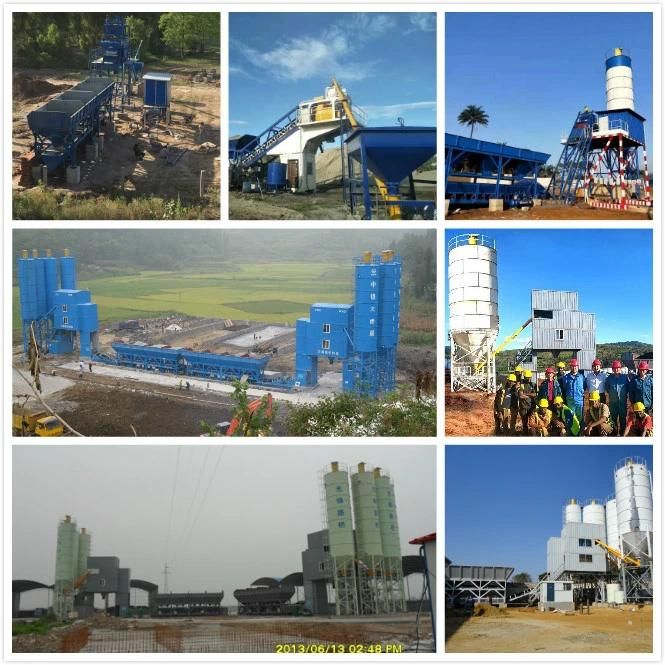

Our Cases
