• Model NO.：ZT930ks
• Type：Large Loader
• Operating Weight：7000kg
• Engine Power：75kw
• Drive Type：Hydraulic Doubule Change, Power Shift
• Color：Yellow, Gray
• Rated Speed：2200rpm
• Standard Bucket：1,0.85m3
• Max. Dump Height：1800mm
• Loader Unloading Distance：1035mm
• Tyre：16,70-20,10.00-20
• Total Cycling Time：9s
• Rated Load Capacity：2000kg
• Product Name：Mine Loader
• Transport Package：Nude
• Specification：5720*1650*2050mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842959000
• Production Capacity：30 Sets,Months

Basic Info.

Model NO. ZT930ks Type Large Loader Operating Weight 7000kg Engine Power 75kw Drive Type Hydraulic Doubule Change, Power Shift Color Yellow, Gray Rated Speed 2200rpm Standard Bucket 1/0.85m3 Max. Dump Height 1800mm Loader Unloading Distance 1035mm Tyre 16/70-20/10.00-20 Total Cycling Time 9s Rated Load Capacity 2000kg Product Name Mine Loader Transport Package Nude Specification 5720*1650*2050mm Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30 Sets/Months

Product Description

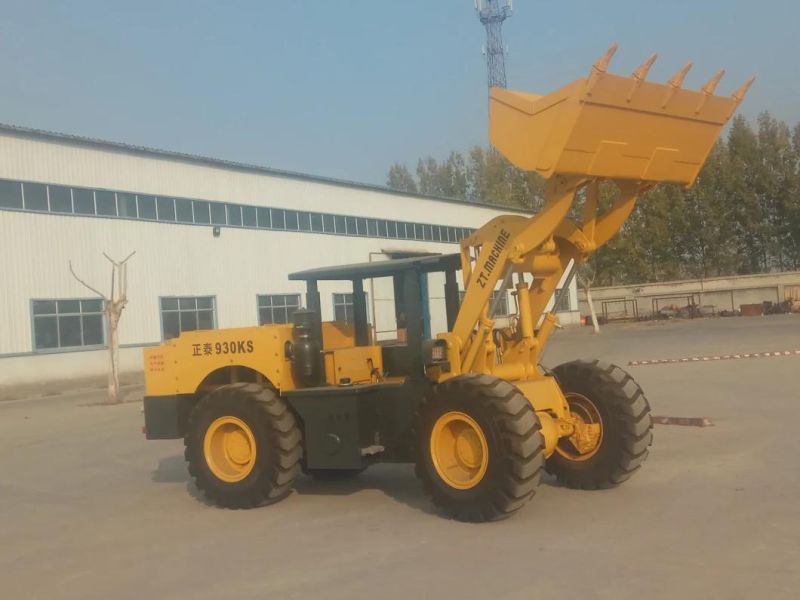

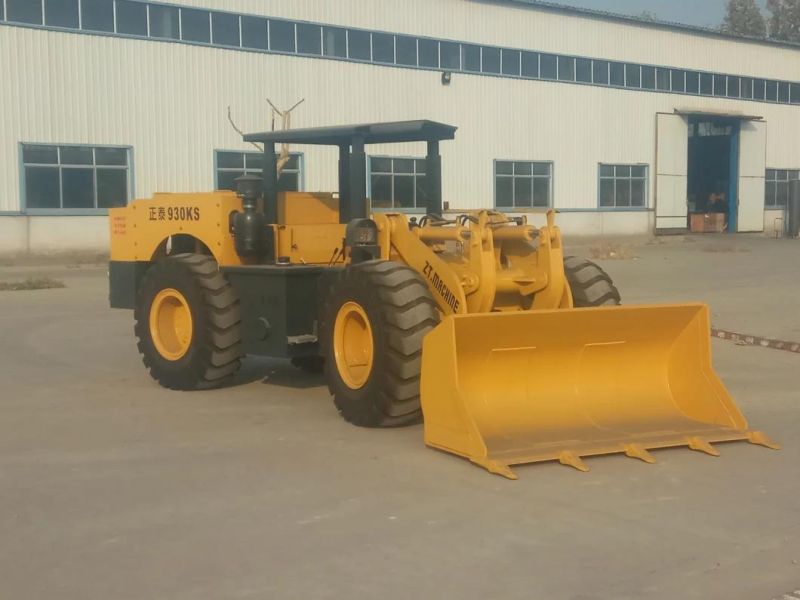

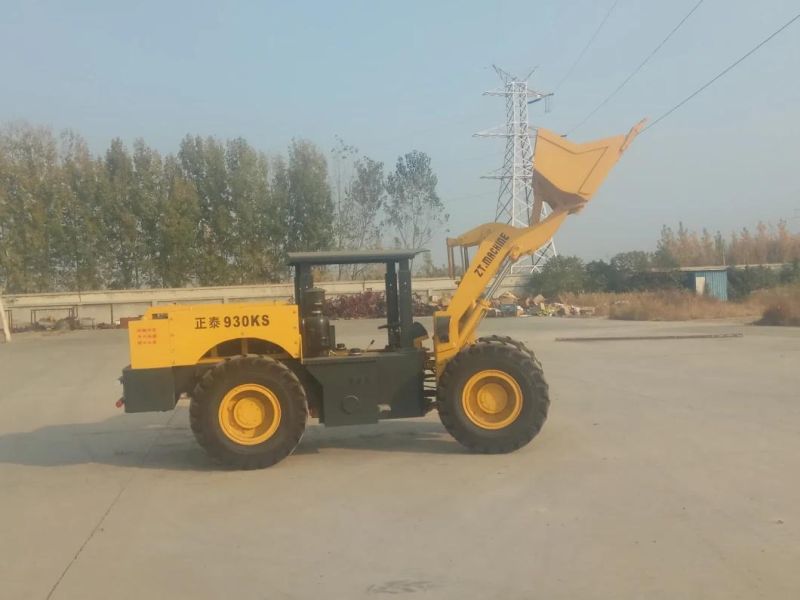

Mine Loader





 Mine loader is integrated, and the action is more flexible. The loader is equipped world famous brand driving axle, it has the characteristics of strong climbing ability, and suitable for geography in the underground Mine and Tunnel. With a High-powered diesel engines,Mine loader can load more capacity.

1,The ultra-low classis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines and underground mines.

2,The large steering angle makes it suitable for flexible operation in narrow mine tunnels.

3,Power shift gear-box, good reliability and easy to maintain.

4,Large capacity battery,Duration of work for 4 hours.

5,Higher efficiency: loading and withdraw coal up to 120 Cubic meter in one hour.

6,The seat design draw on the experience of underground working, greatly improved the front and rear visual range.

7,Integrated torque converter transmission.

8,Specifically tailored for the underground mine operation counter-shaft power-shift gearbox.



 Characteristic


1)  Articulated chassis structure, small turning radius, flexible steering, suitable for small space operations aircraft hydraulic operation, simple structure, easy operation, good performance, reliable quality travel system uses hydraulic gearbox and torque converter in harsh different working environments for different levels of the work force field generated torque, the protective effect of the whole

2) This type of underground Mining loaders is equipped with efficient, low-emission diesel engine. All important auxiliary functions and safety features come as standard. Combining smart geometry with powerful thrust, high breakout forces and responsive controls, they fill the bucket quickly and optimally while ensuring optimum operator safety and comfort. This, together with high tramming speeds, gives very fast cycle times, resulting in extremely high productivity and a low cost per ton shifted.

3)  Gas cap oil power braking system, caliper disc brakes, safe and reliable. Luxury integral dashboard, new luxury cab.

4)  Four-wheel drive, hub reduction drive axle, rear axle swing. Streamlined design, elegant appearance. Using the brand direct injection engine, the power reserve of large, energy efficient. Stepless, flexible operation, improved operating efficiency. To avoid the impact of mechanical shift caused when mechanical failure, and there is overload protection, and prolong life.

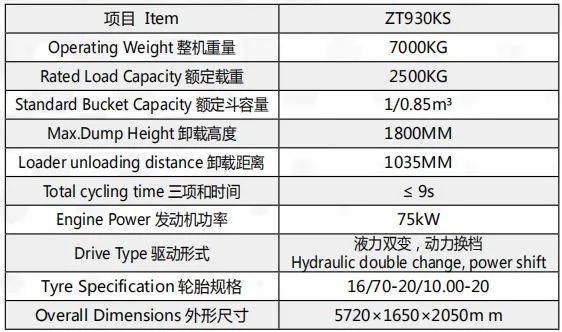

Specification

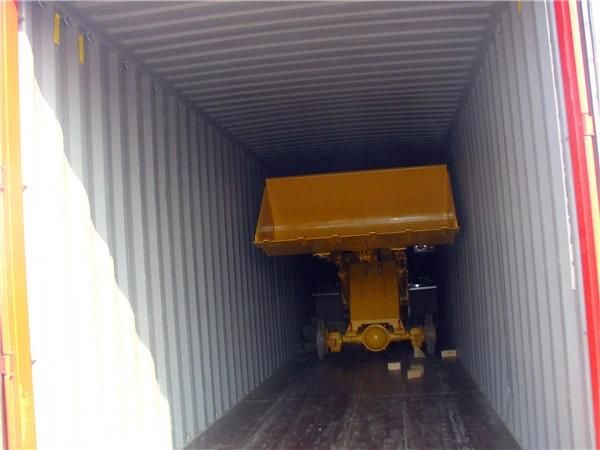

Packing

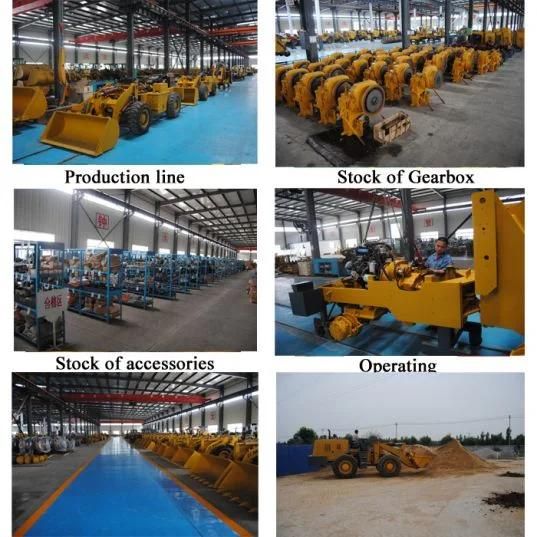

Company
