Road Grader 165HP Motor Grader with Cummins Engine Gr165 Three Ripper Shank
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：After Service,Online Contact , Spare Parts for Fre
- Warranty：One Year Warranty
- Certification：ISO, CE
- Condition：New
- Application：Highway, Construction Machine
- Transmission：Hydraulic
Base Info
- Model NO.：GR165
- Walking Mode：Wheeled
- Type：Small Grader
- Key Word：Motor Grader
- Reverse Speed：23km,H
- Working System Pressure：16MPa
- Engine：24 L
- Transport Package：Container
- Specification：8900*2625*3470 mm
- Trademark：SINOMADA
- Origin：Jiangsu, China
- Production Capacity：1000 Pieces,Per Month
Description
Basic Info.
Model NO. GR165 Walking Mode Wheeled Type Small Grader Key Word Motor Grader Reverse Speed 23km/H Working System Pressure 16MPa Engine 24 L Transport Package Container Specification 8900*2625*3470 mm Trademark SINOMADA Origin Jiangsu, China Production Capacity 1000 Pieces/Per MonthProduct Description

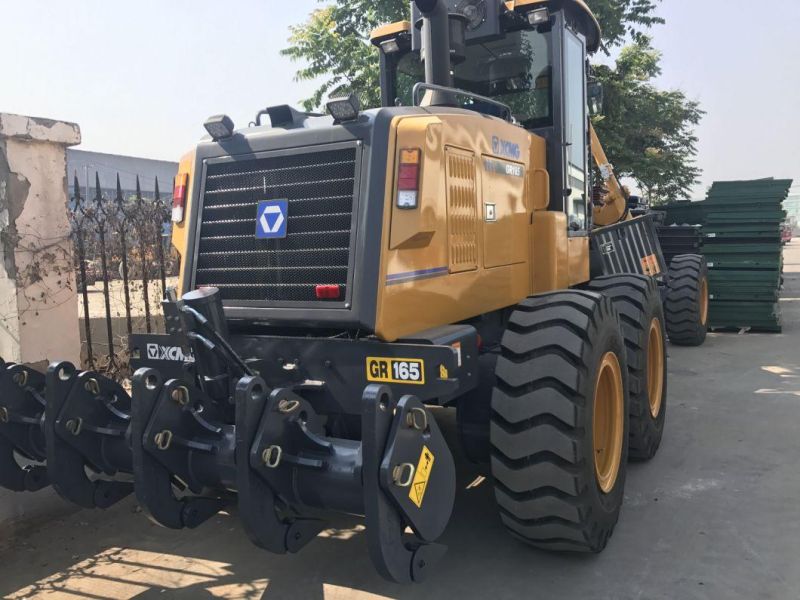

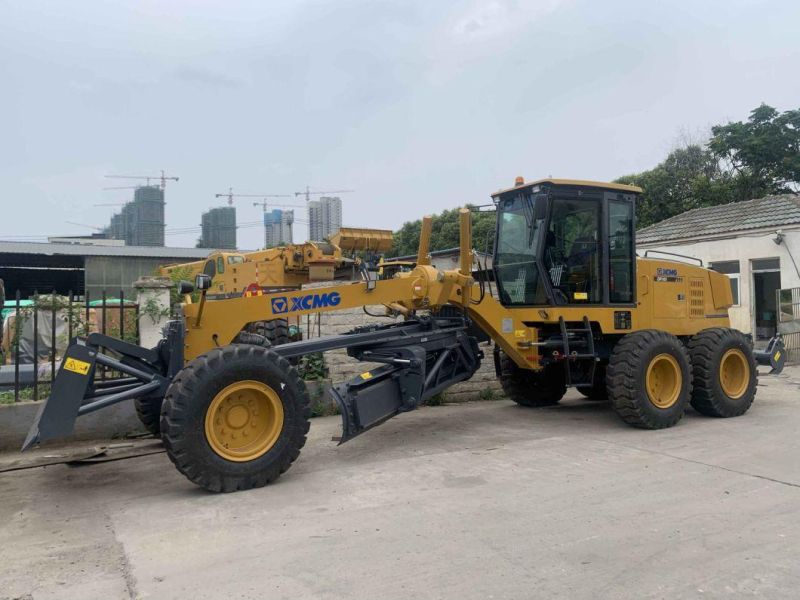

Moad Grader 165hp Motor Grader with Cummins Engine GR165 with Three ripper shank165hp motor grader with Cummins Engine GR165 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as road construction, airports, farmlands etc.
motor grader GR165 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
GR165 motor grader advantages and highlights:

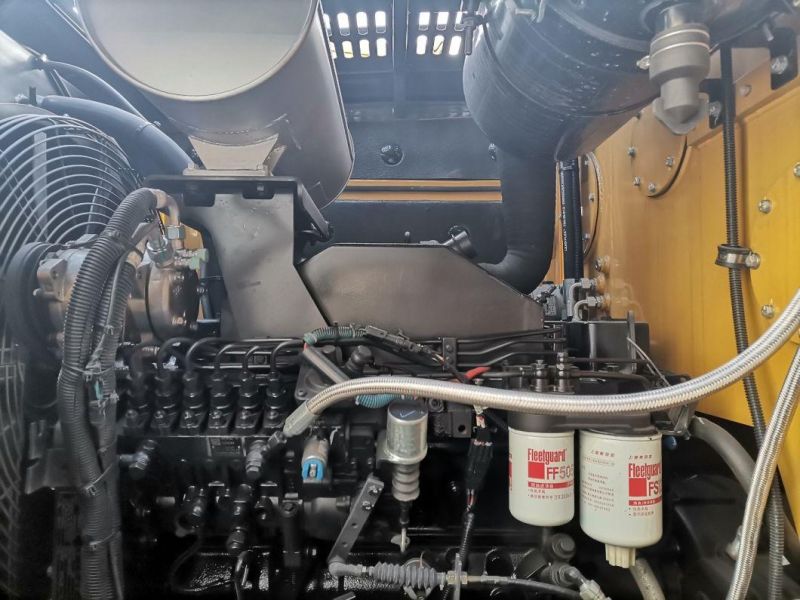

1. The GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

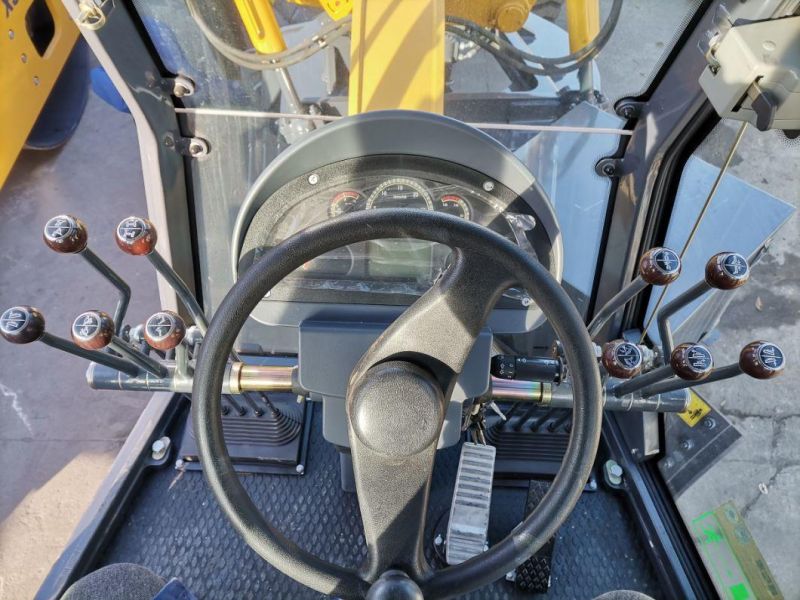

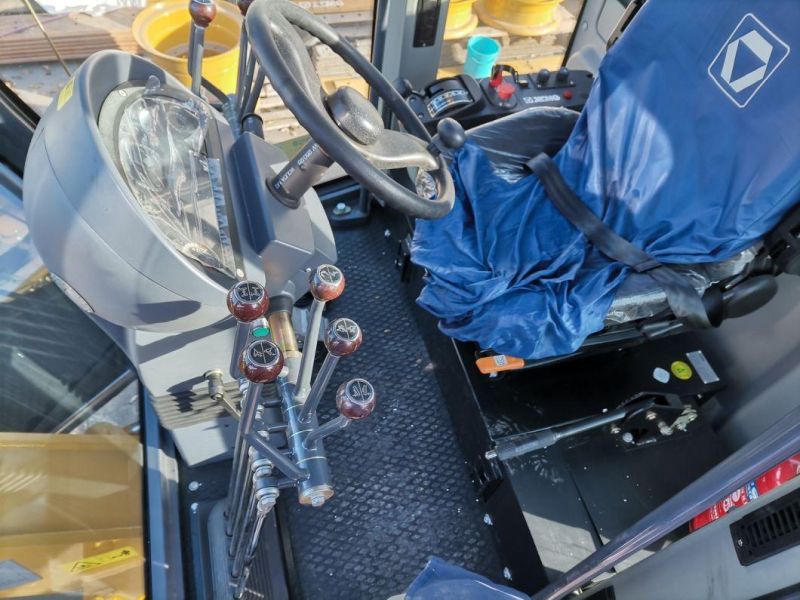

5. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
| Item | GR165 | ||
| Basic parameters | Engine model | 6BTA5.9-C180- | |
| Rated power/speed | 130kW/2200rpm | ||
| Overall dimension (standard) | 8900*2625*3470mm | ||
| Total weight (standard) | 15000kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |
| Reverse speed | 5,11,23km/h | ||
| Tractive effort f=0.75 | 77kN | ||
| Maximum gradeability | 0.25 | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3-1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°-70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3660*610mm | ||
| Oil filling amount | Coolant | 50L | |
| Fuel tank | 280L | ||
| Engine | 24L | ||
| Transmission | 38L | ||
| Hydraulic oil | 110L | ||
| Drive axle | 28L | ||
| Balancing box | 46 L |
