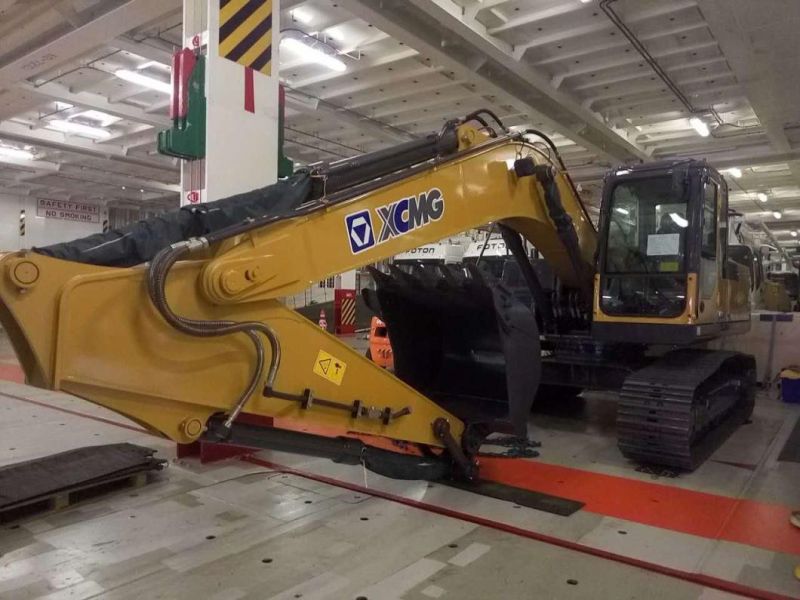

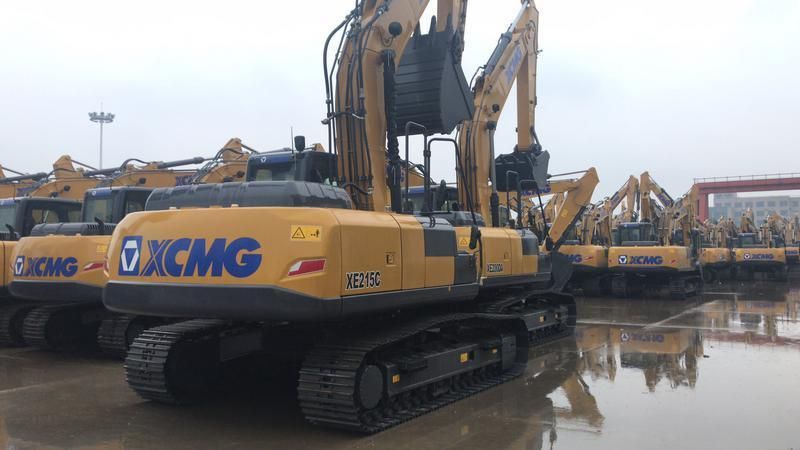

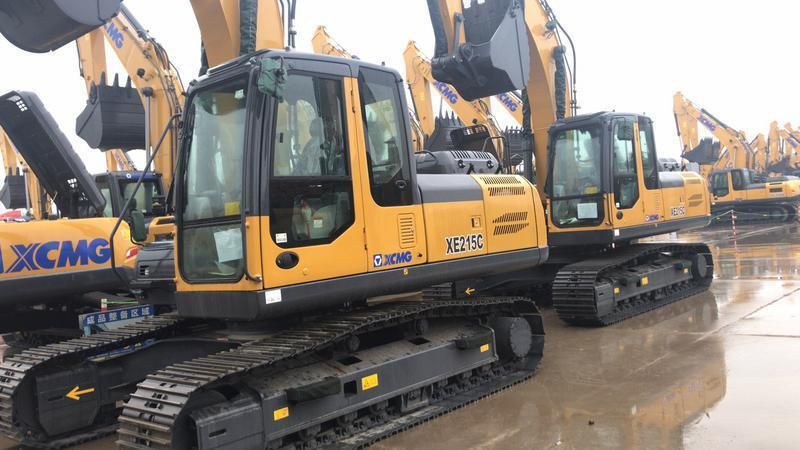

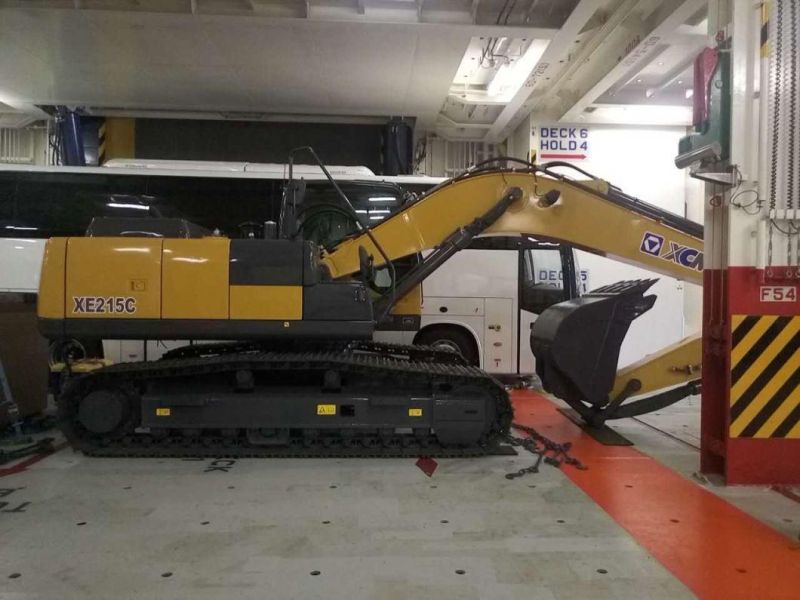

21t 1m3 Hydraulic Crawler Excavator Xe215c
Evangel Industrial (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Diesel
- Bucket Capacity：1m3
Base Info
- Model NO.：XE215C
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Engine：Isuzu Bb-6bg1trp
- Operating Weight：21900kg
- Transport Package：Nude Package
- Specification：ISO, CE
- Origin：Jiangsu, China
- HS Code：84295212
- Production Capacity：50units,Month
Description
Model
XE215C
Bucket capacity
m³
0.91
Standard bucket width
mm
Operating weight
kg
2,1500
Dimension (in transportation)
Overall length
mm
9,520
Overall width
mm
2,990
Overall height
mm
2,985
Min. ground clearance
mm
485
Engine
Model
BB-6BG1TRP
Total displacement
L
6.494
Rated output power
KW/rpm
106.5/1950
Digging performance
Max. digging height
mm
9,640
Max. dumping height
mm
6,800
Max. digging depth
mm
6,655
Max. vertical digging depth
mm
5,695
Max. digging radius
mm
9,925
Boom deflection angle: left/right
°
Min. slew radius
mm
3,530
Min. rear slew radius
mm
2,750
Bucket digging force
kn
138
Track type
Steel
Track width
mm
600
Bulldozing plate
Bulldozing plate (width)
mm
Bulldozing plate (height)
mm
Lifting distance (GL up/down)
mm
Hydraulic pump type
Piston pump×2
