• Model NO.：RG700G
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Rated Bucket Capacity：6m3
• Rated Power/Speed：226,2100 Kw,Rpm
• Tyre Size：26.5r25
• Maximum Breakout Force：220kn
• Total Weight：25500 Kgs
• Scraper Type：Tractor-Scraper
• Model：Wd12g310e221
• Transport Package：Container, RO-RO
• Specification：9455*3430&*3630
• Trademark：Raygoo
• Origin：Fujian, China
• HS Code：87059091
• Production Capacity：5000

Basic Info.

Model NO. RG700G Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Rated Bucket Capacity 6m3 Rated Power/Speed 226/2100 Kw/Rpm Tyre Size 26.5r25 Maximum Breakout Force 220kn Total Weight 25500 Kgs Scraper Type Tractor-Scraper Model Wd12g310e221 Transport Package Container, RO-RO Specification 9455*3430&*3630 Trademark Raygoo Origin Fujian, China HS Code 87059091 Production Capacity 5000

Product Description

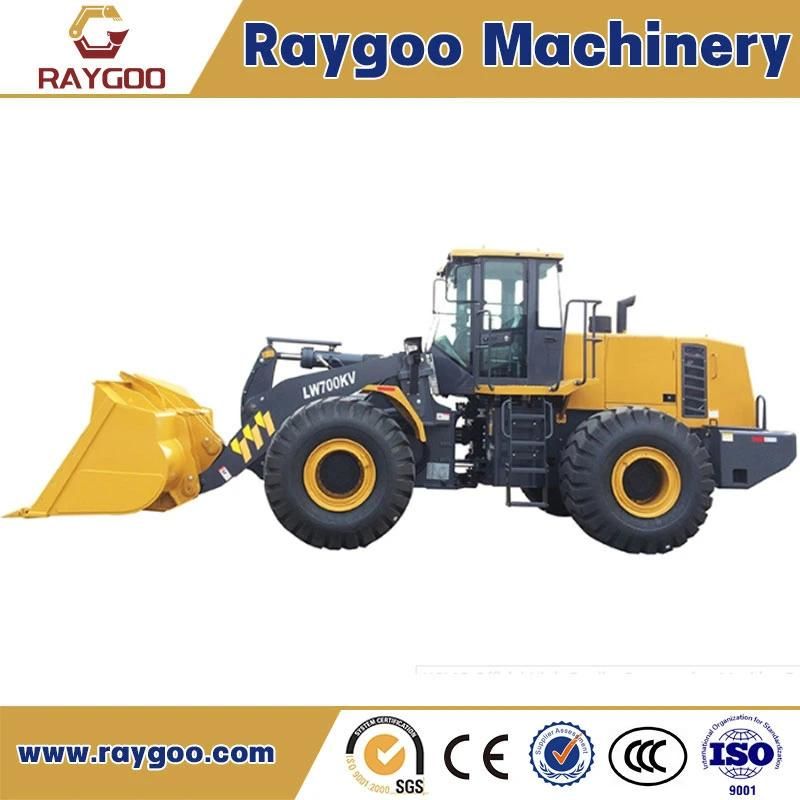

7 Ton Wheel Loader with Cummins engine & ZF drive axles

1. Specification:

Description	Unit	Parameter value
Wheel base	mm	3450
Tread	mm	2360
Dump clearance at maximum lift	mm	3515
Reach at maximum lift	mm	1388
Height of hinge at maximum lift height	mm	4780
Working height(fully lifted)	mm	6560
Overall machine dimension L×W×H	mm	9455×3430×3630
Rated operating load	kg	7000
Bucket capacity	m³	6
Machine weight	kg	25500
Max.breakout force	kN	150
Max.horse power	kN	220
Lifting time of boom	s	≤6.5
Total cycle time	s	≤11
Minimum turning radius (at tire center)	mm	5920
Articulation angle	°	±40
Gradeability	°	28
Tyre size		26.5R25
EngineModel		WD12G310E221
Rated Power/Speed	kW/rpm	226/2100
Travel Speed	km/h	0-38

2. Product description

Our wheel loader's Key elements choose international brands parts, such as original Cummins engine, ZF drive axles, Rexroth hydraulic valve and Rexroth brake element etc., to make sure perfect performance for our loaders, under strict quality management, the reliability of machine is therefore assured.

To ensure low maintenance cost and high reliability, we choose Wet multi-disc brake and full hydraulic brake system. The wet disc brake is completely enclosed, which efficiently prevents dirt from ingress and reduces wear and maintenance. It needs not to adjust the brake due to wear, hence the maintenance is further reduced. It is also unnecessary to adjust the new parking brake. The wet multi-disc brake has higher reliability and longer service life.

The brake system uses two independent hydraulic circuits and further improves reliability. If one of the circuits has failure, there will be a standby hydraulic system available. The full hydraulic brake means no air ingresses and no water condensation occurs in the system. Therefore no pollution, rust and freezing will be caused.

3. Advantages for our wheel loader:

(1) Power drive flexible suspension damping;
(2) Dual-pump combined technology, flow expanding steering, guide control;
(3) The frame of the high strength adapts to the heavy load condition;
(4) Working mechanism lightens the unloading impact greatly;
(5) Hydraulic wet brake ensures the safe and reliable operation and travelling;
(6) The adjustable instrument panel contributes to the best operation position;
(7) Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.

(8) Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
