• Model NO.：CSD
• Engine Type：Honda Gx35
• Power Kw(HP)：1.291.6)
• Weight Kgs(Lbs)：12.9(28.4)
• Dimension(L*W*H)：0.91m*0.68m*0.70m
• Blade Size：(1.2,1.8,2.4,3.0,3.7,4.5,4.9m )
• Warrenty：1 Year
• Voltage：220V
• Delivery Time：15 Days
• Transport Package：in Wooden Carton or Steel Frame Box
• Trademark：GEYO
• Origin：China
• HS Code：8479102100
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. CSD Engine Type Honda Gx35 Power Kw(HP) 1.291.6) Weight Kgs(Lbs) 12.9(28.4) Dimension(L*W*H) 0.91m*0.68m*0.70m Blade Size (1.2/1.8/2.4/3.0/3.7/4.5/4.9m ) Warrenty 1 Year Voltage 220V Delivery Time 15 Days Transport Package in Wooden Carton or Steel Frame Box Trademark GEYO Origin China HS Code 8479102100 Production Capacity 1000PCS/Month

Product Description

Surface Finishing Screed/hand-held screed is light and easy to handle. It's suitable for leveling slabs of all sizes and concrete from medium to high slump.
For leveling applications, It is designed to provide a consistent, even surface without any guide or supporting tube. This model offers the flexibility to choose from six lightweight, interchangeable profiles in lengths from 1.2 to 4.9 m

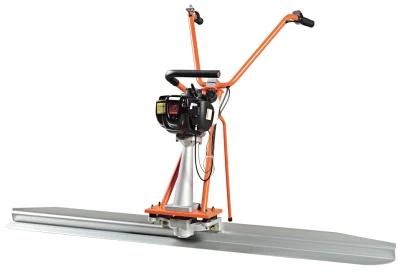

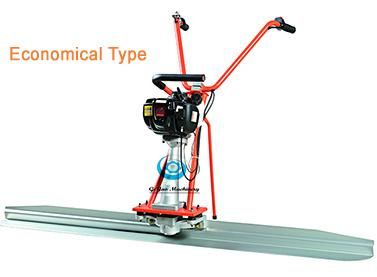

Gasoline Concrete Surface Finishing Screed


Features and Advantages:

1. Specially design, hardened aluminum  blade ensuring a smoother finish than conventional screeds.
   2.Ergonomically designed and 360°adjustable handles with comfortable grips
   3.Heavy rubber mounts to reduce the vibration level on the handle.
   4.The rounded ends of the blade make it easy to go around obstacles.
   5.The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
   6.One piece casting body easy connect to engine.


Specification:

Model	CSD-1	CSD-2	CSD-3
Engine Type	Chinese Petrol Engine	Robin EH035	Honda GX35
Power Kw(hp)	1.4(1.9)	1.2(1.6)	1.2(1.6)
Weight Kg(lbs)	12.7(28)	12.9(28.4)	12.9(28.4)



Blade Model	CSDB4	CSDB6	CSDB8	CSDB10	CSDB12	CSDB14	CSDB16
Blade Size m(ft)	1.2(4)	1.8(6)	2.4(8)	3.0(10)	3.7(12)	4.3(14)	4.9(16)
Weight Kg(lbs)	2.9(6.4)	4.4(9.6)	5.8(12.8)	7.3(16)	8.7(19.2)	10.2(22.4)	11.6(25.6)


Application Areas:

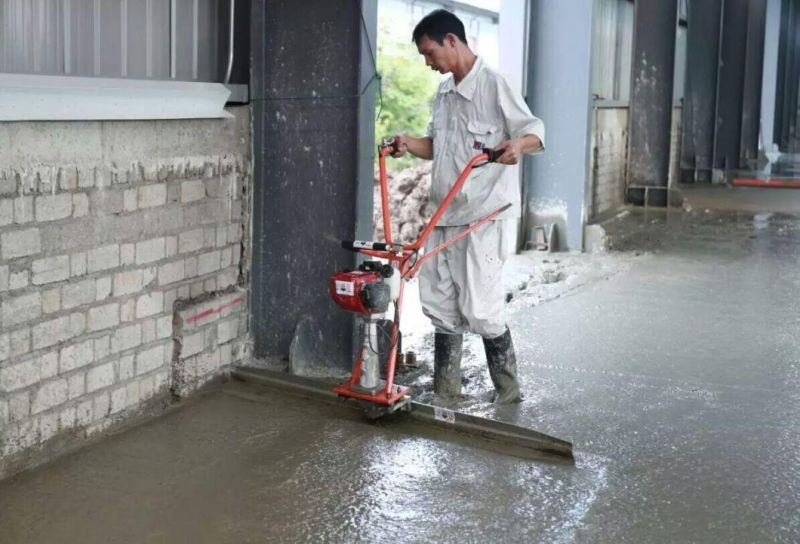

It is recommended to level concrete that has been vibrated with a poker. It's suitable for slabs of all sizes and concrete from medium to high slump. Common applications include floors, bridges, parking and harbors

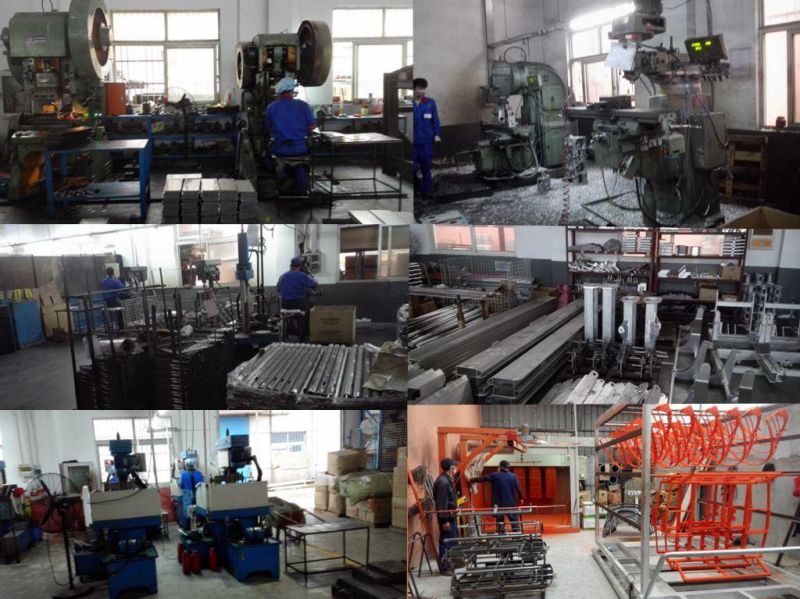

MACHINERY OPERATION PROCESSING

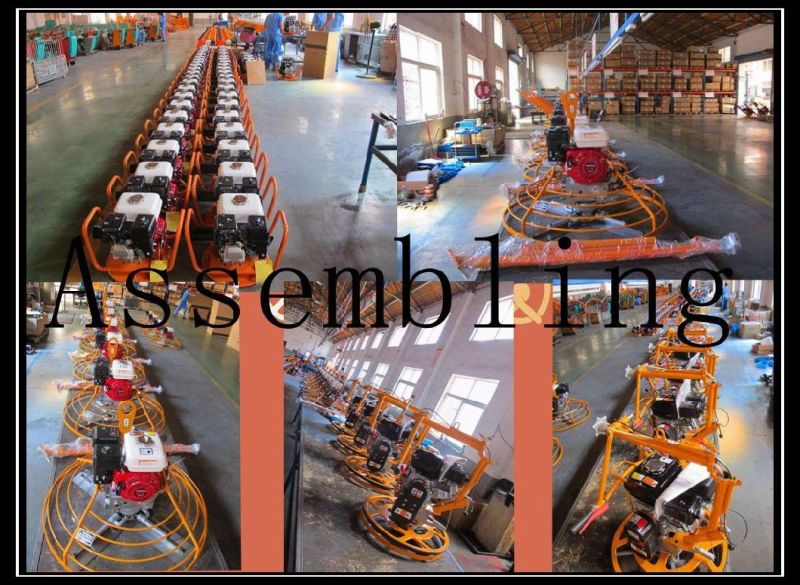

ASSEMBLING


PACKAGE


TRANSPORTATION


PERFORMANCE
