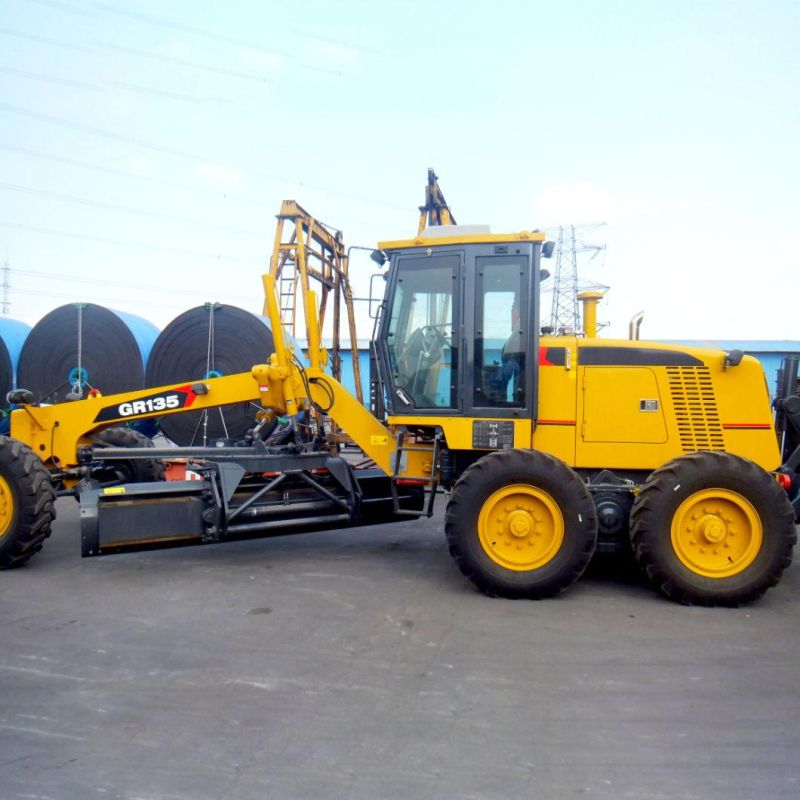

• Model NO.：Gr135
• Walking Mode：Wheeled
• Type：Small Grader
• Key Word：Motor Grader
• Transport Package：Roro
• Specification：8036*2380*3240mm
• Trademark：Sinomada
• Origin：Jiangxu, China
• Production Capacity：1000 Pieces,Per Month

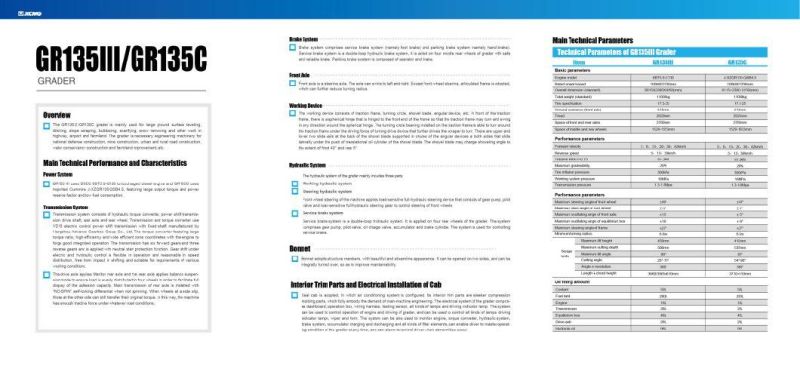

Basic specification

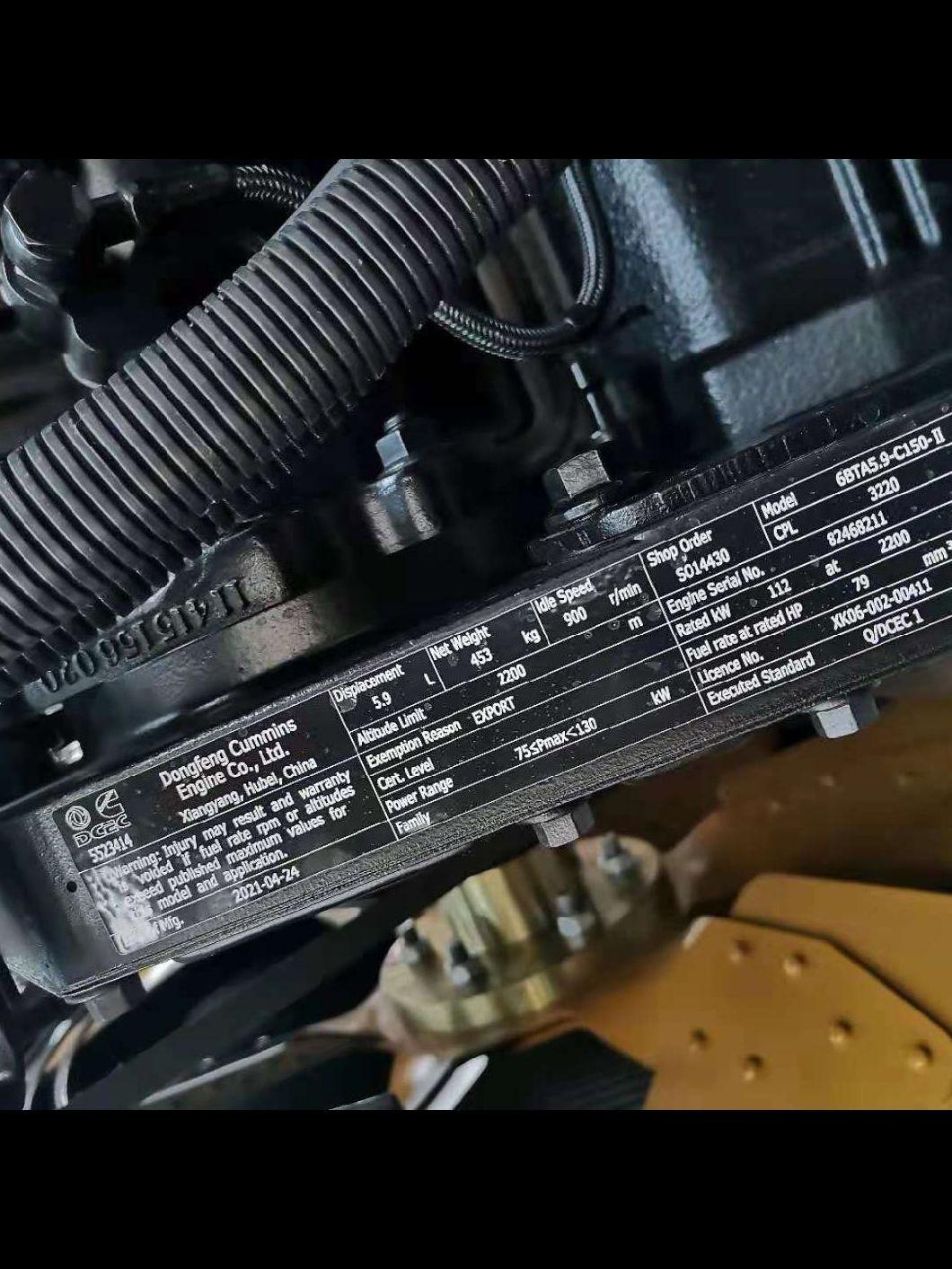

Engine model6BT5.9Rated power/speed100/2200kw/rpmDimension(LxWxH)8015×2380×3050mmOperating weight(Standard)11000kg

Performance specification

Travelling speed ,forward5,8,13,20,30,42km/hTravelling speed ,reverse5,13,30km/hTractive force(f=0.75)61.3KNMax. gradeability20%Tire inflation pressure300kPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±49°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box16Frame articulation angle±27°Min. turning radius using articulation6.6m

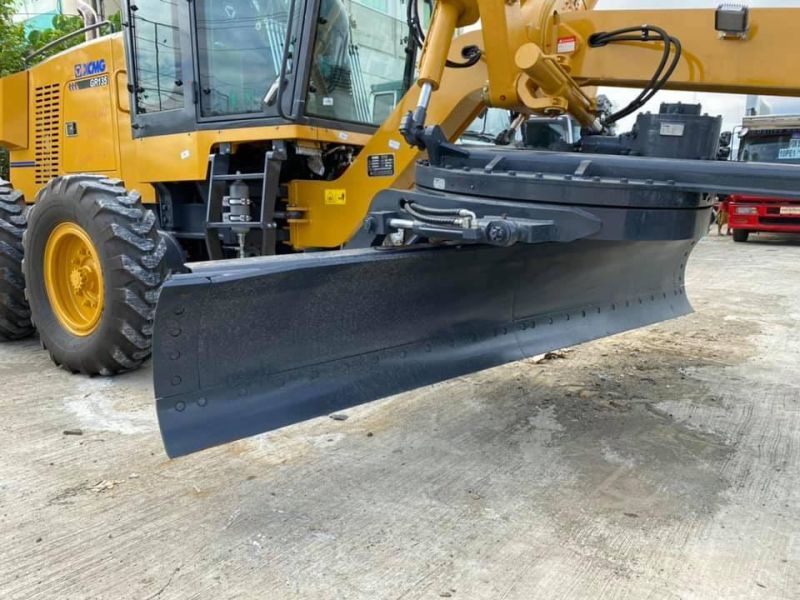

Biade

Maximum lift above ground410mmMaximum depth of cutting535mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3710×610mm
