Earth Moving Machinery Bulldozer 160HP Gty160 Small Track Bulldozers
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Type：Universal Type
- Transmission：Hydraulic - Mechanical Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：GTY160
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Lengthxwidthxheight：5140*3388*3032mm
- Ground Pressure：0.067MPa
- Track Shoe Width：510mm
- Transport Package：Roro,Container,Bulk
- Specification：17000KG
- Trademark：CHANGLIN
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product Description
- The machine features reasonable layout, excellent performance and advanced technology
- Higher engine power reserves efficiency ,bigger torque output ,lower fuel consumption ,while better reliability
- Hydraulic controlled drive,automatically speed regulation and non-stop gear shifting
- The final drive uses triangle Spline and tip lelief, crowned gear drive to enhance the balance and the stability of the load of transmission part
- The novel hexahedral cad offers excellent visibility, the powerful ventliation and unparalleled dust-free.
- Specification
Model GTY160 Length×Width×Height(mm) 5140×3388×3032 Operating weight (Kg) 17000 Ground pressure(Standard)(MPa) 0.067 Track shoe width (standard)(mm) 510 Traveling speed(km/h)-Forward 0~3.3/5.8/6.6 Traveling speed(km/h)-Reverse 0~4.3/7.6/12.5 Diesel engine WD10G178E25 Rated output(KW) 131

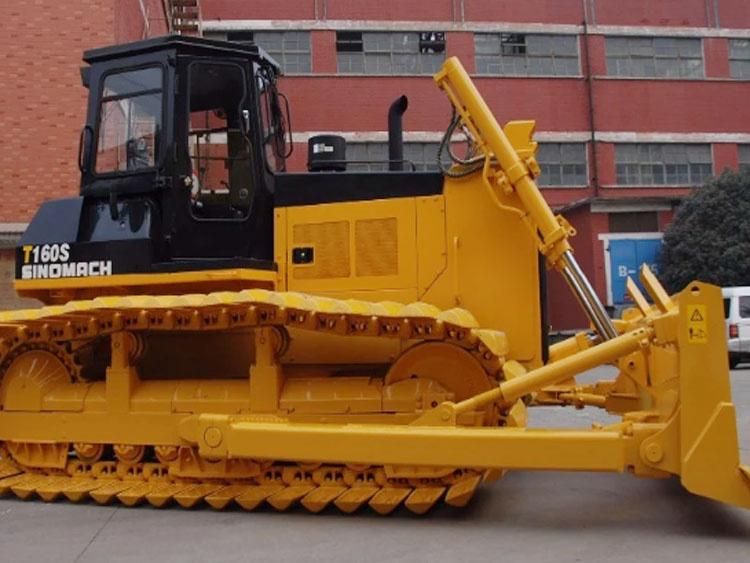

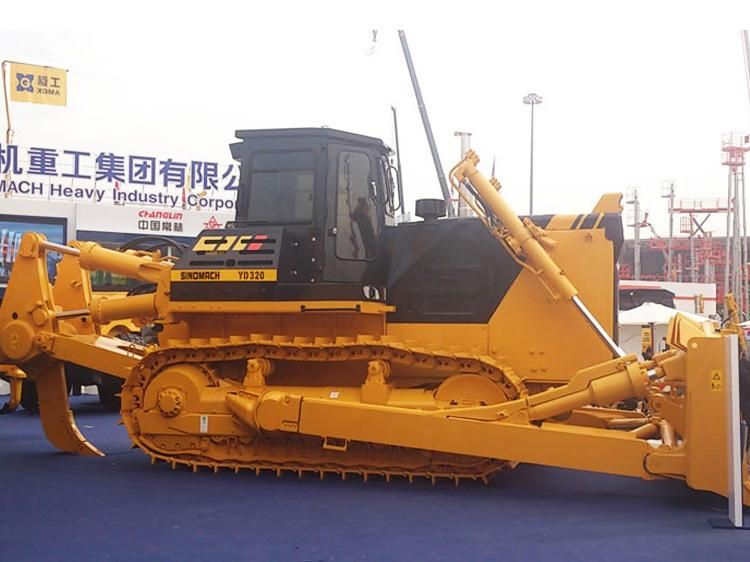

- Product Pictures
